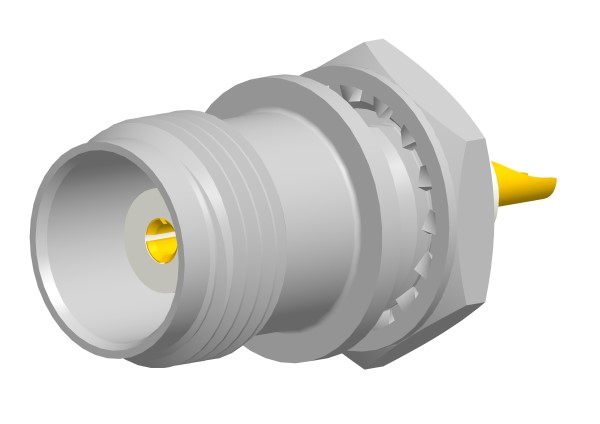

AMPHENOL RF 312301 TNC Threaded Connector
Amphenol RF's 31-2301 TNC connector is a miniature, threaded, weatherproof unit developed in the late 1950s. Featuring screw threads for mating, it offers a constant 50 Ω impedance and operates from DC to 11 GHz. Available in standard and reverse polarity interfaces, these connectors are ideal for commercial applications such as antennas, base stations, cable assemblies, and WLAN networks. They provide a threaded coupling interface ensuring stability in vibration-intensive environments.
AMPHENOL RF 312301 TNC Threaded Connector Specifications:
- Electrical Impedance: 50 Ω nominal
- Frequency Range: DC - 11 GHz
- VSWR: 1.3 max. @ DC - 11 GHz (straight), 1.35 max. @ DC - 11 GHz (right-angle)
- RF Leakage: 60 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: Center contact: ≤ 1.5 mΩ, Outer contact: ≤ 0.2 mΩ, Braid to body: ≤ 0.1 mΩ
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: Maximum 0.18 dB @ 9 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 7/16 threaded coupling (MIL-STD-348)
- Coupling Torque: 4.1 / 6.1 in-lbs (46 / 69 N-cm), recommended
- Coupling Nut Retention Force: 101 lbs (450N) min
- Braid/Jacket Cable Affixment: Hex crimp or screw-threaded clamps
- Durability (Matings): 500 cycles minimum
- Temperature Range: -65°C to +165°C
- Material (Male Contact): Brass, gold plated
- Material (Female Contact): Beryllium copper or phosphor bronze, silver or gold plated
- Material (Insulator): PTFE, copolymer of styrene, glass TFE
