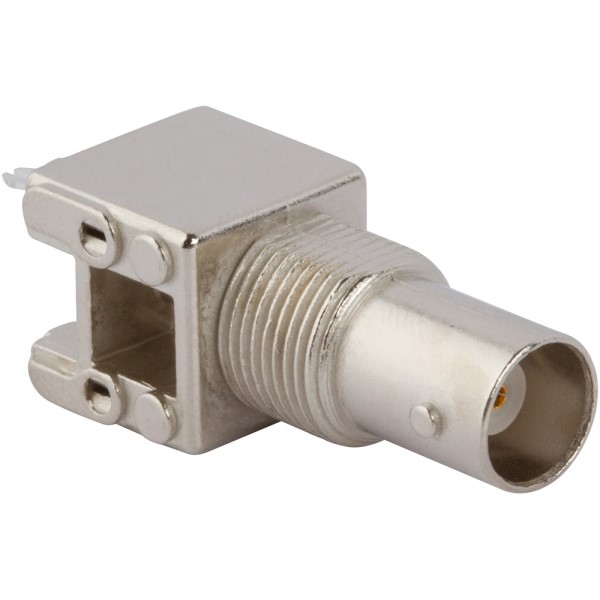

AMPHENOL RF 3156331010 BNC Connector
Amphenol's 31-5633-1010 BNC connector is a miniature, lightweight RF connector developed for quick and reliable connections. Featuring a bayonet coupling mechanism, it allows for easy mating and unmating with a quarter-turn of the coupling nut. Designed to accommodate a wide range of RG and industry-standard coaxial cables, this connector is commonly used in applications such as test instrumentation, medical equipment, antennas, base stations, and cable assemblies. Amphenol offers both 50Ω and 75Ω BNC connectors to meet diverse impedance matching requirements, ensuring low signal distortion and optimal performance. Military-grade connectors are produced to MIL-C-39012 specifications, while commercial-grade connectors are easily identifiable with the 'RFX' designation.
AMPHENOL RF 3156331010 BNC Connector Specifications:
- Impedance: 50 Ω nominal
- Frequency Range: DC - 4 GHz (usable to 11 GHz)
- VSWR: 1.3 max. @ DC - 4 GHz (straight)
- RF Leakage: 55 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: {'Center Contact': '≤ 1.5 mΩ', 'Outer Contact': '≤ 0.2 mΩ', 'Braid to Body': '≤ 0.1 mΩ'}
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum 0.2 dB max. @ 3 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 2-stud bayonet lock coupling (MIL-STD-348)
- Coupling Torque: 0.6 / 2.5 in-lbs (7 / 28 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min.
- Center Contact Retention Force: ≥ 6.1 lbs (27N)
- Body and Outer Contacts: Brass, nickel plated
- Male Contact: Brass, gold plated
- Female Contact: Beryllium copper or phosphor bronze, gold or silver plated
- Insulator: PTFE, copolymer of styrene
