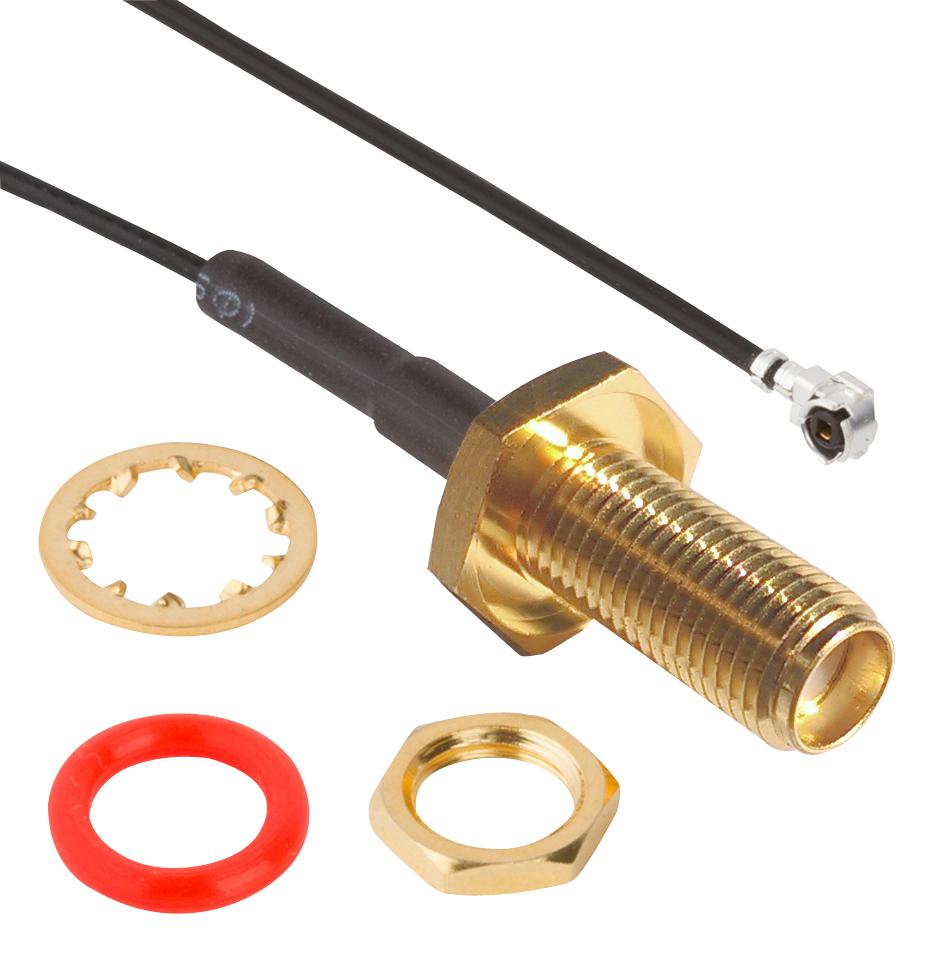

AMPHENOL RF 336320120150 SMA to AMC Cable Assembly
Amphenol RF's SMA to AMC cable assemblies provide robust connectivity solutions for a wide range of applications. Featuring improved SMA connector designs, these assemblies offer enhanced performance and versatility. Available in both IP-67 (for harsh environments) and Non IP-67 (for cost-effective solutions) configurations, they cater to industries like WLAN, M2M communications, industrial process control, and test and measurement. The assemblies utilize industry-standard designs and accommodate thicker panels, ensuring compatibility and reliability.
AMPHENOL RF 336320120150 SMA to AMC Cable Assembly Specifications:
- Impedance: 50Ω nominal
- Frequency Range: DC - 6 GHz
- Center Contact Resistance: 20 mΩ Max
- Outer Contact Resistance: 10 mΩ Max
- Insulation Resistance: 500 mΩ Min
- DWV: 200 VAC for 1 Min (No line or insulation breakdown)
- Durability AMC: 30 Mating Cycles
- Durability SMA: 500 Mating Cycles
- Temperature Range: -40° to +90°C
- Mating Demating Force: 10N Typical – 20N Max
- Connector Body: Phosphor bronze, silver plated (0.76u Min.) Brass, gold plate over nickel (50u) over copper (1u Min.) over copper (50u)
- Connector Center Contact Male Pin: Brass, gold plate (3u) over nickel Phosphor bronze, gold plated (0.076u min.)
- Connector Insulator: PBT PTFE
- Cable Jacket: FEP
- Cable Dielectric: FEP
- Cable Center Conductor: Annealed copper wire stranded, silver plated
- Cable Outer Conductor: Annealed copper wire braid, tin plated
- Length Code 0050: 50mm
- Length Code 0100: 100mm
- Length Code 0150: 150mm
- Length Code 0200: 200mm
- Length Code 0250: 250mm
- Length Code 0300: 300mm
Buy the 336320-12-0150 AMPHENOL RF SMA to AMC Cable Assembly | myMectronic
Securely purchase the AMPHENOL RF 336320-12-0150 SMA to AMC cable assembly online for reliable connectivity.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 336320120150?
You can click on the BUY or RFQ button to purchase 336320120150 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 336320120150?
You can download the 336320120150 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 336320120150?
AMPHENOL RF
