AMPHENOL RF 826672 N Jack Connector
This high-performance 5G wireless connector supports DC to 18 GHz frequency range with excellent impedance matching of 50 ohms. Crafted with durable brass body, silver-plated BeCu contacts, and PTFE insulators, it ensures reliable signal integrity and mechanical durability with at least 500 cycles. The connector withstands temperatures from -65°C to 165°C and features a compact design suitable for semi-rigid cable assemblies. Ideal for modern telecommunication systems, it offers low VSWR, high dielectric withstand voltage, and superior intermodulation performance for dependable 5G and high-speed data applications.
AMPHENOL RF 826672 N Jack Connector Specifications:
- Material: Brass body with white bronze plating
- Contact Material: BeCu with silver plating
- Insulators: PTFE, natural
- Shrink Tube: Polyolefin, black
- Impedance: 50 Ohm
- Frequency Range: DC to 18 GHz
- VSWR: 1.065 MAX. DC-6 GHz, 1.12 MAX. 6-12 GHz, 1.20 MAX. 12-18 GHz
- Dielectric Withstanding Voltage: 1000 VRMS, MIN.
- Intermodulation 3rd Order: -166 dBc @2X20W
- Durability: 500 cycles MIN.
- Temperature Range: -65°C to 165°C
- Connector Dimensions: Detailed in internal drawings, includes outer conductor and dielectric
- Packaging: Single pack with markings including product and date code
- Assembly: Includes stripping, soldering, and pressing components for secure connection

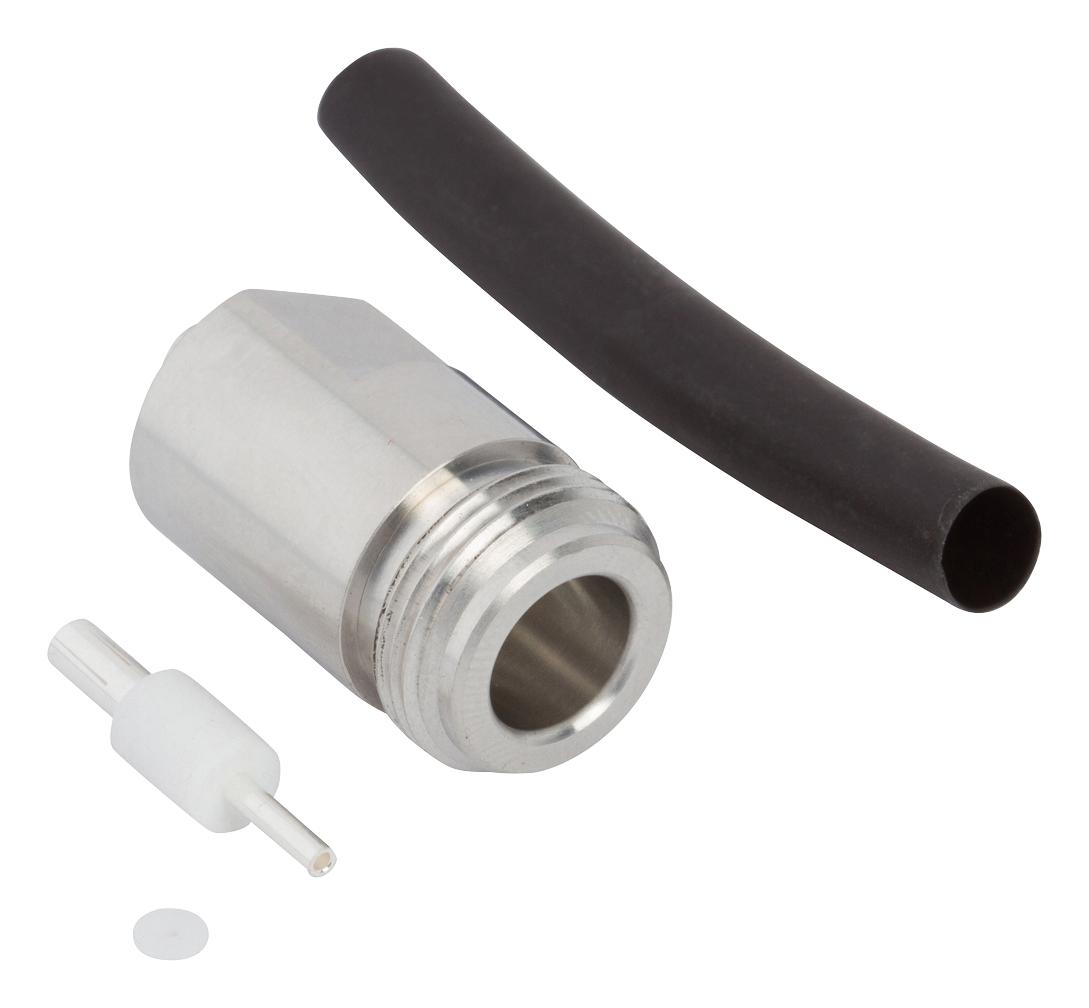

Buy the Amphenol Series 82-6612 N Jack: 826672
Get the high-performance N Jack connector designed for 5G and high-speed wireless applications. Crafted with durable materials such as brass, BeCu, and PTFE, it offers excellent electrical performance, low VSWR, and robust mechanical durability. Its impedance of 50 ohms and wide frequency range from DC to 18 GHz make it ideal for demanding telecom and data transmission systems. Suitable for semi-rigid cables, the connector ensures secure soldered connections, withstands high temperatures, and supports extensive cycling. Purchase online now for dependable telecom equipment performance.
Order your Amphenol Series 82-6612 N Jack 5G connector today and ensure reliable, high-speed data transmission for your modern telecommunication systems.
