AMPHENOL RF FA1NESJC046 FAKRA SMB Connector
This product is a high-performance FAKRA SMB connector designed for automotive telematics and RF communication systems, capable of operating up to 4 GHz. It features multiple mechanical and color coding options for easy identification, provides reliable electrical performance, and meets stringent automotive standards. The connector's robust plastic housing includes locking features, ensuring minimum 100 mating cycles with excellent environmental resilience. Compatible with various coaxial cables including RG-58, RG-174, and RG-316, it supports diverse automotive RF applications such as GPS, satellite radio, and vehicular internet. Designed for PCB and edge mounting, it offers versatility in telematics module integration.
AMPHENOL RF FA1NESJC046 FAKRA SMB Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC - 4 GHz
- VSWR: 1.40 max. at 1 GHz, 1.50 max. at 4 GHz
- Insertion Loss: 0.3 dB max. from DC - 3 GHz
- Insulation Resistance: >= 1000 MΩ
- Center Contact Resistance: <= 10 mΩ
- Dielectric Withstanding Voltage: > 1000 VRMS
- Durability (matings): Minimum 100 cycles
- Engagement Force (Plastic Housing): Approximately 20 N
- Disengagement Force (Plastic Housing): Approximately 12 N
- Cable Retention Force: >= 20 N
- Operating Temperature Range: -55°C to +125°C
- Vibration: MIL-STD-202, Method 204
- Shock: MIL-STD-202, Method 213
- Materials: Nylon 6/6, PBT+15%GF, Beryllium Copper, Brass, Copper, TFE
- Plating: Gold (Center Contact), Nickel (Body, Barrel, Ferrule)

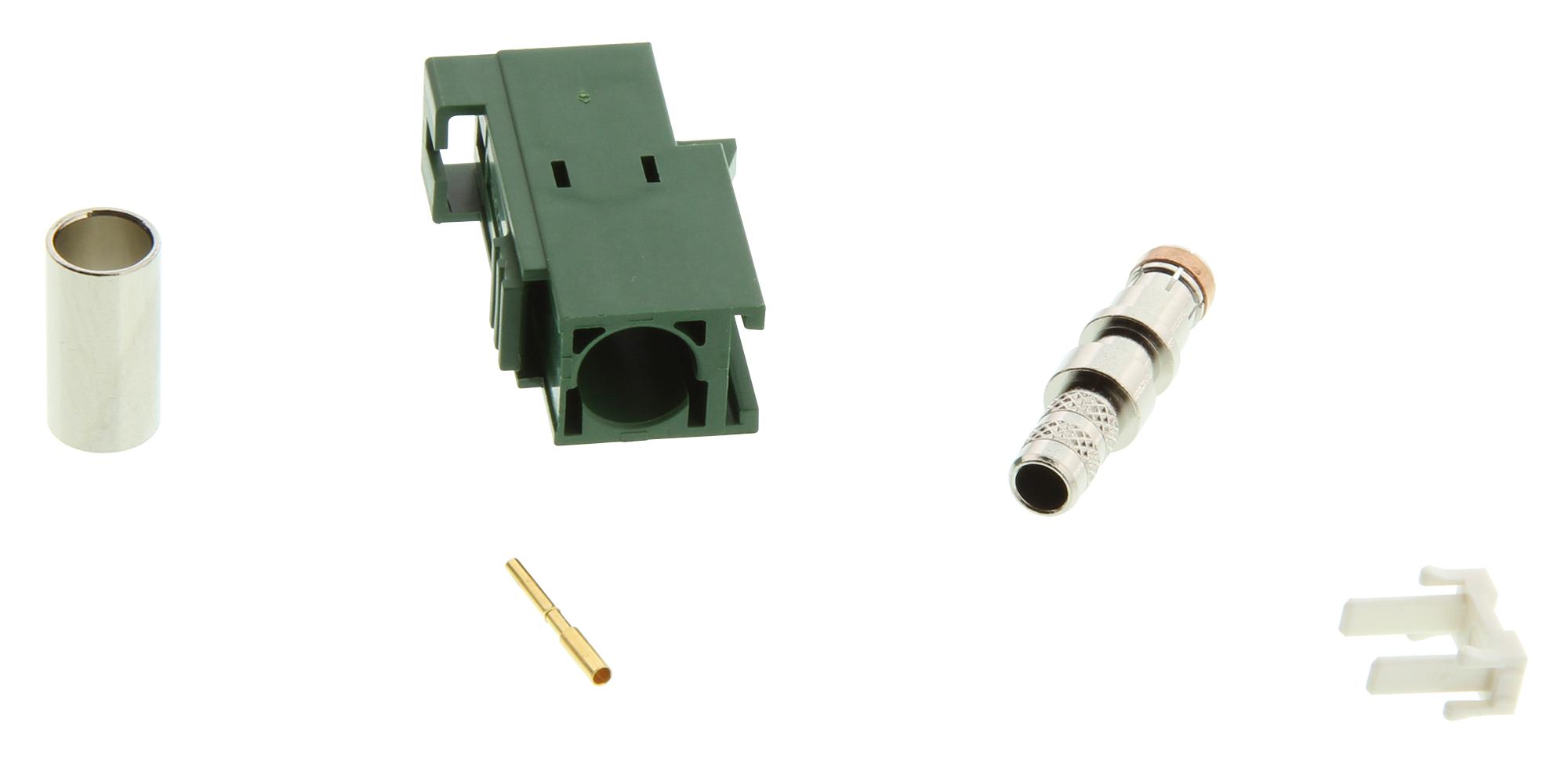

Buy the Buy Amphenol FAKRA SMB Part Number FA1NESJC046 Online
Purchase the Amphenol FAKRA SMB connector FA1NESJC046 online to ensure your automotive telematics and RF systems operate reliably up to 4 GHz. This connector offers excellent environmental resistance, color-coded identification, and robust locking features. Compatible with multiple coaxial cables such as RG-58, RG-174, and RG-316, it suits GPS, satellite radio, vehicular internet, and diagnostics. Designed for PCB and edge mounting, it ensures easy installation and long-term durability in demanding automotive environments.
Buy Amphenol FA1NESJC046 now and experience unmatched reliability and high-frequency performance for automotive RF communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF FA1NESJC046?
You can click on the BUY or RFQ button to purchase FA1NESJC046 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part FA1NESJC046?
You can download the FA1NESJC046 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of FA1NESJC046?
AMPHENOL RF
