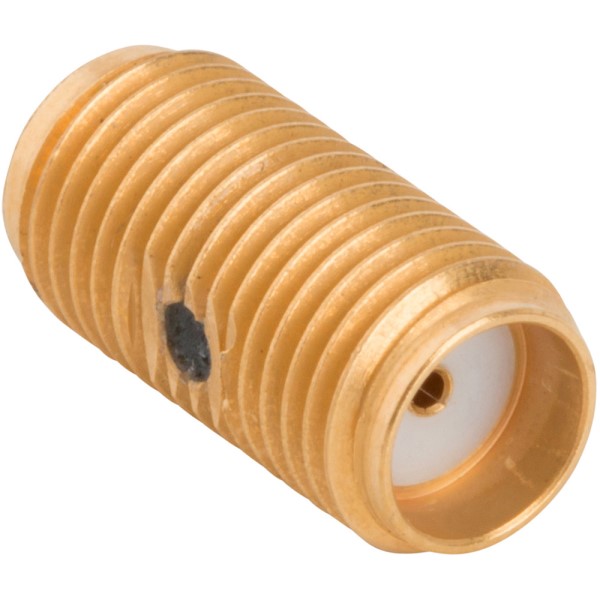

AMPHENOL RF 9019217 SMA Connector
Amphenol's 901-9217 SMA connector is a semi-precision, subminiature unit offering excellent electrical performance from DC to 18 GHz. Utilizing a threaded interface and stainless steel construction, this connector provides broadband performance and mechanical durability. Ideal for phase array radar, test equipment, and instrumentation requiring phase matching techniques, the 901-9217 is available in both standard and reverse polarity configurations to prevent mismating. It is constructed to meet MIL-C-39012 and CECC 22110/111 specifications, ensuring compatibility across manufacturers.
AMPHENOL RF 9019217 SMA Connector Specifications:
- Impedance: 50 Ω
- Frequency Range (semi-rigid cable): DC - 18 GHz
- Frequency Range (flexible cable): DC - 12.4 GHz
- RF Leakage (semi-rigid cable): 100 dB-f minimum @ 3 GHz
- RF Leakage (flexible cable): 60 dB minimum @ 3 GHz
- Voltage Rating (semi-rigid): ≤ 500 Vrms
- Voltage Rating (flexible): ≤ 335 Vrms
- Contact Resistance (center): ≤ 2 mΩ
- Contact Resistance (outer): ≤ 2 mΩ
- Contact Resistance (braid to body): ≤ 0.5 mΩ
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss (maximum): .03 √ f(GHz)
- Dielectric Withstanding Voltage (semi-rigid): 1,500 Vrms
- Dielectric Withstanding Voltage (flexible): 1,000 Vrms
- Mating: .250-36 threaded coupling
- Coupling Torque (max): 15 in-lbs (22 / 170 N-cm)
- Coupling Torque (recommended): 7 / 10 in-lbs (80 / 110 N-cm)
- Coupling Nut Retention Force: 100 in-lbs (300 N-cm) min
- Material (center contact): Beryllium copper, gold plated
- Material (other metal parts): Non-magnetic stainless steel
- Material (insulator): PTFE (ASTM D1457)
- Material (gasket): Silicone rubber (MIL-R-5847 and ZZ-R-765)
- Military Standard: MIL-C-39012, MIL-C-83517
