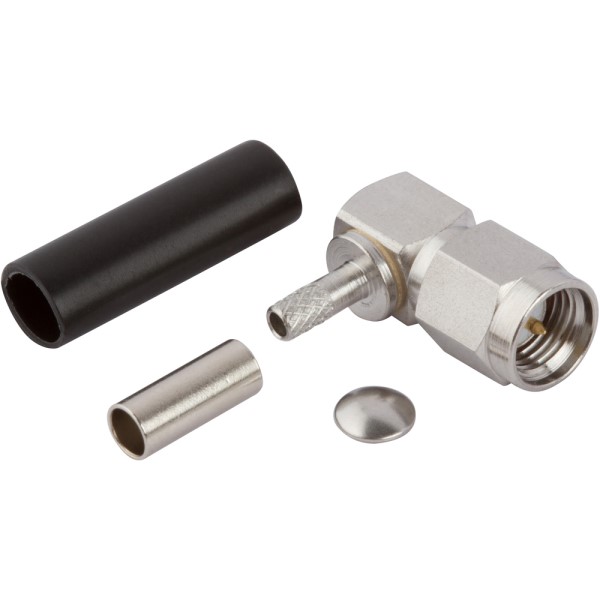

AMPHENOL RF 90195313SF SMA Angle Plug Connector
The Amphenol 901-9531-3SF SMA angle plug connector is a critical component in RF systems, providing a 90-degree angle for flexible routing and space-saving designs. It's commonly used in telecommunications, aerospace, and military applications where reliable high-frequency signal transmission is required. Proper installation involves careful stripping of the cable, flaring the braid, soldering the center contact, and crimping the ferrule to ensure a secure and low-loss connection. The connector's robust construction and precise dimensions contribute to its durability and performance in demanding environments.
AMPHENOL RF 90195313SF SMA Angle Plug Connector Specifications:
- Assembly Instructions: C53 SMA
- Connector Type: SMA Plug Angle
- Cable Type: Flexible Cable
- Stripping Dimensions: See table in datasheet
- Hex Crimp Data: See table in datasheet
- Tool: 227-1221-11 CTL-1
- Cavity: A
- Material: Brass
- Solder: SN60-40 rosin core
- Contact: Center contact should be visible through soft solder access hole
Buy the 901-9531-3SF AMPHENOL RF SMA Angle Plug Connector | myMectronic
Purchase the Amphenol 901-9531-3SF SMA Angle Plug Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 90195313SF?
You can click on the BUY or RFQ button to purchase 90195313SF from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 90195313SF?
You can download the 90195313SF datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 90195313SF?
AMPHENOL RF
