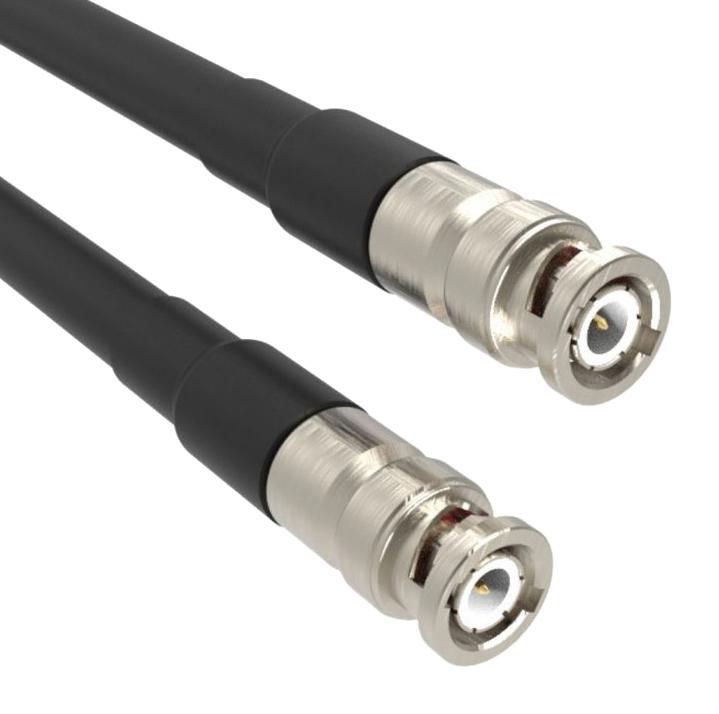

AMPHENOL RF 095850279M100 BNC Cable Assemblies
The BNC UltraFlex Cable Assemblies offer high-performance, 50 ohm impedance RG-58, RG-174, RG-400 LMR-UF coaxial cables ideal for test, measurement, industrial connectivity, and wireless applications. These assemblies feature quick bayonet coupling connectors for easy mating and reliable electrical performance up to 3 GHz. Available in standard lengths up to 30 meters, they are suitable for long-distance, antenna, radar, GPS, and wireless communication systems. Made from machined brass and diecast zinc with nickel plating, they deliver low attenuation and high durability in various environmental conditions.
AMPHENOL RF 095850279M100 BNC Cable Assemblies Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC to 3 GHz
- Mating Cycles: Minimum 500
- Temperature Range: -40°C to 85°C
- RoHS Compliance: Yes
- Body Material: Brass, Nickel Plated
- Female Contact Material: Beryllium Copper, Gold Plated
- Male Contact Material: Brass or Beryllium Copper, Gold Plated
- Insulator Material: PTFE
- Standard Lengths: 12 inches (304.8 mm), 18 inches (457.2 mm), 24 inches (610 mm), 36 inches (914.4 mm), 48 inches (1219.2 mm), 60 inches (1524 mm), 72 inches (1828.8 mm), 9.84 inches (250 mm), 19.69 inches (500 mm), 29.53 inches (750 mm), 39.37 inches (1000 mm), 49.21 inches (1250 mm), 59.06 inches (1500 mm), 78.74 inches (2000 mm), 118.11 inches (3000 mm)
Buy the Buy Amphenol RF BNC UltraFlex Cable Part Number 095850279M100 Online
Discover the high-performance BNC UltraFlex Cable Assemblies from Amphenol RF, designed for reliable connectivity in test, measurement, wireless, and industrial applications. Featuring 50 ohm impedance and durable brass and zinc construction with gold and nickel plating, these assemblies ensure excellent electrical performance up to 3 GHz. Available in lengths up to 30 meters, they are suited for long-distance antenna, radar, GPS, and wireless systems. Enjoy easy mating with bayonet connectors and proven durability through 500+ mating cycles. Purchase online now for dependable, low-loss RF connections.
Get Amphenol RF BNC UltraFlex Cable Part Number 095850279M100 today—built for precision, flexibility, and long-lasting performance in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095850279M100?
You can click on the BUY or RFQ button to purchase 095850279M100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095850279M100?
You can download the 095850279M100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095850279M100?
AMPHENOL RF
