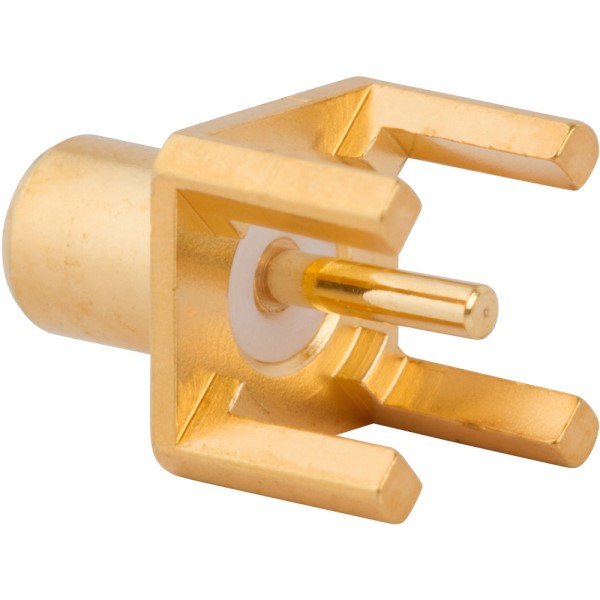

AMPHENOL RF 903409J53P SMB Connector
Amphenol’s 903-409J-53P SMB connector is a sub miniature interface developed in the 1960s, known for its snap-on coupling. Conforming to MIL-C-39012 and MIL-STD348, it provides broadband capability through 10 GHz with a low-cost design. Applications include automotive, base stations, cable assemblies, instrumentation, PC/LAN, and test and measurement systems. The connector offers quick connect/disconnect, various plating options (nickel, gold, and tin), and utilizes die cast components for a robust and reliable connection.
AMPHENOL RF 903409J53P SMB Connector Specifications:
- Impedance: 50 Ω
- Frequency range: DC - 4 GHz (usable to 10 GHz)
- VSWR: 1.2 max. @ DC - 4 GHz, 1.5 max. @ 4 - 10 GHz
- RF-leakage: 55 dB minimum @ 1 GHz
- Voltage rating: ≥ 250 Vrms
- Contact resistance: {'center contact': '≤ 6 mΩ', 'outer contact': '≤ 2.5 mΩ', 'braid to body': '≤ 1 mΩ'}
- Insulation resistance: 5,000 MΩ minimum
- Insertion loss: maximum 0.3 dB @ 1.5 GHz
- Dielectric withstanding voltage: 1,000 Vrms
- Mating: Snap-on coupling (MIL-STD-348)
- Engagement force: ≤ 14.2 lbs (63N)
- Disengagement force: ≥ 1.8 lbs (8N)
- Durability: 500 cycles minimum
- Temperature range: -65°C to +165°C
- Material: {'Body and outer contacts': 'brass or zinc alloy (ASTM-B86-71), gold or nickel plated', 'Male contact': 'Brass, gold plated', 'Female contact': 'Beryllium copper or phosphor bronze, gold plated', 'Crimp ferrule': 'Copper or brass, nickel or gold plated', 'Insulator': 'PTFE'}
