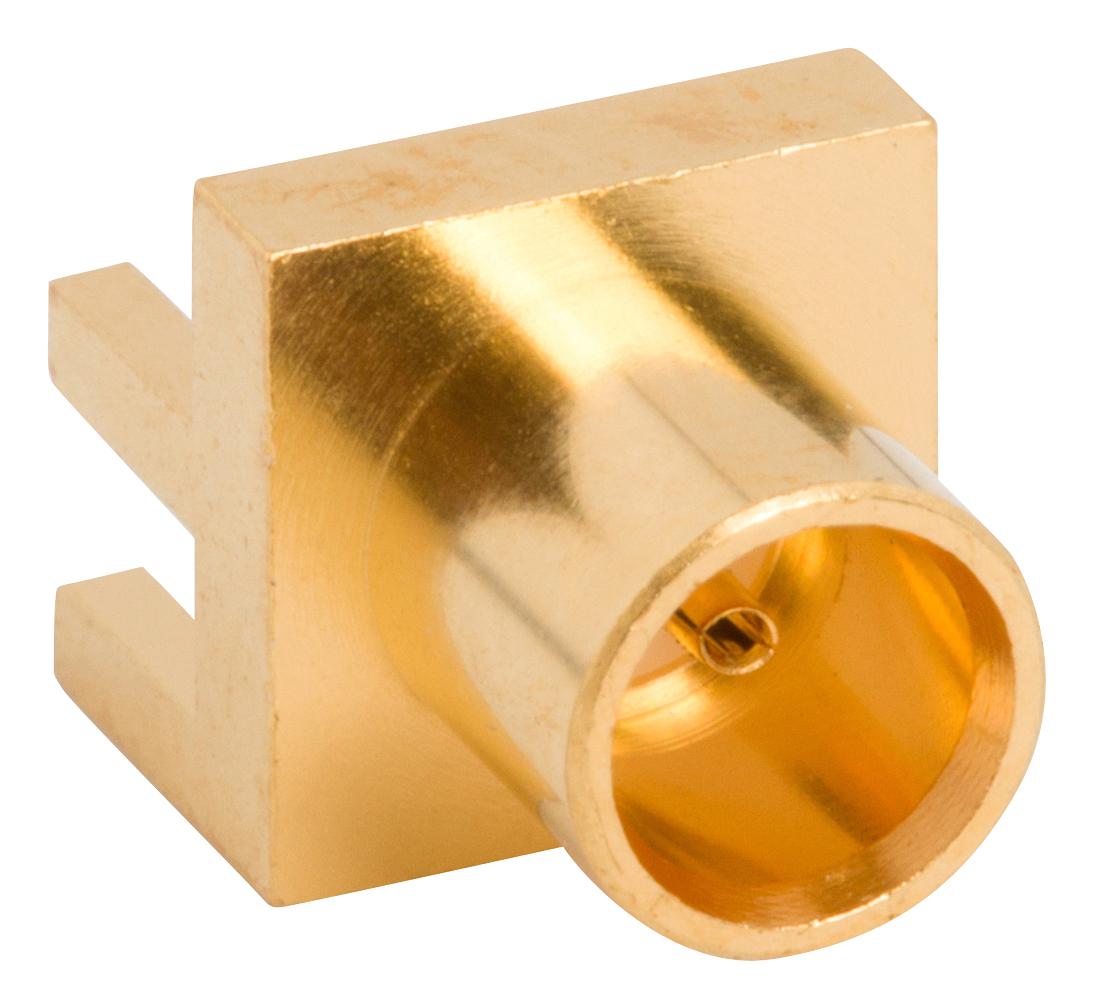

AMPHENOL RF 919426J71P12G RF Coaxial Connector
This high-performance RF coaxial connector features a brass body with gold plating and a beryllium copper contact also gold plated, ensuring excellent electrical conductivity and corrosion resistance. Designed to operate within a frequency range of DC to 12 GHz, it provides impedance of 75 ohms and a maximum VSWR of 1.22 at 20 dB. Capable of withstanding voltages up to 500 VRMS and enduring over 500 mechanical cycles, it is suitable for demanding RF applications in temperatures from -65°C to +165°C. Packaged as a single unit with marking for easy identification.
AMPHENOL RF 919426J71P12G RF Coaxial Connector Specifications:
- Body Material: Brass with gold plating
- Contact Material: Beryllium copper with gold plating
- Insulator Material: PTFE
- Impedance: 75 ohm
- Frequency Range: DC to 12 GHz
- VSWR: 1.22 (20 dB) max at DC - 6 GHz, 1.43 (15 dB) max at 6 - 12 GHz
- Dielectric Withstanding Voltage: 500 VRMS minimum
- Durability: 500 cycles minimum
- Temperature Range: -65°C to +165°C
- Packaging: Single pack, marked with Product details
- Connector Type: MCX PCB Jack
- Dimensions: Refer to detailed drawing
- Mounting: Edge mount
- Certifications: Not specified
Buy the Amphenol 919-426J-7IP12G – Reliable RF Coaxial Connector for Industrial Applications
Purchase the Amphenol RF coaxial connector online today—designed for high-frequency RF applications. Featuring a 75 ohm impedance, DC to 12 GHz frequency range, gold-plated brass body, and a robust beryllium copper contact, it delivers exceptional performance and durability. Withstanding 500 VRMS dielectric voltage and over 500 cycles, it is ideal for demanding RF setups in temperature ranges from -65°C to +165°C. Conveniently packaged as a single unit, it ensures quick installation and reliable connection for industrial, communication, and test equipment.
Get Amphenol 919-426J-7IP12G today—built for precision and long-lasting durability in RF communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF 919426J71P12G?
You can click on the BUY or RFQ button to purchase 919426J71P12G from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 919426J71P12G?
You can download the 919426J71P12G datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 919426J71P12G?
AMPHENOL RF
