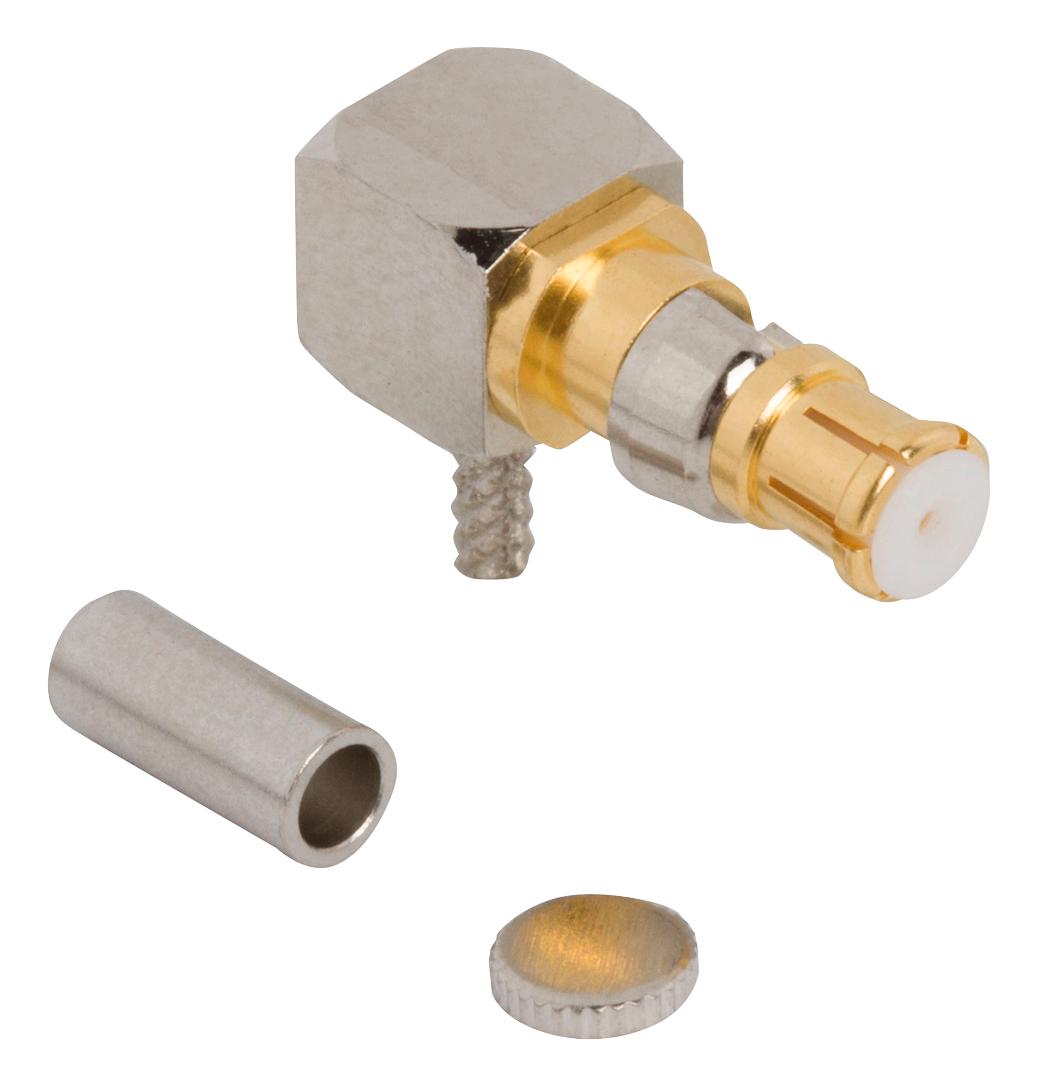

AMPHENOL RF 920514P51A RF Coaxial Connector
The 920514P51A is an RF coaxial connector designed for high-frequency applications, supporting impedance of 50 ohms and a frequency range from DC up to 6 GHz. Made primarily of beryllium copper, brass, and PTFE insulators, it features gold and nickel plating for durability and excellent electrical performance. The connector withstands voltages up to 1000 VRMS and operates effectively in temperatures from -65°C to +165°C. It includes detailed assembly instructions, suitable for precision cable connections, and is packaged for single units with clear markings for easy identification and compatibility.
AMPHENOL RF 920514P51A RF Coaxial Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC-6 GHz
- VSWR: 1.14 (-24 dB) max @ DC - 2 GHz, 1.22 (+20 dB) max @ 2-4 GHz, 1.38 (-16 dB) max @ 4-6 GHz
- Voltage Withstanding: 1000 VRMS minimum
- Temperature Range: -65°C to +165°C
- Materials: Body - Beryllium Copper with Gold Plating, Rear Body - Brass with Nickel Plating, Contact - Beryllium Copper with Gold Plating, Insulator - PTFE
- Mechanical Durability: 200 cycles minimum for smooth bore, 50 cycles for limited detent
- Assembly Instructions: Trim cable, slide ferrule, insert cable, solder contact, crimp ferrule, press cap
- Packaging: Single pack with marked specifications and date code
Buy the Buy Amphenol RF Part Number 920514P51A Online
Experience the superior quality of the RF coaxial connector, supporting 50 ohms impedance and DC to 6 GHz frequency. Made from durable materials like beryllium copper, brass, and PTFE insulators with gold and nickel plating, it ensures excellent electrical conductivity and long-term reliability. Designed for high-frequency applications, this connector features easy assembly instructions, operational stability up to 165°C, and withstands voltages up to 1000 VRMS. Purchase online today for seamless integration into your RF systems and reliable performance.
Buy Amphenol RF 920514P51A now and experience unmatched reliability and high-frequency performance for your precision cable connections.
Frequently Asked Questions
Where can I buy AMPHENOL RF 920514P51A?
You can click on the BUY or RFQ button to purchase 920514P51A from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 920514P51A?
You can download the 920514P51A datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 920514P51A?
AMPHENOL RF
