AMPHENOL RF 920515P51A RF Connector
The RF connector is designed for high-frequency applications up to 6 GHz, featuring a durable body of beryllium copper with gold plating for excellent conductivity. It offers impedance matching at 50 ohms, with a temperature range from -65°C to +165°C and dielectric withstand voltage of 200 VRMS minimum. The connector is mechanically robust, rated for at least 200 cycles for smooth bore and 50 cycles for limited detent. It includes assembly instructions for crimping and soldering, making it ideal for RF systems and cable assemblies requiring reliable performance.
AMPHENOL RF 920515P51A RF Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC-6 GHz
- VSWR: 1.14 (-24 dB) MAX. at DC-2 GHz, 1.22 (-20 dB) MAX. at 2-4 GHz, 1.38 (-16 dB) MAX. at 4-6 GHz
- Dielectric Withstand Voltage: 200 VRMS, MIN
- Body Material: Beryllium Copper with Gold Plating
- Rear Body Material: Brass with Nickel Plating
- Contact Material: Beryllium Copper with Gold Plating
- Cap Material: Brass with Nickel Plating
- Spring Ring Material: Beryllium Copper with Nickel Plating
- Ferrule Material: Brass with Gold Plating
- Insulator: PTFE, Natural
- Durability: Minimum 200 Cycles for smooth bore, 50 cycles for limited detent
- Temperature Range: -65°C to +165°C

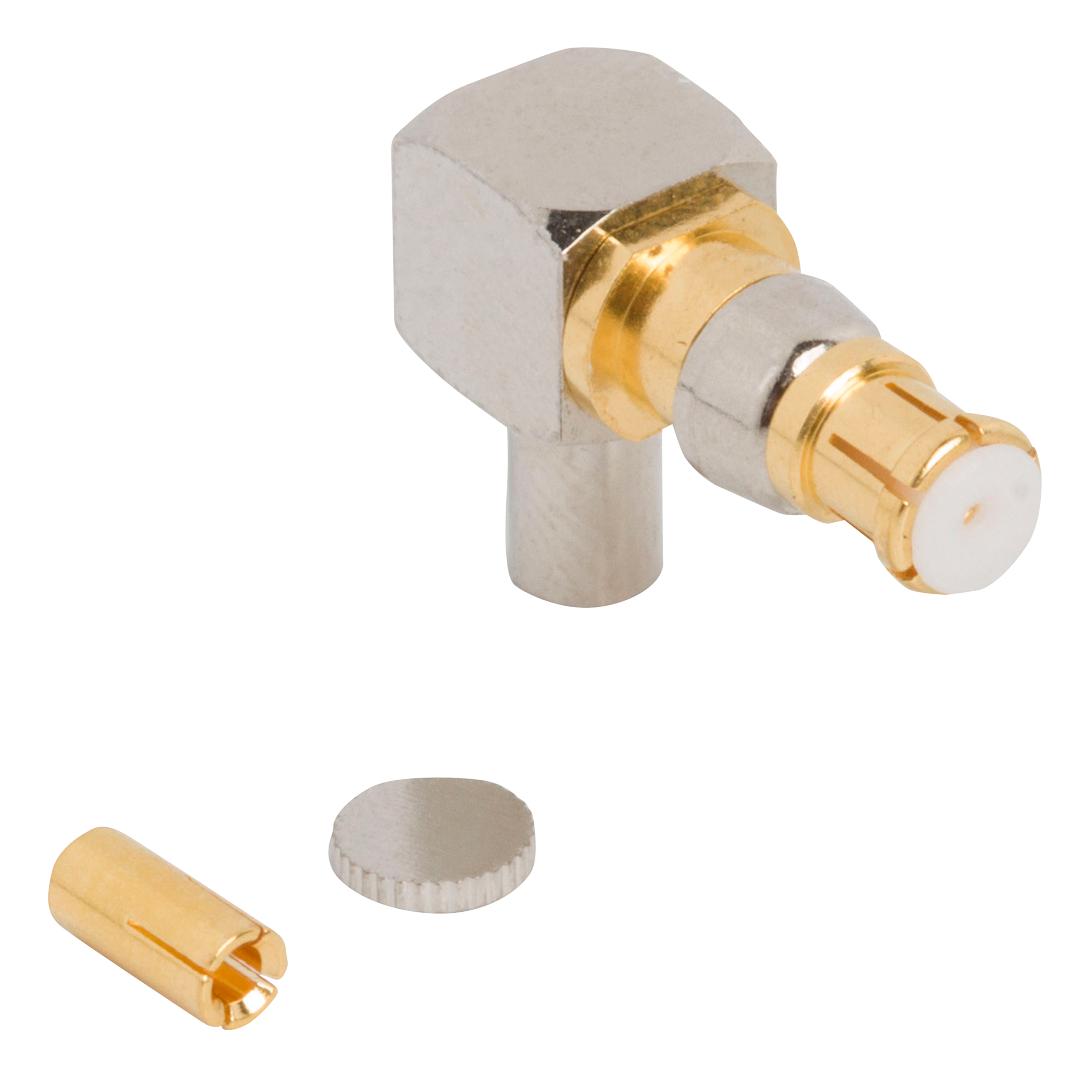

Buy the Amphenol Series RF Connector: 920-5I5P-5IA
Purchase the Amphenol RF connector 920-5I5P-5IA online today for reliable high-frequency performance up to 6 GHz. Crafted from durable materials like beryllium copper with gold plating, it ensures excellent conductivity and mechanical robustness. Featuring a 50-ohm impedance, wide temperature range from -65°C to +165°C, and dielectric withstand voltage of 200 VRMS, this connector is suitable for demanding RF systems. Easy to assemble with crimp or solder, it provides excellent impedance matching and durability for secure, high-quality connections in your RF applications.
Get Amphenol RF 920-5I5P-5IA today—built for precision and long-lasting durability in high-frequency applications.
