AMPHENOL RF B6252HBNPP3G50 RF Coaxial Jack

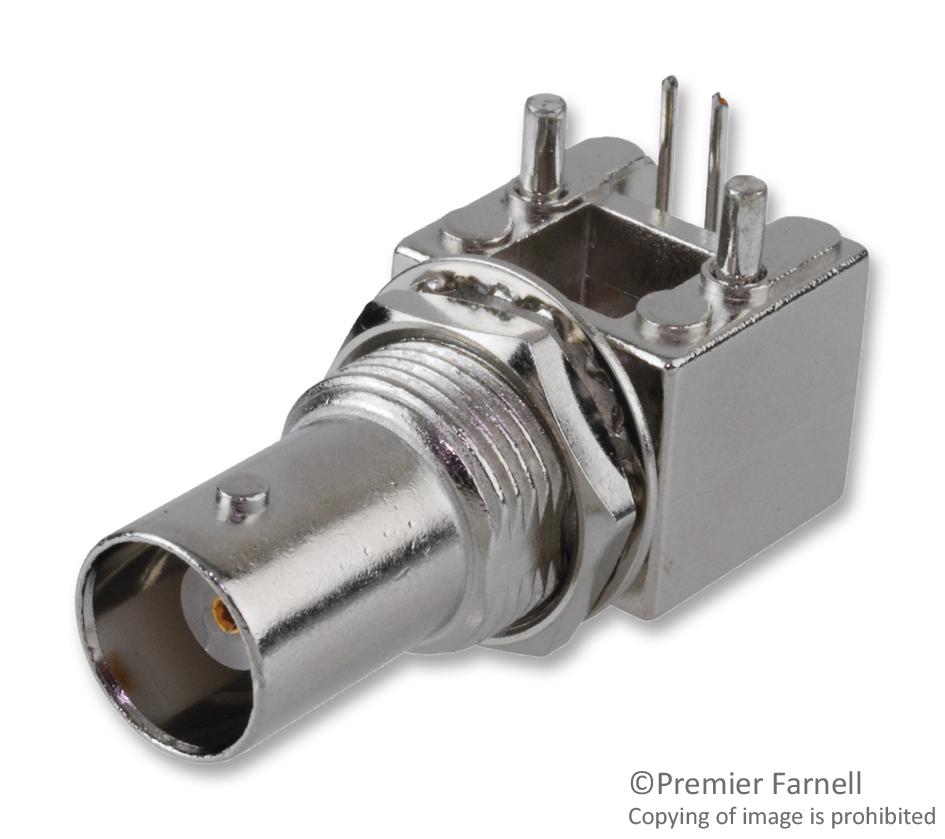

The B6252HB-NPP3G-50 is a low-profile, right-angle PCB mount BNC coaxial jack that features a durable nickel-plated zinc housing, polypropylene insulator, and a gold flash finish on the copper phosphor bronze contact. Designed for ease of installation, it employs a bayonet coupling mechanism with two lugs for quick connect and disconnect. Operating up to 4 GHz with 50 ohm impedance and a 500V RMS voltage rating, this compact RF connector measures 13.1 mm (0.516 inches) in height. It is suitable for commercial, industrial, aerospace, and RF applications, supplied with a lock nut and washer.
AMPHENOL RF B6252HBNPP3G50 RF Coaxial Jack Specifications:
- Impedance: 50 ohm
- Frequency Range: 0-4 GHz
- Working Voltage: 500 Volts rms.
- Material: Nickel-plated zinc housing, copper phosphor bronze contact with gold flash finish
- Insulator: Polypropylene
- Dimensions: Height 13.1 mm (0.516 inches), Width and Length as per standard PCB mounting
- Coupling Mechanism: Bayonet with two lugs for quarter turn mating
- Max Panel Thickness: 5.0 mm (0.197 inches)
- Supply Includes: Lock nut and washer
- Applications: RF communication, aerospace, military, industrial systems, signal processing, medical devices, power management
Buy the Amphenol B6252HB-NPP3G-50 – Reliable RF Coaxial for Industrial Applications
Purchase the Amphenol B6252HB-NPP3G-50 RF coaxial jack online today. This compact, high-quality connector features a quick bayonet coupling mechanism, supporting frequencies up to 4 GHz with 50 ohm impedance. Its low-profile design makes it ideal for PCB applications in RF communication, aerospace, medical, and industrial systems. Supplied with a lock nut and washer, it ensures reliable, easy mating for demanding projects. Get yours now and benefit from fast, secure online ordering for your signal and power connectivity needs.
Order your Amphenol B6252HB-NPP3G-50 right-angle PCB mount coaxial jack today and ensure dependable connections in RF, aerospace, and industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF B6252HBNPP3G50?
You can click on the BUY or RFQ button to purchase B6252HBNPP3G50 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part B6252HBNPP3G50?
You can download the B6252HBNPP3G50 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of B6252HBNPP3G50?
AMPHENOL RF
