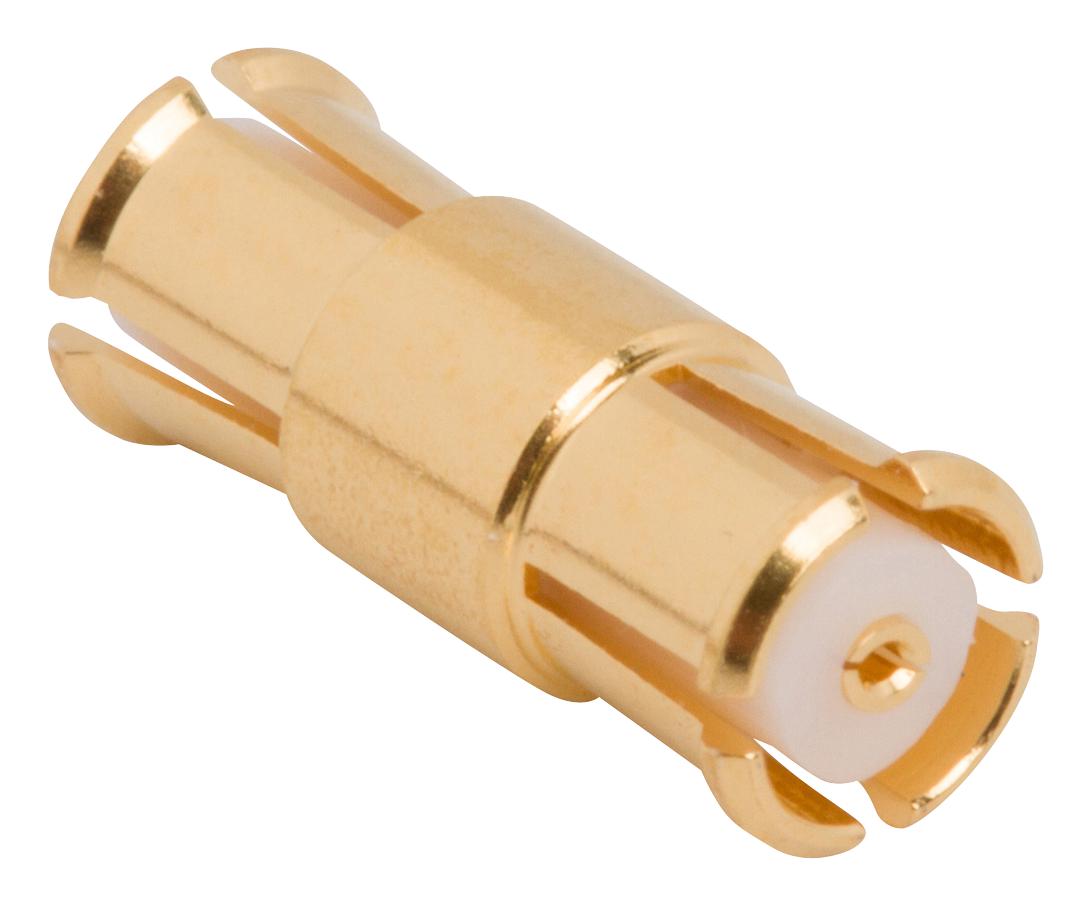

AMPHENOL RF SMPFS2A860 RF Connector
The Amphenol SMP-FS2A-860 is a precision RF connector engineered for demanding applications. Constructed with a copper body and gold plating, it ensures excellent signal integrity and longevity. Its robust design withstands harsh environments and repeated mating cycles, making it suitable for telecommunications, aerospace, and military applications. The connector's compact size and high-frequency performance make it a versatile choice for a wide range of RF systems.
AMPHENOL RF SMPFS2A860 RF Connector Specifications:
- Material: Cu, GOLD PLATING
- Durability: 100 cycles min
- Insulator: PTFE, Natural
- Mating Cycles: 500 cycles min
- Frequency Range: DC - 40 GHz
- Impedance: 50 Ohm
- VSWR (Return Loss): 1.07 MAX (-30 dB MIN) @ DC - 4 GHz
- VSWR: 1.00 MAX (-20 dB MIN) @ 4 - 18 GHz
- Marking: BAG TO BE MARKED
- Voltage Rating: 500 VRMS
- Reference: 8.60 MM
Buy the SMP-FS2A-860 AMPHENOL RF Connector | myMectronic
Purchase the SMP-FS2A-860 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF SMPFS2A860?
You can click on the BUY or RFQ button to purchase SMPFS2A860 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part SMPFS2A860?
You can download the SMPFS2A860 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of SMPFS2A860?
AMPHENOL RF
