AMPHENOL RF FA1NHSJC046 Automotive RF Connector
The FA1-NHSJ-C046 is a high-performance FAKRA connector designed for automotive RF applications, supporting up to 4 GHz frequency range. It features a durable plastic housing with locking mechanisms and color coding for easy identification, meeting industry standards for mechanical and environmental resilience. Compatible with various coaxial cables such as RG-58 and RG-174, this connector ensures reliable, low-loss connections for telematics, GPS, and satellite radio systems. Its robust construction supports numerous mating cycles, making it ideal for automotive and telecommunication industries requiring consistent high-frequency performance.
AMPHENOL RF FA1NHSJC046 Automotive RF Connector Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC - 4 GHz
- VSWR: 1.15 max at 1 GHz, 1.25 max at 4 GHz
- Insertion Loss: 0.3 dB max from DC - 3 GHz
- Insulation Resistance: >= 20 MΩ
- Center Contact Resistance: <= 10 mΩ
- Dielectric Withstanding Voltage: 1000 VRMS min
- Durability: Minimum of 100 mating cycles
- Housing Material: Nylon 6/6
- Secondary Locking Clip: Included
- Operating Temperature Range: -55°C to +125°C
- Vibration: MIL-STD-202, Method 204, Cond. B
- Shock: MIL-STD-202, Method 213, Cond. B
- Cable Compatibility: RG-58, RG-174, RG-316, RG-178, RG-196
- Plating: Gold over Nickel
- Environment: Meets automotive mechanical and environmental standards

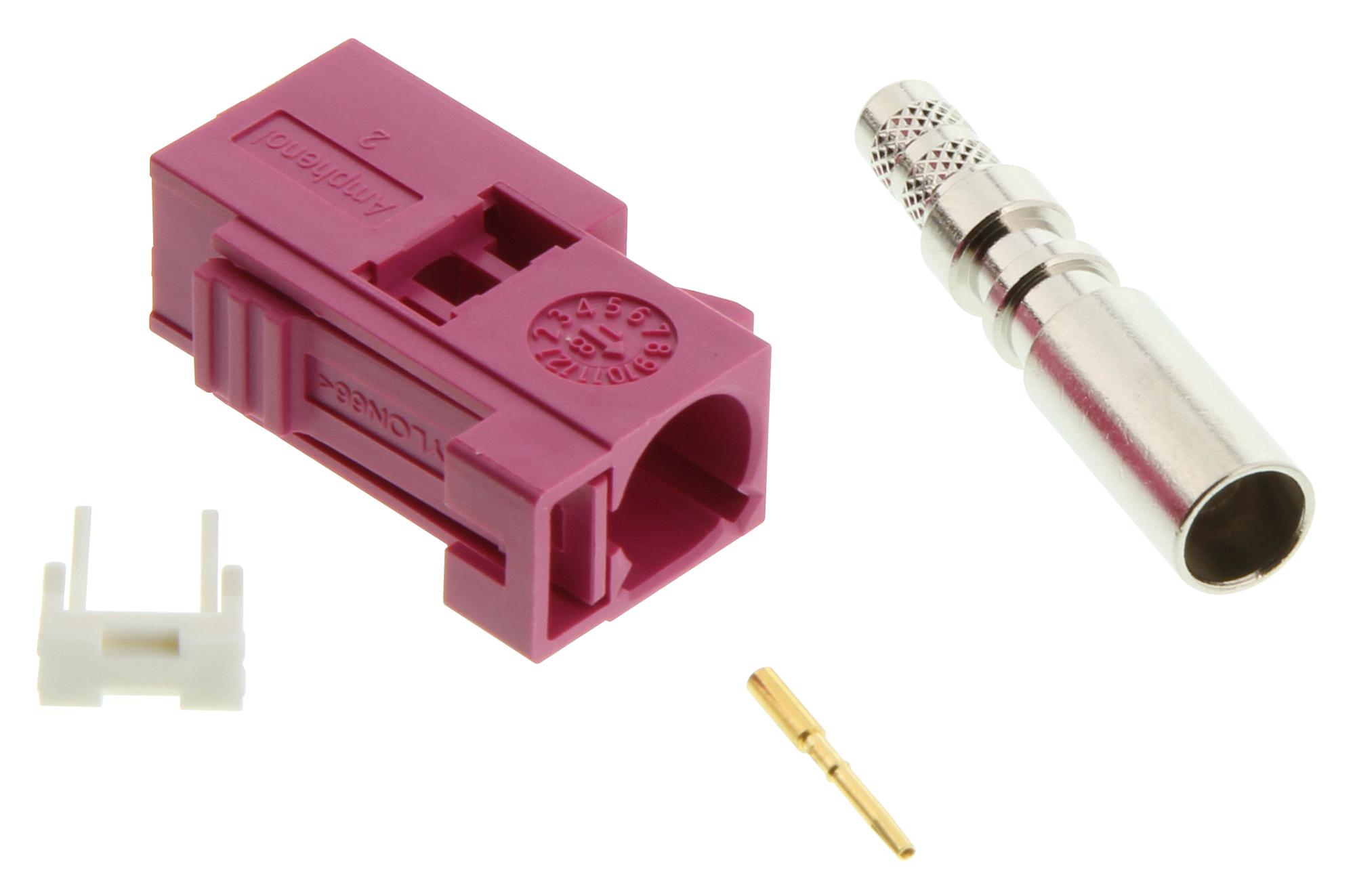

Buy the Buy Amphenol FAKRA Part Number FA1NHSJC046 Online
Get your Amphenol FAKRA connector FA1-NHSJ-C046 now from our online store. Designed for automotive telematics and high-frequency applications, it features robust plastic housing with locking, color coding, and supports up to 4 GHz for GPS, satellite radio, and vehicle diagnostics. This durable, low-loss connector is compatible with various coaxial cables such as RG-58 and RG-174, ensuring reliable performance with at least 100 mating cycles. Perfect for OEM and aftermarket projects requiring consistent high-frequency performance, easy installation, and environmental resilience.
Order your Amphenol SeriesFA1NHSJC046 automotive RF connector today and ensure reliable, high-frequency connections for your telematics and GPS systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF FA1NHSJC046?
You can click on the BUY or RFQ button to purchase FA1NHSJC046 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part FA1NHSJC046?
You can download the FA1NHSJC046 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of FA1NHSJC046?
AMPHENOL RF
