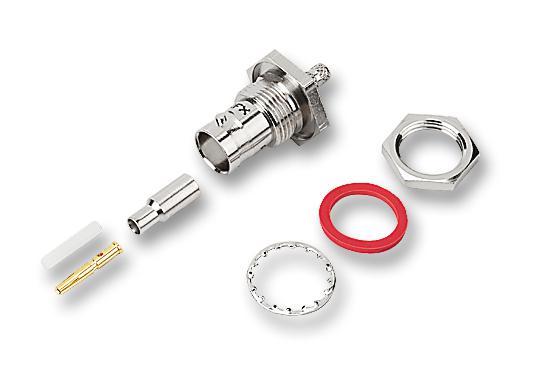

AMPHENOL RF B6421E1ND3G550 Bulkhead Crimp BNC Jack
The B6421E1-ND3G-5-50 is a straight bulkhead Crimp BNC jack featuring gold-plated phosphor bronze contacts, a nickel-plated brass body, and a Delrin insulator. It belongs to the 50Ω BNC product line, a miniature quick connect/disconnect RF connector ideally suited for coaxial cables such as RG174, RG188A, and RG316. This connector includes a nickel-plated annealed copper crimp ferrule, with a maximum working voltage of 500V RMS and dielectric withstanding voltage of 1500V RMS. It is used in RF communications, telecommunications, automotive systems, computing and peripherals, sensing and instrumentation, medical applications, and defense, military, and aerospace fields.
AMPHENOL RF B6421E1ND3G550 Bulkhead Crimp BNC Jack Specifications:
- Impedance: 50 Ohm
- Frequency Range: 0-4 GHz
- Working Voltage: 500 Volts rms
- Dielectric Withstanding Voltage: 1500 Volts rms
- Maximum Panel Thickness: 5.0 mm [0.197]
- Contact Material: Gold-plated Phosphor Bronze
- Body Material: Nickel-plated Brass
- Insulator: Delrin
- Crimp Ferrule: Nickel-plated annealed copper
- Applications: RF communication, automotive, medical, aerospace, military, telecom, sensing, instrumentation, computers
Buy the Amphenol Series BNC: Bulkhead Crimp Jack: B6421E1ND3G550
Enhance your RF and communication systems with the Amphenol bulkhead Crimp BNC jack. Featuring gold-plated contacts, a durable nickel-plated brass body, and a high-quality Delrin insulator, this connector offers excellent electrical performance and maximum panel thickness of 5.0 mm. Its 50 Ohm impedance makes it ideal for RF applications up to 4 GHz, including aerospace, military, telecom, and medical equipment. Reliable, easy to install, and designed for demanding environments, order online now for fast delivery.
Order your Amphenol Series BNC bulkhead Crimp Jack today and ensure reliable connections for RF, aerospace, and military projects.
