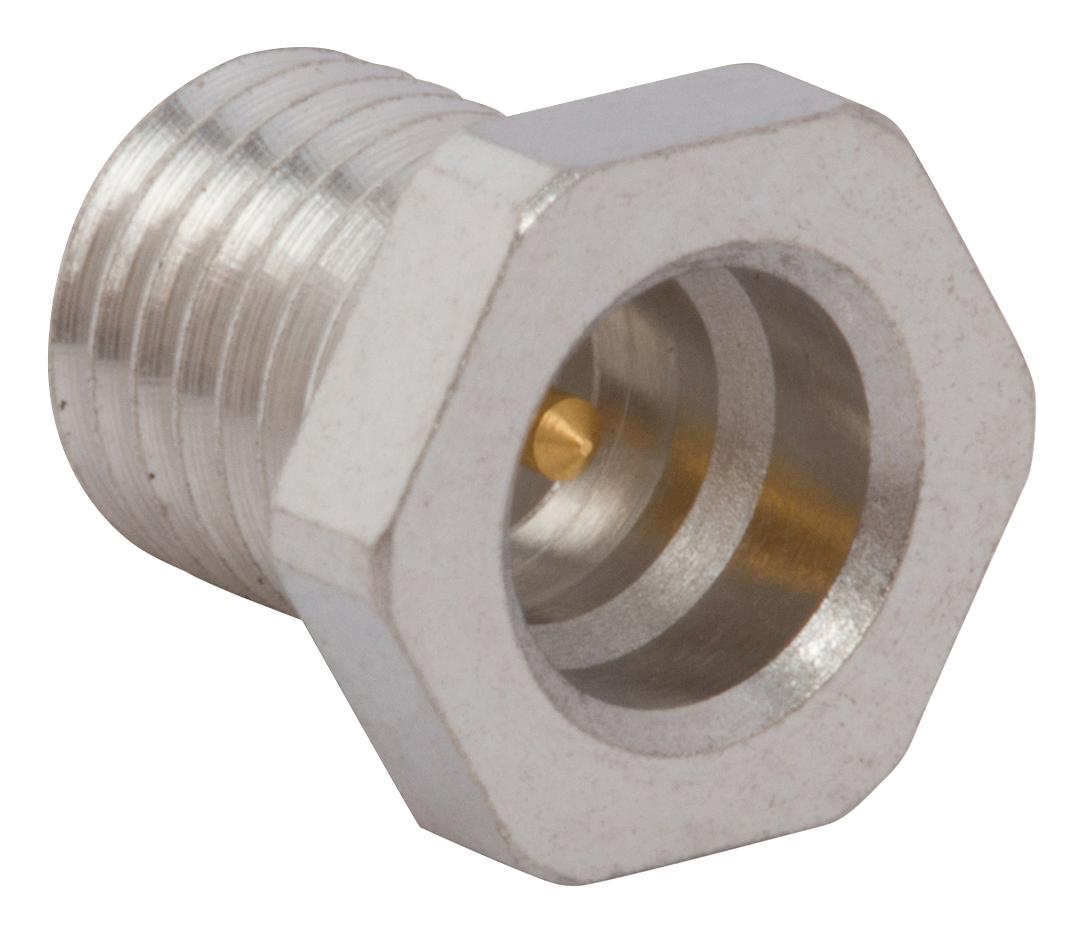

AMPHENOL RF PSMPMSLDCSB RF coaxial connector
This RF coaxial connector features a body of brass with an aluminum-plated silver finish and a gold-plated brass contact pin. It has PTFE insulators and operates within a frequency range of DC to 10 GHz, offering low insertion loss of 0.03 dB max. With impedance of 50 ohms, it supports power handling up to 200 W at 2.2 GHz. Mechanical durability includes a minimum of 100 mating cycles and a temperature range from -65°C to +165°C. Compliant with RoHS standards, this connector is ideal for high-frequency RF applications requiring durability and high performance.
AMPHENOL RF PSMPMSLDCSB RF coaxial connector Specifications:
- Material: Brass body with aluminum-plated silver finish
- Contact Material: Brass with gold plating
- Insulator: PTFE, natural
- Impedance: 50 ohms
- Frequency Range: DC to 10 GHz
- Return Loss: ≥30 dB @ DC-4 GHz, ≥25 dB @ 4-6 GHz
- Insertion Loss: ≤0.03 dB
- Insulation Resistance: ≥5 GΩ
- Center Contact Resistance: ≤3 mΩ
- Outer Contact Resistance: ≤2 mΩ
- Power Handling: Up to 200 W @ 2.2 GHz at 20°C
- Intermodulation (3rd order): ≥160 dBc
- Mating Cycles: Minimum 100
- Temperature Range: -65°C to +165°C
- Material Compliance: RoHS
- Physical Dimensions: Refer to detailed datasheet
- Finish: Aluminum-plated silver body, gold-plated contacts
Buy the Amphenol Series RF Coaxial Connector: PSMPMSLDCSB
Enhance your RF systems with this high-performance coaxial connector featuring a durable brass body, gold-plated contacts, and PTFE insulators. Operating from DC to 10 GHz, it offers excellent return loss, low insertion loss, and high power capacity up to 200 W. Its robust design supports over 100 mating cycles and withstands temperatures from -65°C to +165°C, making it suitable for demanding industrial and communication applications. Purchase online today for dependable, high-quality RF connections.
Order your Amphenol Series RF Coaxial Connector PSMPMSLDCSB today and ensure reliable high-frequency communication for your projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF PSMPMSLDCSB?
You can click on the BUY or RFQ button to purchase PSMPMSLDCSB from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part PSMPMSLDCSB?
You can download the PSMPMSLDCSB datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of PSMPMSLDCSB?
AMPHENOL RF
