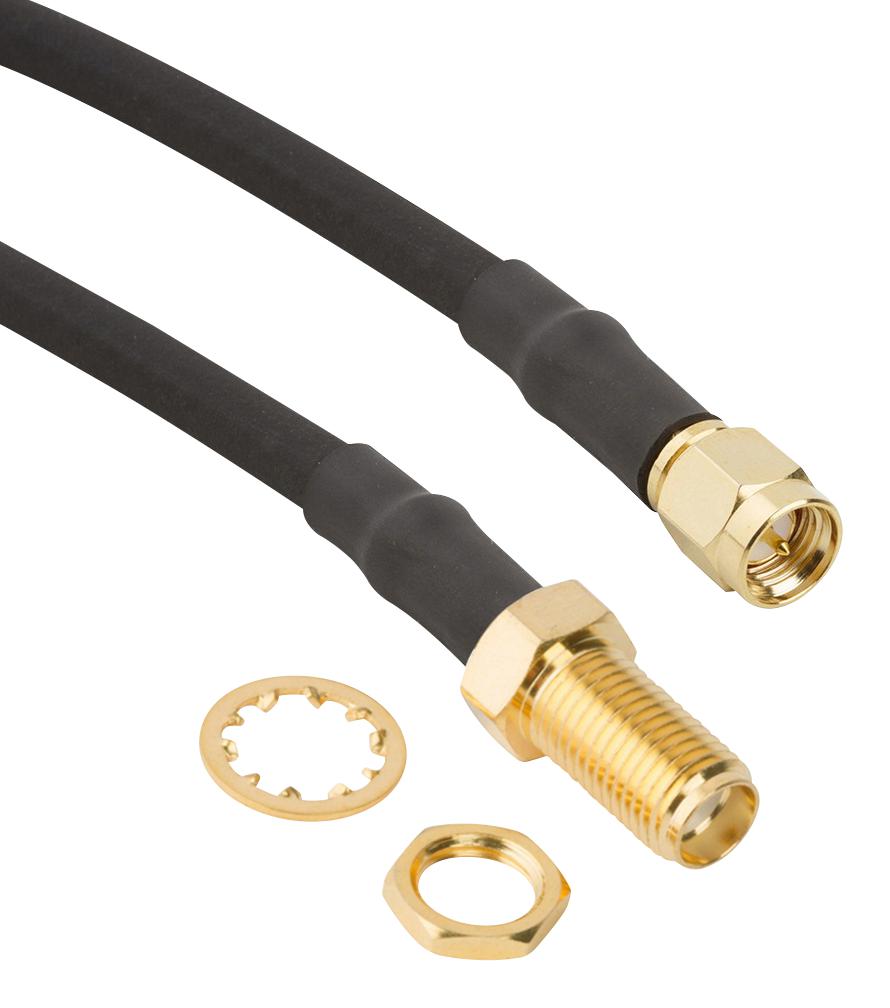

AMPHENOL RF 095902477024 SMA Cable Assembly
Amphenol RF's SMA cable assemblies on LMR cable combine precision-machined SMA connectors with high-performing LMR cables. These pre-configured assemblies provide a lower loss option with superior electrical performance compared to standard cables, making them ideal for applications such as cellular/broadband amplifiers, microwave filters, wireless infrastructure, remote sensing, and radar systems. The cable features a black polyethylene jacket, closed-cell foam poly dielectric, and bonded tape conductor for increased ruggedness. Available in various lengths and configurations to meet diverse application needs.
AMPHENOL RF 095902477024 SMA Cable Assembly Specifications:
- Impedance: 50 Ω
- Frequency Range: DC - 6 GHz
- Mating Cycles: 500 min.
- Minimum Bend Radius (LMR-195): 2.0 in.
- Minimum Bend Radius (LMR-240): 2.5 in.
- Temperature Range: -40°C to +90°C
- Connector Body: Brass, Gold Plating
- Female Contact: Beryllium Copper, Gold Plating
- Male Contact: Brass, Gold Plating
- Insulator: PTFE
- RoHS Compliant: Compliant with exemption 6C
