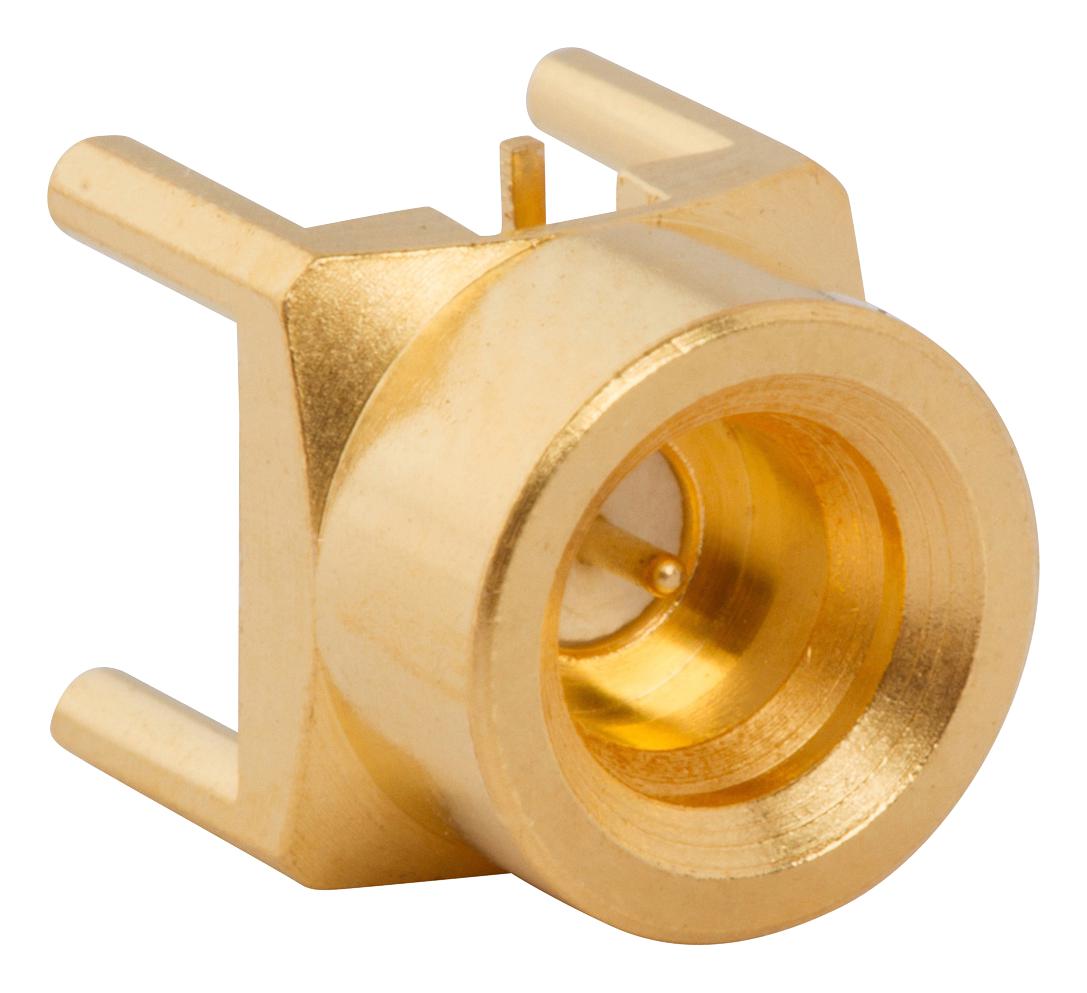

AMPHENOL RF SMPMSLDPCT15T RF Jack
This PCB through-hole vertical jack features a push-on coupling for quick installation and a limited detent. Made of gold-plated brass, it provides reliable conductivity and durability. Ideal for antennas, broadband systems, military, instrumentation, and 5G wireless applications, ensuring high performance and secure connections in demanding environments. The connector supports impedance of 50 ohms, with an insertion loss of 0.05 dB GHz, and withstands temperatures from -65°C to +165°C, making it a versatile choice for RF systems requiring robust electrical and mechanical specifications.
AMPHENOL RF SMPMSLDPCT15T RF Jack Specifications:
- Body Material: Brass, Gold Plated
- Insulator Material: LCP E130i
- Impedance: 50 Ω
- Return Loss: -26.4 dB @ DC-6 GHz
- Insertion Loss: 0.05 dB GHz max
- Dielectric Withstanding Voltage: 500 VRMS
- Durability: 500 cycles min
- engagement force: 10 lbs (45 N) max
- Disengagement Force: 2 lbs (9 N) min
- Inner Contact Retention Force: 1.5 lbs (7 N) min
- Temperature Range: -65°C to +165°C
- Packaging: TAPE & REEL, 600 pcs/reel
- Marking: Reel marked with company and date code
- Connector Series: SMP Jack
- Physical Dimensions: Custom to standard RF connector sizes, with mounting and interface details as per drawings
Buy the Buy Amphenol SMPMSLDPCT15T Part Number SMPMSLDPCT15T Online
Secure your high-quality RF connector online today. The Amphenol SMPMSLDPCT15T ensures robust performance for antenna systems, military communications, broadband, and 5G networks. Designed for quick installation with a push-on coupling and limited detent, it features gold-plated brass construction for durability and excellent conductivity. Supporting impedance of 50 ohms and withstands temperatures from -65°C to +165°C, making it ideal for demanding environments. Purchase now to enhance your RF system reliability and efficiency with trusted, industry-leading technology.
Order your Amphenol series SMPMSLDPCT15T RF Jack today and ensure reliable, high-performance connections for demanding RF applications and project needs.
Frequently Asked Questions
Where can I buy AMPHENOL RF SMPMSLDPCT15T?
You can click on the BUY or RFQ button to purchase SMPMSLDPCT15T from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part SMPMSLDPCT15T?
You can download the SMPMSLDPCT15T datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of SMPMSLDPCT15T?
AMPHENOL RF
