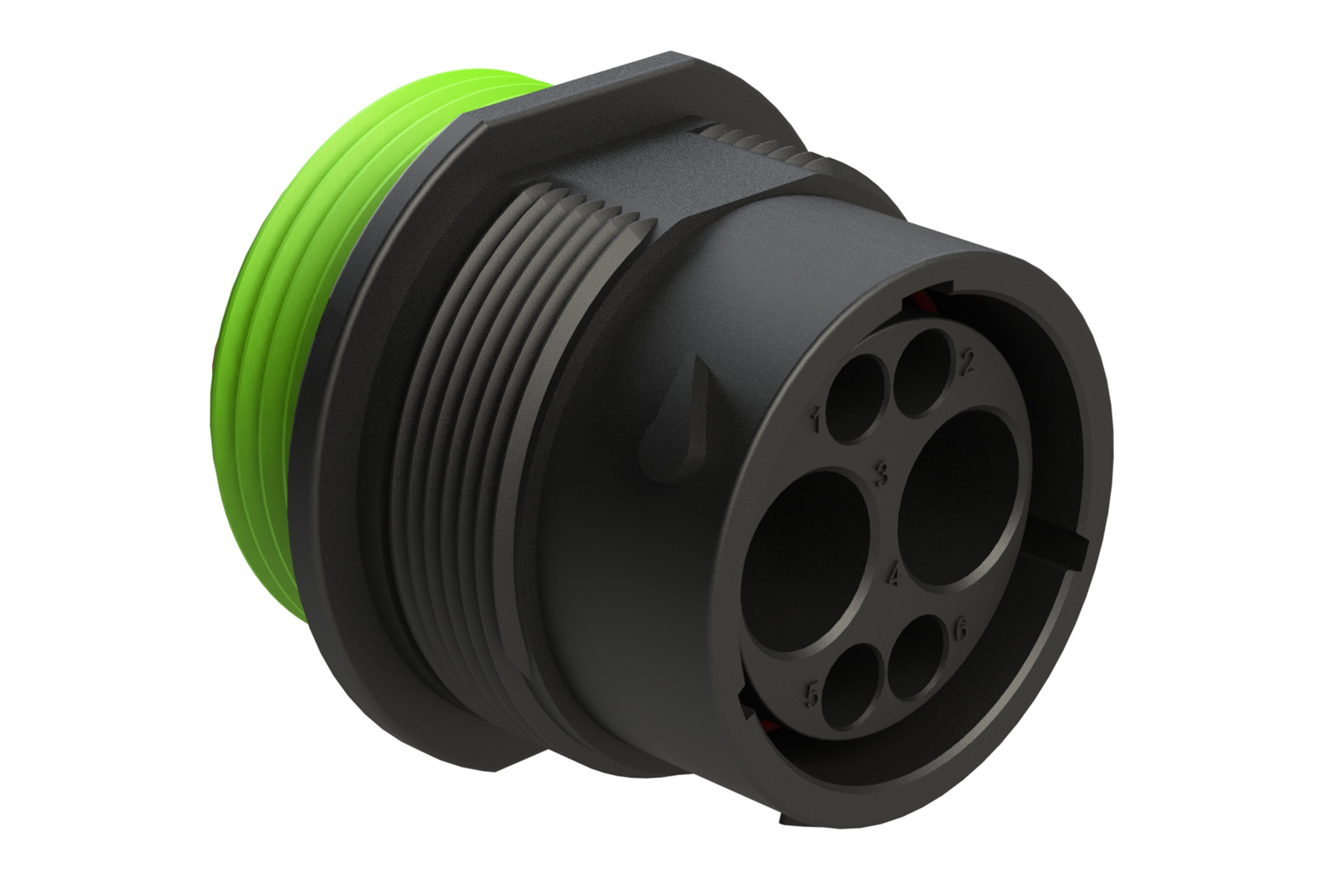

Amphenol Sine Systems AHDP041806PNWTAC030 Circular Connector Receptacle
The Amphenol Sine Systems AHDP04-18-06PN-WTAC030 is a high-performance circular connector receptacle designed for use in various industrial applications, including automotive, heavy equipment, and power transmission. It features a durable thermoplastic housing, a silicone rubber seal for environmental protection, and a threaded adapter for secure mounting. The connector is rated to IP67 and IP69K standards, ensuring resistance to dust and water ingress. It supports a current rating of up to 100 Amps and is RoHS compliant, making it suitable for environmentally conscious designs. The AHDP series is known for its reliability and performance in harsh environments.
Amphenol Sine Systems AHDP041806PNWTAC030 Circular Connector Receptacle Specifications:
- operating_temperature: -55°C to +125°C
- dielectric_withstanding_voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- insulation_resistance: 1000 megohm min @ 25°C
- moisture_resistance: IP67 & IP69K (mated condition)
- mating_cycle_durability: 100 cycles
- material_housing: Thermoplastic, Black
- material_seal: Silicone Rubber
- contact_size: 4
- wire_range: Typical 6 AWG
- current_rating: 100 Amps
- thread_size: 1 1/2-18 UNEF
- panel_thickness: 1.6 to 4.7mm
Buy the AHDP04-18-06PN-WTAC030 Amphenol Sine Systems Circular Connector Receptacle | myMectronic
Purchase the Amphenol Sine Systems AHDP04-18-06PN-WTAC030 securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHDP041806PNWTAC030?
You can click on the BUY or RFQ button to purchase AHDP041806PNWTAC030 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHDP041806PNWTAC030?
You can download the AHDP041806PNWTAC030 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHDP041806PNWTAC030?
Amphenol Sine Systems
