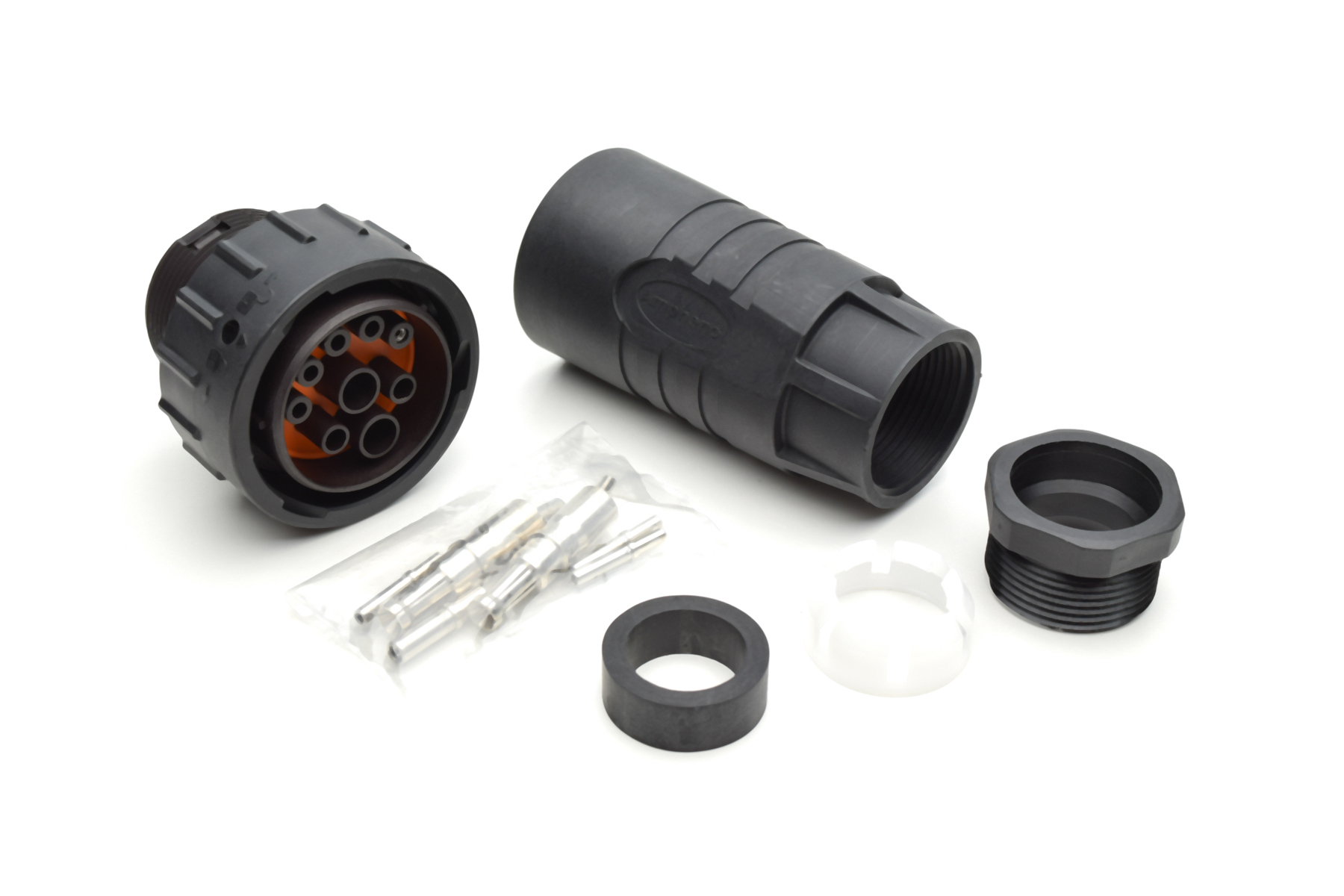

Amphenol Sine Systems AHDP062491SBS1K16M Circular Connector
The Amphenol Sine Systems AHDP06-24-91S-BS1-K16M is a circular connector designed for demanding industrial applications. It offers a robust design with a polyamide housing and nickel-plated copper alloy contacts, providing excellent durability and corrosion resistance. The connector's IP67/IP6K9K rating ensures protection against dust and water ingress, making it suitable for use in harsh environments. It supports various cable diameters and utilizes a bayonet locking mechanism for secure connections. This connector is ideal for applications in automotive, industrial automation, and power transmission systems.
Amphenol Sine Systems AHDP062491SBS1K16M Circular Connector Specifications:
- Bemessungsspannung: 24VDC
- Rated Voltage: 24VDC
- Strombelastbarkeit bei +40°C: 2x75A (16mm²), 2x15A (2,5mm²), 4x5A (0,5mm²)
- Current Carrying Capacity at 40°C: 2x75A (16mm²), 2x15A (2,5mm²), 4x5A (0,5mm²)
- Max Strombelastbarkeit: 2x80A (16mm²), 2x25A (2,5mm²)
- Max Current Carrying Capacity: 2x80A (16mm²), 2x25A (2,5mm²)
- Pollution Degree: 3
- Temperaturbereich: -40°C bis +125°C
- Temperature Range: -40°F up to +257°F
- Schutzgrad: IP67 / IP6K9K
- Protection Class: IP67 / IP6K9K
- Mechanische Lebensdauer: >100 Steckzyklen
- Mechanical Operations: >100 mating cycles
- Werkstoff Gehäuse: Polyamid schwarz, UL94V-0
- Material Housing: Polyamid black, UL94V-0
- Werkstoff Kontakte: Kupferlegierung, vernickelt
- Material Contacts: Copper alloy, nickel plated
- Anschließbare Kabeldurchmesser: 14 - 18mm
- Possible Cable Diameter: 14 - 18mm
Buy the AHDP06-24-91S-BS1-K16M Amphenol Sine Systems Circular Connector | myMectronic
Purchase the Amphenol Sine Systems AHDP06-24-91S-BS1-K16M connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHDP062491SBS1K16M?
You can click on the BUY or RFQ button to purchase AHDP062491SBS1K16M from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHDP062491SBS1K16M?
You can download the AHDP062491SBS1K16M datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHDP062491SBS1K16M?
Amphenol Sine Systems
