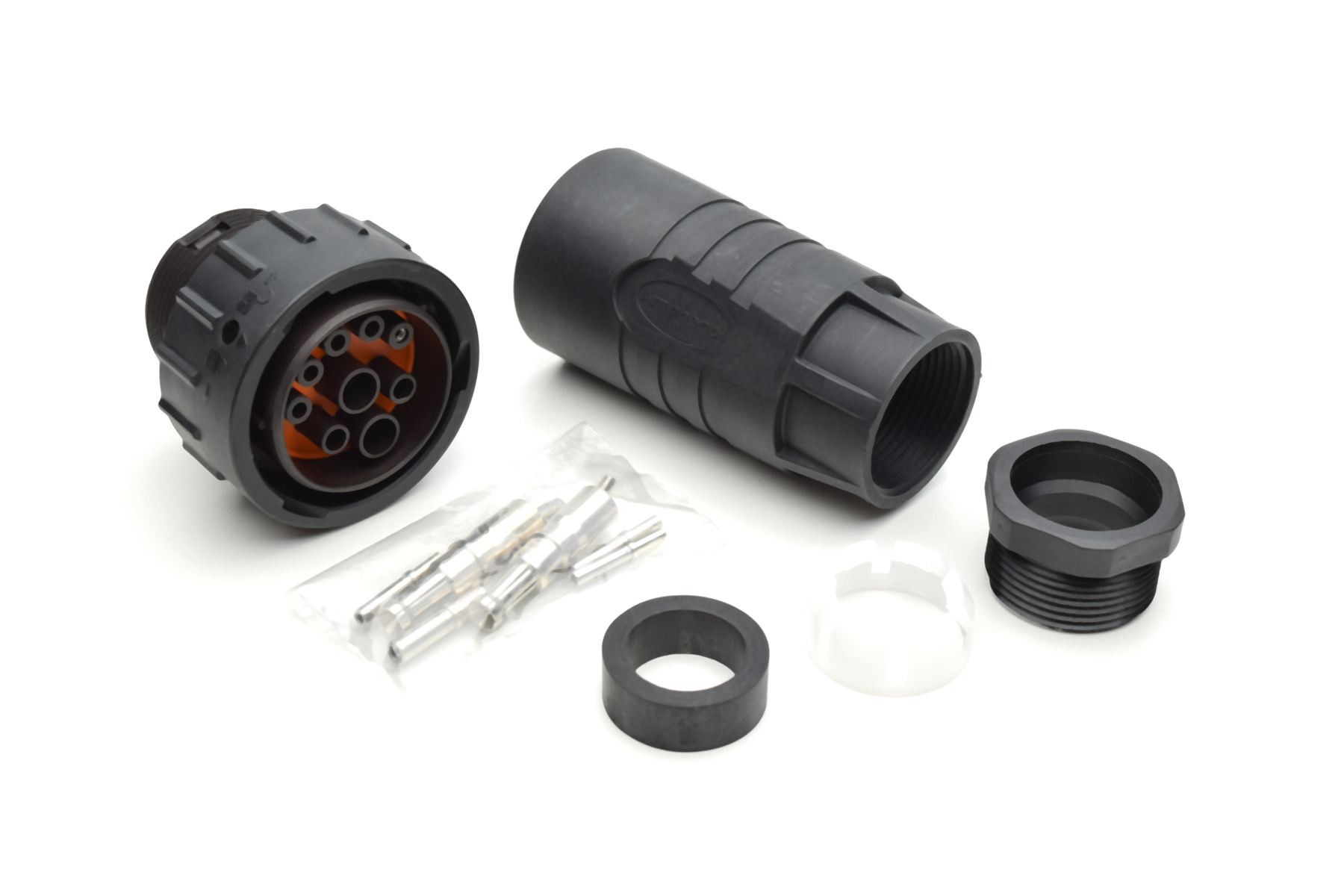

Amphenol Sine Systems AHDP062491SBS1K16S Circular Connector
The Amphenol AHDP06-24-91S-BS1-K16S is a circular connector designed for demanding industrial applications requiring a robust and environmentally sealed connection. It features a polyamide black housing (UL94V-0), nickel-plated copper alloy contacts, and NBR/silicone gaskets for sealing. The connector is rated for 24VDC and offers IP67/IP6K9K protection when mated. It supports various cable diameters and utilizes a bayonet locking mechanism. Contact options include both machined and stamped/formed versions with gold and nickel plating options to suit different application needs. This connector is ideal for applications in automotive, industrial automation, and power transmission.
Amphenol Sine Systems AHDP062491SBS1K16S Circular Connector Specifications:
- Bemessungsspannung: 24VDC
- Rated Voltage: 24VDC
- Strombelastbarkeit_2x_Size_8: 2x45A (6mm²)
- Current Carrying Capacity_2x_Size_8: 2x45A (6mm²)
- Strombelastbarkeit_2x_Size_12: 2x60A (10mm²)
- Current Carrying Capacity_2x_Size_12: 2x60A (10mm²)
- Strombelastbarkeit_2x_Size_16: 2x75A (16mm²)
- Current Carrying Capacity_2x_Size_16: 2x75A (16mm²)
- Strombelastbarkeit_2x_Size_8_belastet: 2x15A (2,5mm²)
- Current Carrying Capacity_2x_Size_8_belastet: 2x15A (2,5mm²)
- Strombelastbarkeit_4x_Size_16: 4x5A (0,5mm²)
- Current Carrying Capacity_4x_Size_16: 4x5A (0,5mm²)
- Max_Strombelastbarkeit_2x_Size_6: 2x50A (6mm²)
- Max Current Carrying Capacity_2x_Size_6: 2x50A (6mm²)
- Max_Strombelastbarkeit_2x_Size_10: 2x70A (10mm²)
- Max Current Carrying Capacity_2x_Size_10: 2x70A (10mm²)
- Max_Strombelastbarkeit_2x_Size_16: 2x80A (16mm²)
- Max Current Carrying Capacity_2x_Size_16: 2x80A (16mm²)
- Verschmutzungsgrad: 3
- Pollution Degree: 3
- Temperaturbereich: -40°C bis +125°C
- Temperature Range: -40°F up to +257°F
- Schutzgrad: IP67 / IP6K9K (gesteckt)
- Protection Class: IP67 / IP6K9K (mated)
- Mechanische_Lebensdauer: >100 Steckzyklen
- Mechanical Operations: >100 mating cycles
- Werkstoff_Dichtungen: NBR, Silikon
- Material Gaskets: NBR, silicone
- Werkstoff_Gehäuse: Polyamid schwarz, UL94V-0
- Material Housing: polyamide black, UL94V-0
- Werkstoff_Kontaktträger: Polyamid schwarz, UL94V-0
- Material Housing Contact Carrier: polyamide black, UL94V-0
- Werkstoff_Kontakte: Kupferlegierung, vernickelt
- Material Contacts: copper alloy, nickel plated
- Anschließbare_Kabeldurchmesser: 14 - 18mm
- Possible Cable Diameter: 14 - 18mm
- Verriegelung: Bajonett
- Locking: Bayanet
- ISO_Norm: ISO 11783-2
Buy the AHDP06-24-91S-BS1-K16S Amphenol Sine Systems Circular Connector | myMectronic
Purchase the Amphenol AHDP06-24-91S-BS1-K16S connector securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHDP062491SBS1K16S?
You can click on the BUY or RFQ button to purchase AHDP062491SBS1K16S from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHDP062491SBS1K16S?
You can download the AHDP062491SBS1K16S datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHDP062491SBS1K16S?
Amphenol Sine Systems
