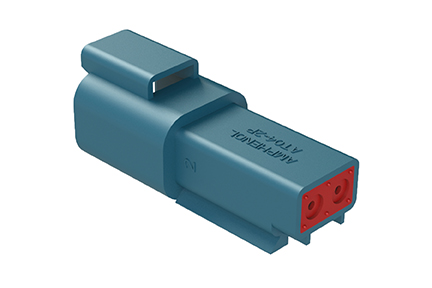

Amphenol Sine Systems AT042PBLU 2 Pin Circular Connector
The Amphenol Sine Systems AT04-2P-BLU is a 2-pin circular connector engineered for reliable performance in various industrial and automotive applications. Constructed with a thermoplastic housing and a silicone rubber seal, this connector provides excellent environmental protection, including IP68-rated moisture resistance. It boasts a current rating of 13 amps and an operating temperature range from -55°C to +125°C, making it suitable for harsh conditions. The connector is RoHS compliant and designed for durability with a mating cycle durability of 100 cycles. It is compatible with mating part AT06-2S and is available in various color options via special order.
Amphenol Sine Systems AT042PBLU 2 Pin Circular Connector Specifications:
- Material (Housing): Thermoplastic
- Seal Material: Silicone Rubber
- Current Rating: 13 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps leakage @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP68 (1M water for 24 hrs, mated), IP69K (mated)
- Mating Cycle Durability: 100 Cycles
- RoHS Compliant: Yes
- Mating Part: AT06-2S
- Contact Size: 16
- Typical Wire Range: 14-20 AWG (2.0-0.5mm²)
- Max Insulated O.D.: 3.68 mm (.145 in)
