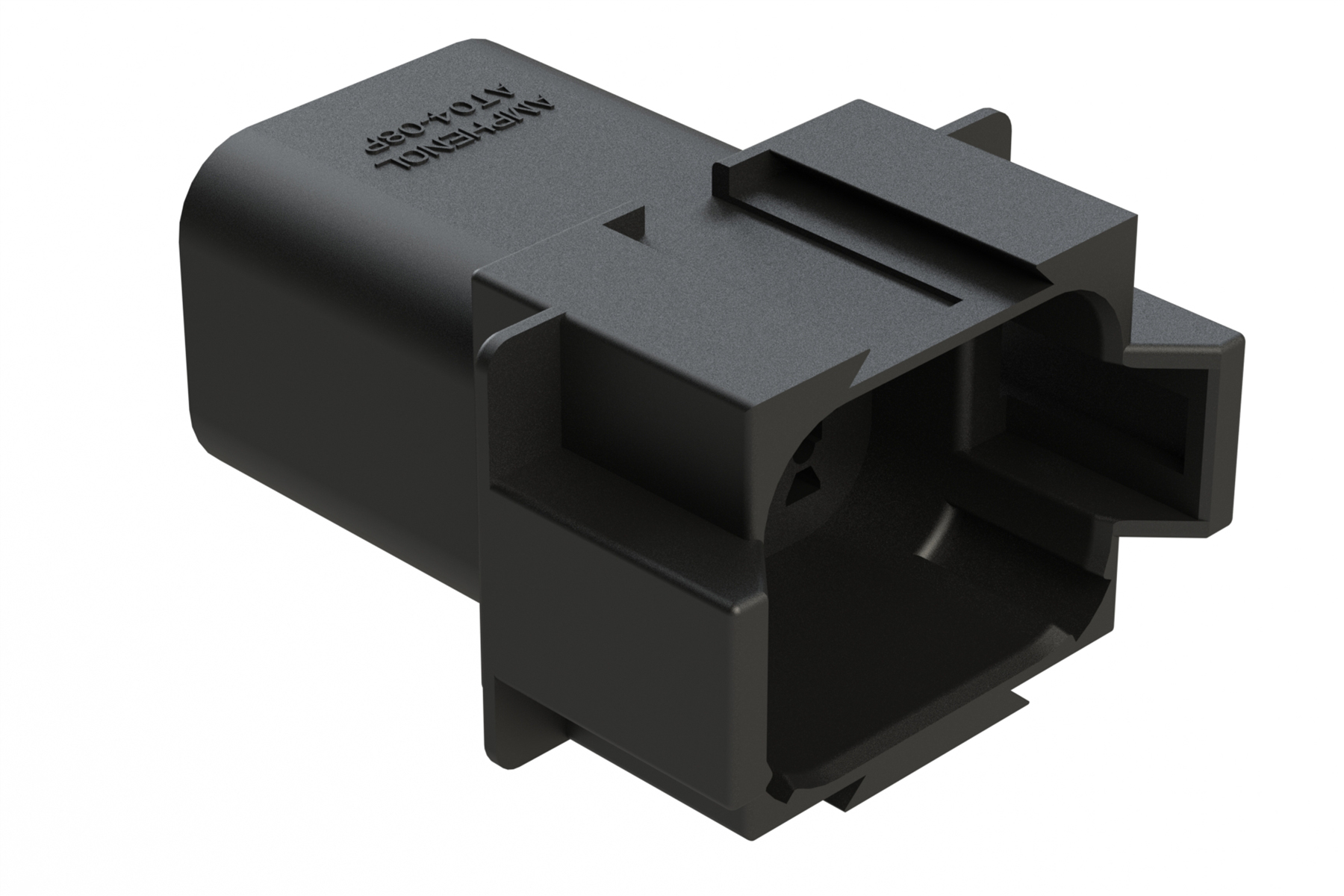

Amphenol Sine Systems AT0408PARDBLK 8 Pin Connector
The Amphenol Sine Systems AT04-08PA-RDBLK is a high-performance 8-pin circular connector engineered for reliable connectivity in harsh industrial environments. Its thermoplastic housing and silicone rubber seal provide exceptional protection against moisture, dust, and vibration, meeting IP67 standards. The connector supports a current rating of 13 amps and operates effectively within a temperature range of -55°C to +125°C. It is designed for mating with AT06-08SX* plug series and is RoHS compliant, ensuring environmental responsibility. This connector is ideal for applications in automotive, industrial automation, and power transmission systems where robust and dependable connections are critical.
Amphenol Sine Systems AT0408PARDBLK 8 Pin Connector Specifications:
- Current Rating: 13 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps Current Leakage @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (Mated Condition)
- Mating Cycle Durability: 100 Cycles
- Material (Housing): Thermoplastic
- Material (Seal): Silicone Rubber
- Contact Size: 16
- Wire Range: 16-20 AWG (.053 in) (.120 in)
- Contact Size (22-24 AWG): 16
Buy the AT04-08PA-RDBLK Amphenol Sine Systems 8 Pin Connector | myMectronic
Purchase the Amphenol Sine Systems AT04-08PA-RDBLK connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AT0408PARDBLK?
You can click on the BUY or RFQ button to purchase AT0408PARDBLK from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AT0408PARDBLK?
You can download the AT0408PARDBLK datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AT0408PARDBLK?
Amphenol Sine Systems
