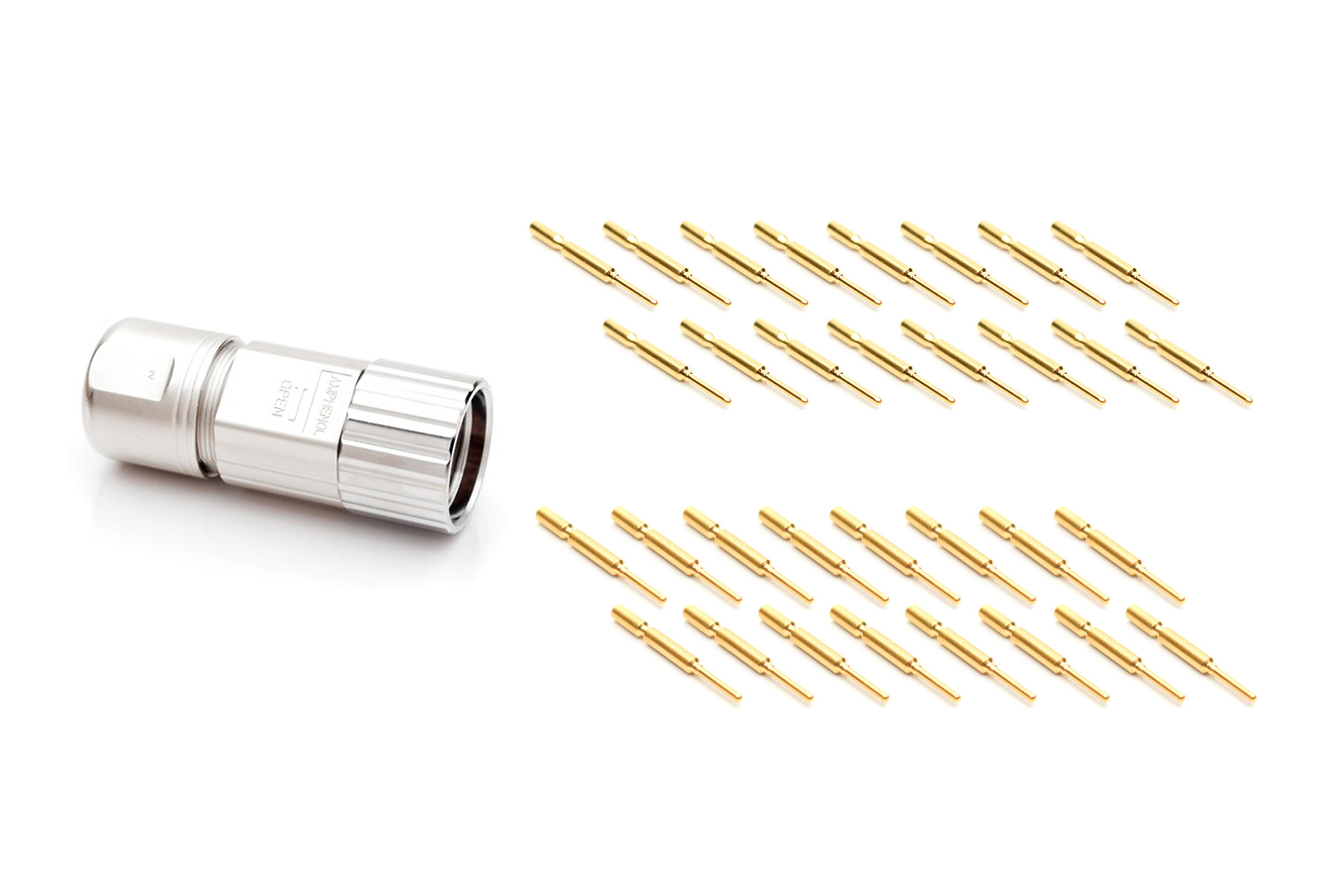

Amphenol Sine Systems MA7CAP1600S3KIT M23A Plug Connector Kit
The Amphenol Sine Systems MA7CAP1600-S3-KIT is a high-quality M23A plug connector kit engineered for reliable power and signal transmission in harsh environments. Constructed with a zinc die-cast housing, nickel plating, and gold-plated contacts, this connector offers excellent corrosion resistance and conductivity. It is designed for applications requiring a high degree of protection, such as industrial machinery, outdoor equipment, and automotive systems. The IP67 rating ensures protection against dust and water ingress, while the RoHS compliance meets environmental standards. This connector kit is a dependable solution for demanding applications requiring robust and reliable connectivity.
Amphenol Sine Systems MA7CAP1600S3KIT M23A Plug Connector Kit Specifications:
- Current Rating: 9 Amps
- Voltage Rating: 125 V AC/DC
- Operating Temperature: -20°C to +130°C
- Dielectric Withstanding Voltage: Less than 2 milliamps @ 2500 Volts AC
- Degree of Protection: IP67 (mated condition)
- Degree of Pollution: 3 per UL840
- Overvoltage Category: III per UL840
- Mating Cycle Durability: >500 cycles
- Material - Insulation Insert: PA66, UL94 V0
- Material - Seal: Viton, EPDM
- Material - Housing Body: Zinc Die Cast, Nickel Plated
- Material - Coupling Nut: Zinc Die Cast, Nickel Plated
- Material - Contact: Copper Alloy, Gold Plated
- Cable OD Range: 4.5~7.5 mm, 7.5~11.0 mm, 11.0~15.0 mm
Buy the MA7CAP1600-S3-KIT Amphenol Sine Systems M23A Plug Connector Kit | myMectronic
Securely purchase the Amphenol Sine Systems MA7CAP1600-S3-KIT online for reliable industrial connectivity.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems MA7CAP1600S3KIT?
You can click on the BUY or RFQ button to purchase MA7CAP1600S3KIT from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part MA7CAP1600S3KIT?
You can download the MA7CAP1600S3KIT datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of MA7CAP1600S3KIT?
Amphenol Sine Systems
