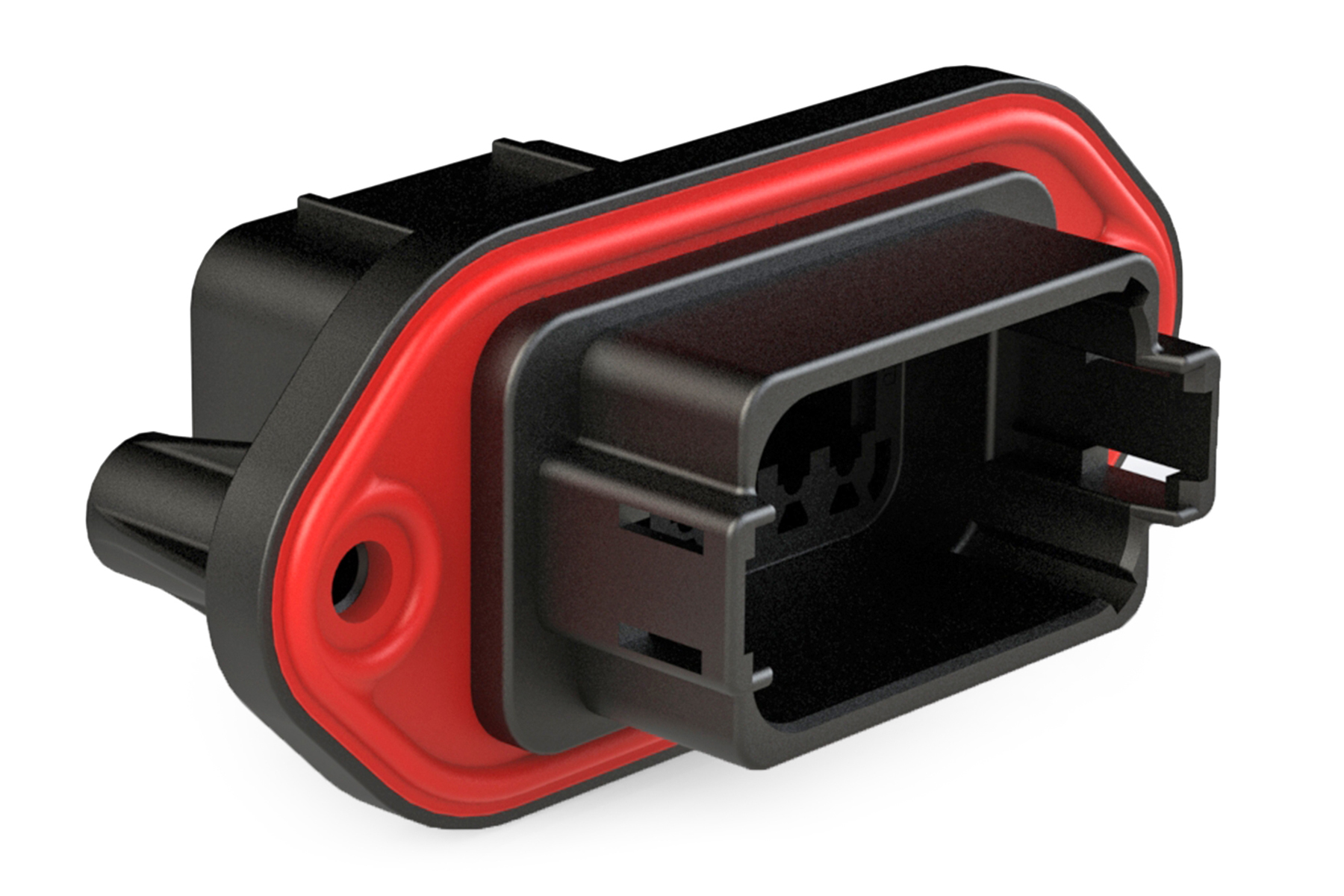

Amphenol Sine Systems AT0412PBPM11 12 Pin Receptacle with Flange
The Amphenol Sine Systems AT04-12PB-PM11 is a 12-pin circular connector designed for demanding industrial applications. Featuring a flange for secure mounting, this connector offers a robust and reliable connection. It is constructed with thermoplastic housing, an end cap, a strain relief cap, and silicone rubber seals. Available with standard or reduced diameter seals, and keyways for specific configurations, this connector is suitable for a wide range of applications requiring a durable and sealed connection. It is RoHS compliant and designed to withstand harsh environments.
Amphenol Sine Systems AT0412PBPM11 12 Pin Receptacle with Flange Specifications:
- Material (Housing): Thermoplastic
- Material (End Cap): Thermoplastic
- Material (Strain Relief Cap): Thermoplastic
- Material (Seals): Silicone Rubber
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (mated condition)
- Mating Cycle Durability: 100 cycles
- Current Rating: 13 Amps
- Contact Size: 16
- Wire Range: 14 - 20 AWG
- Keyway: 2 places
- Seal Options: Standard or Reduced Diameter
Buy the AT04-12PB-PM11 Amphenol Sine Systems 12 Pin Receptacle | myMectronic
Purchase the Amphenol Sine Systems AT04-12PB-PM11 securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AT0412PBPM11?
You can click on the BUY or RFQ button to purchase AT0412PBPM11 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AT0412PBPM11?
You can download the AT0412PBPM11 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AT0412PBPM11?
Amphenol Sine Systems
