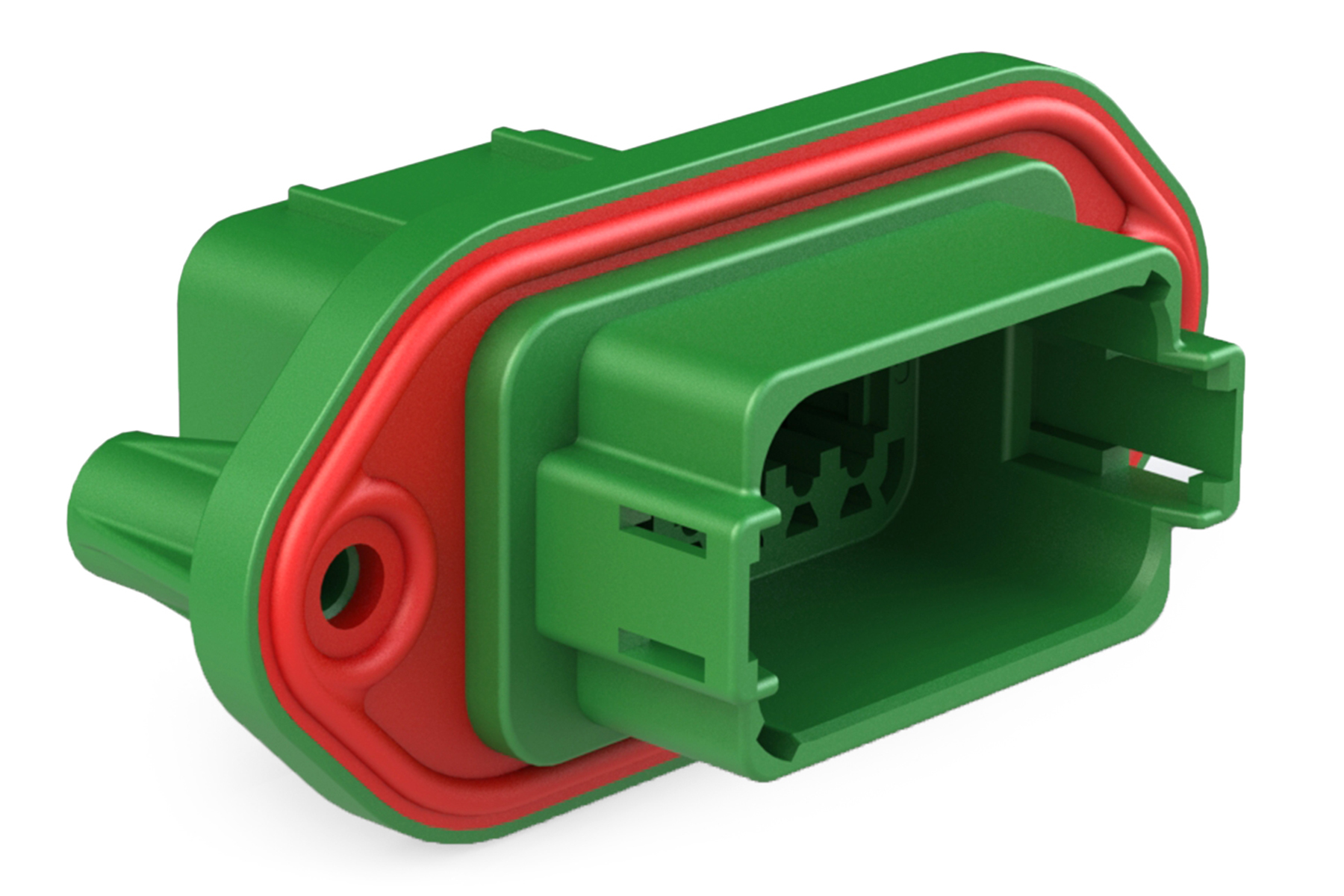

Amphenol Sine Systems AT0412PCPM12 12 Pin Receptacle with Flange
The Amphenol Sine Systems AT04-12PC-PM12 is a robust, circular connector designed for demanding industrial applications. It features a thermoplastic housing, end cap, strain relief cap, and silicone rubber seals, providing excellent environmental protection. Available with various keying options (A, B, C, and D), this connector offers flexibility in system design. It supports a wide range of wire gauges and is RoHS compliant, ensuring environmental responsibility. Typical applications include power distribution, signal transmission, and harsh-environment connectivity in automotive, industrial automation, and medical equipment.
Amphenol Sine Systems AT0412PCPM12 12 Pin Receptacle with Flange Specifications:
- Material: Housing: Thermoplastic, Color: Per Key Option; End Cap: Thermoplastic, Color: Black; Strain Relief Cap: Thermoplastic, Color: Black; Seals: Silicone Rubber, Color: Red
- Current Rating: 13 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (Mated Condition)
- Mating Cycle Durability: 100 Cycles
- Contact Size: 16
- Insulation O.D. Min: 1.35 mm (0.053 in)
- Insulation O.D. Max: 3.05 mm (0.120 in)
- Wire Range: 14 - 20 AWG
- Mounting Plate Size: 25.50
- Recommended Attachment: Hex Washer Head Sheetmetal Screw, 1/2" Long
Buy the AT04-12PC-PM12 Amphenol Sine Systems 12 Pin Receptacle with Flange | myMectronic
Purchase the Amphenol Sine Systems AT04-12PC-PM12 securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AT0412PCPM12?
You can click on the BUY or RFQ button to purchase AT0412PCPM12 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AT0412PCPM12?
You can download the AT0412PCPM12 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AT0412PCPM12?
Amphenol Sine Systems
