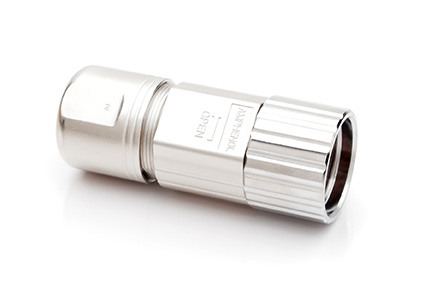

Amphenol Sine Systems MB7CKN0600S1 M23B Plug Straight
The Amphenol Sine Systems MB7CKN0600-S1 is a straight M23B series circular connector, engineered for reliable performance in industrial settings. Constructed with a zinc die-cast housing, nickel plating, and a PA66 insulation insert, it offers exceptional resistance to environmental factors. It is rated for 28 amps and 630V AC/DC, with an operating temperature range of -20°C to +130°C. The IP67 rating ensures protection against dust and water ingress, making it ideal for applications in automation, transportation, and power distribution. Its robust design and high-quality materials guarantee long-term reliability and secure connections.
Amphenol Sine Systems MB7CKN0600S1 M23B Plug Straight Specifications:
- Current Rating: 28 Amps
- Voltage Rating: 630V AC/DC
- Operating Temperature: -20°C to +130°C
- Dielectric Withstanding Voltage: Less than 2 milliamps leakage @ 6000V AC
- Degree of Protection: IP67 (mated condition)
- Degree of Pollution: 3 per UL840
- Overvoltage Category: III per UL840
- Mating Cycle Durability: >500 cycles
- Material - Insulation Insert: PA66, UL94 V0
- Material - Seal: Viton, Silicone, EPDM
- Material - Housing Body: Zinc Die Cast, Nickel Plated
- Material - Coupling Nut: Zinc Die Cast, Nickel Plated
- Cable OD Range: 7.5~11.0 mm
- RoHS Compliant: Yes
Buy the MB7CKN0600-S1 Amphenol Sine Systems M23B Plug Straight | myMectronic
Purchase the Amphenol Sine Systems MB7CKN0600-S1 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems MB7CKN0600S1?
You can click on the BUY or RFQ button to purchase MB7CKN0600S1 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part MB7CKN0600S1?
You can download the MB7CKN0600S1 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of MB7CKN0600S1?
Amphenol Sine Systems
