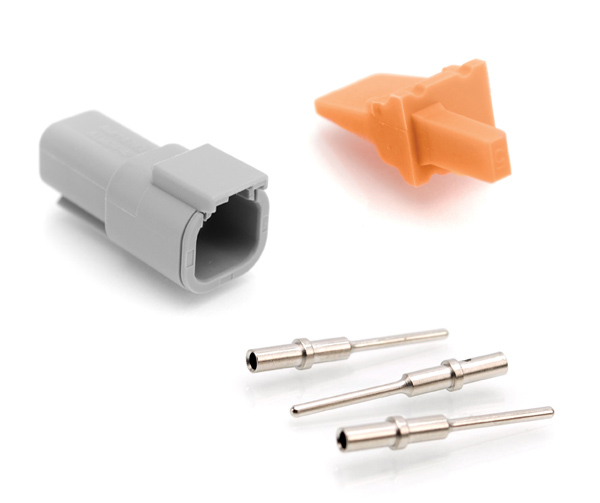

Amphenol Sine Systems ATM044PKIT01 4 Position Receptacle Kit
The Amphenol Sine Systems ATM04-4P-KIT01 is a comprehensive kit containing all necessary components for a 4-position circular connector. Constructed with a durable thermoplastic housing, orange wedgelock, and silicone rubber seals, it ensures a secure and environmentally resistant connection. The copper alloy contacts, nickel-plated for corrosion resistance, provide reliable electrical conductivity. This kit is ideal for applications requiring robust connectivity in demanding environments, such as automotive, industrial automation, and power distribution systems. It is RoHS compliant and designed for easy assembly and integration.
Amphenol Sine Systems ATM044PKIT01 4 Position Receptacle Kit Specifications:
- Current Rating: 7.5 AMPS
- Operating Temperature: -55°C TO +125°C
- Dielectric Withstanding Voltage: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC
- Insulation Resistance: 1000 MEGOHMS MIN @ 25°C
- Contact Millivolt Drop: 60 MILLIVOLT DROP @ 7.5 AMP TEST CURRENT
- Moisture Resistance: IP67 ( MATED CONDITION )
- Connector Mating Cycle Durability: 100 CYCLES
- Material Housing: Thermoplastic, Grey
- Material Wedgelock: Thermoplastic, Orange
- Material Seals: Silicone Rubber
- Material Contacts: Copper Alloy, Nickel Plated
- Wire Range: 20 - 22 AWG
- Contact Size: 1.35 mm
- Max Insulated Wire O.D.: 3.05 mm
