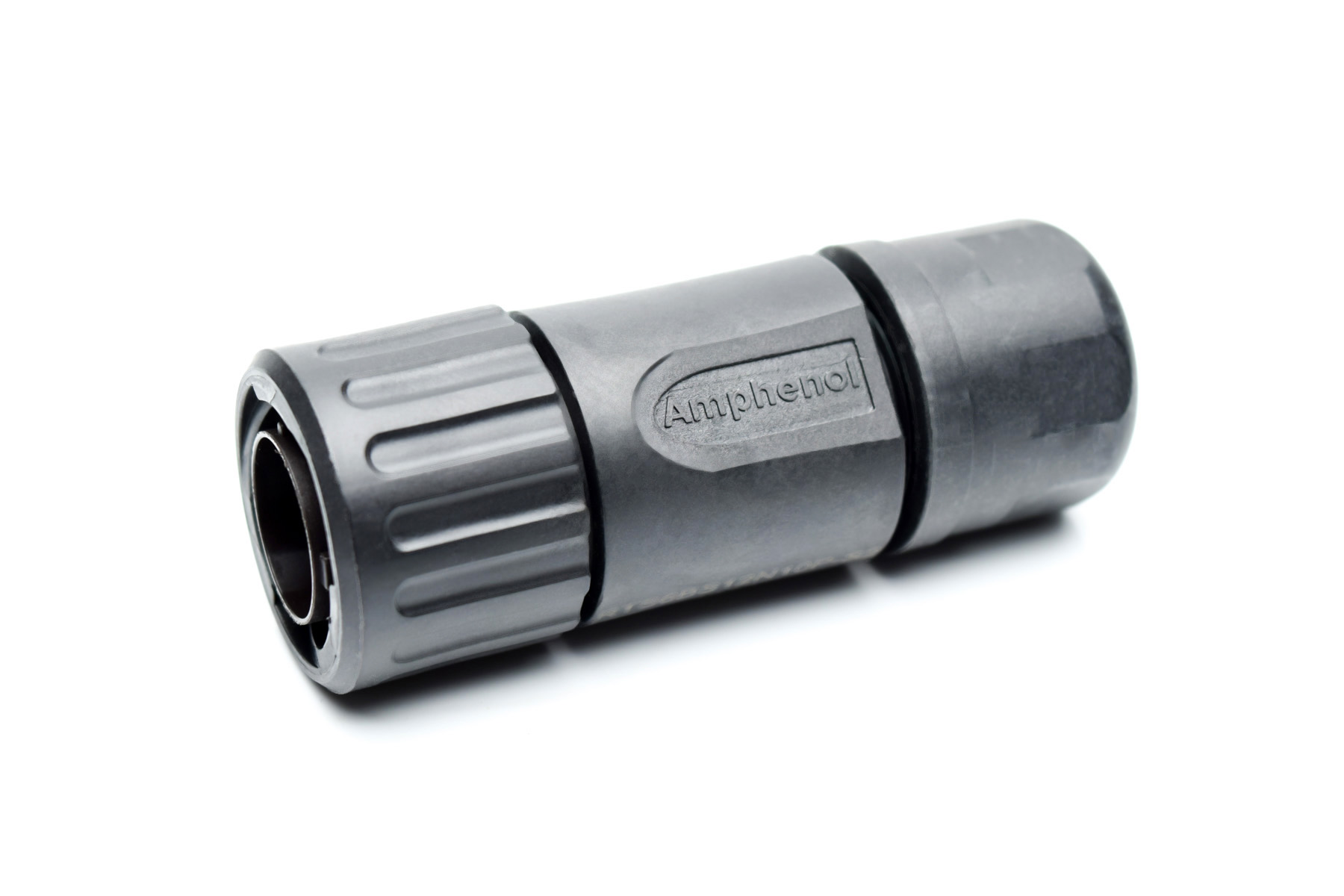

Amphenol Sine Systems RTS6BS12N10P03 Circular Connector Plug
The Amphenol Sine Systems RTS6BS12N10P03 is a robust circular connector plug designed for demanding industrial environments. Constructed with a thermoplastic shell, insert, coupling nut, back shell, clamp nut, clamp ring, and cable seal, it provides excellent environmental protection. The connector's design ensures a secure and reliable connection, making it suitable for applications in automotive, industrial automation, and power transmission systems. Its IP67 and IP69K ratings guarantee protection against dust and water ingress, while the RoHS compliance ensures adherence to environmental regulations. The RTS6BS12N10P03 is a versatile solution for connecting power and signal lines in harsh conditions.
Amphenol Sine Systems RTS6BS12N10P03 Circular Connector Plug Specifications:
- MATERIAL_SHELL: Thermoplastic, UL94 V-0
- MATERIAL_INSERT: Thermoplastic, UL94 V-0
- MATERIAL_COUPLING_NUT: Thermoplastic, UL94 V-0
- MATERIAL_O_RING: NBR or Silicone Rubber
- MATERIAL_WASHER: Silicone Rubber
- MATERIAL_BACK_SHELL: Thermoplastic, UL94 V-0
- MATERIAL_CLAMP_NUT: Thermoplastic, UL94 V-0
- MATERIAL_CLAMP_RING: Thermoplastic, UL94 V-0
- MATERIAL_CABLE_SEAL: EPDM
- RATED_CURRENT: 5A (MAX)
- RATED_VOLTAGE: 250V (AC/DC)
- DIELECTRIC_WITHSTANDING_VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE@2000 VOLTS AC
- INSULATION_RESISTANCE: 5000 MEGOHMS MIN
- IP_CLASS: IP67 AND IP69K IN THE MATED CONDITION
- MATING_CYCLES_DURABILITY: 500 CYCLES MIN
- CONTACT_SIZE: 20
- CABLE_OD_RANGE: 6.0~9.0MM
- OPERATING_TEMPERATURE: -40°C ~ +105°C
- ROHS_COMPLIANT: Yes
