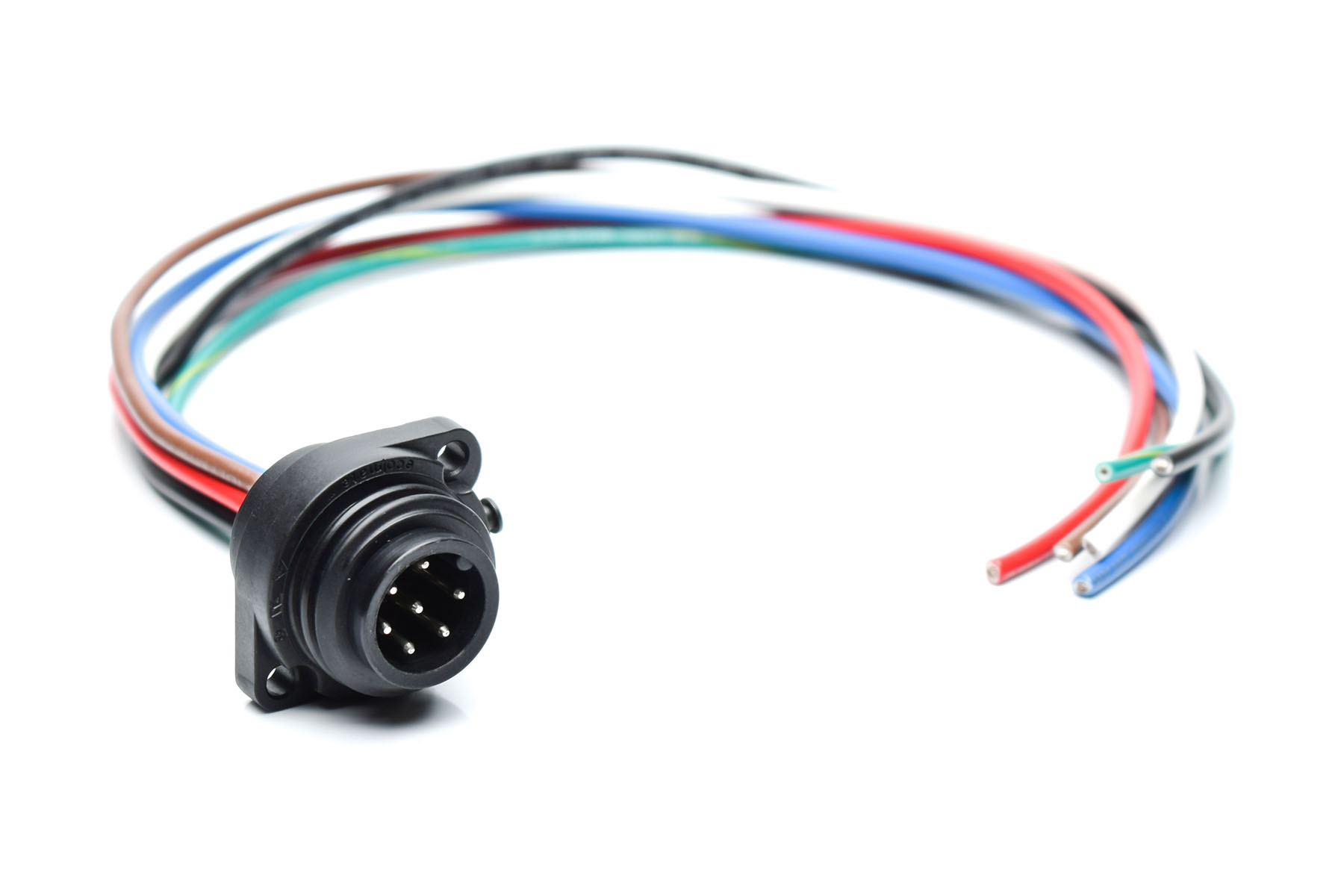

Amphenol Sine Systems CA0161G116005 7 Pos Female Receptacle
The Amphenol Sine Systems CA0161G116005 is a 7-position female circular connector engineered for secure and reliable connections in diverse industrial applications. Constructed with a nylon PA 6.6 coupling nut and insulation insert, and silver-plated contacts, this connector ensures excellent electrical performance and durability. It is designed to withstand harsh environments, offering IP68 protection when mated, making it suitable for applications requiring resistance to dust and water ingress. The connector is compatible with various wire types, including UL listed 1015 and CSA certified TEW, and is rated for a maximum current of 13A and a voltage of 250V AC/DC. Its robust design and reliable performance make it a preferred choice for applications in automotive, industrial equipment, and other demanding sectors.
Amphenol Sine Systems CA0161G116005 7 Pos Female Receptacle Specifications:
- coupling_nut_material: Nylon PA 6.6
- insulation_insert_material: Nylon PA 6.6, UL 94/V-0
- contact_material: Silver Plated
- number_of_conductors: 7
- wire_gauge: 16AWG
- wire_rating: UL LISTED TYPE 1015, CSA CERTIFIED TYPE TEW, FT1 FLAME RATING
- wire_jacket_material: PVC
- maximum_current: 13A
- maximum_voltage: 250V AC/DC
- insulation_resistance_min: 100M Ohms
- rated_impulse_withstand_voltage: 4000V
- temperature_range: -40°C to +100°C
- protection: IP68 (mated condition)
- mating_cycles: >500
- tightening_torque: 0.8Nm
Buy the CA0161G116005 Amphenol Sine Systems 7 Pos Female Receptacle | myMectronic
Purchase the Amphenol Sine Systems CA0161G116005 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems CA0161G116005?
You can click on the BUY or RFQ button to purchase CA0161G116005 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part CA0161G116005?
You can download the CA0161G116005 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of CA0161G116005?
Amphenol Sine Systems
