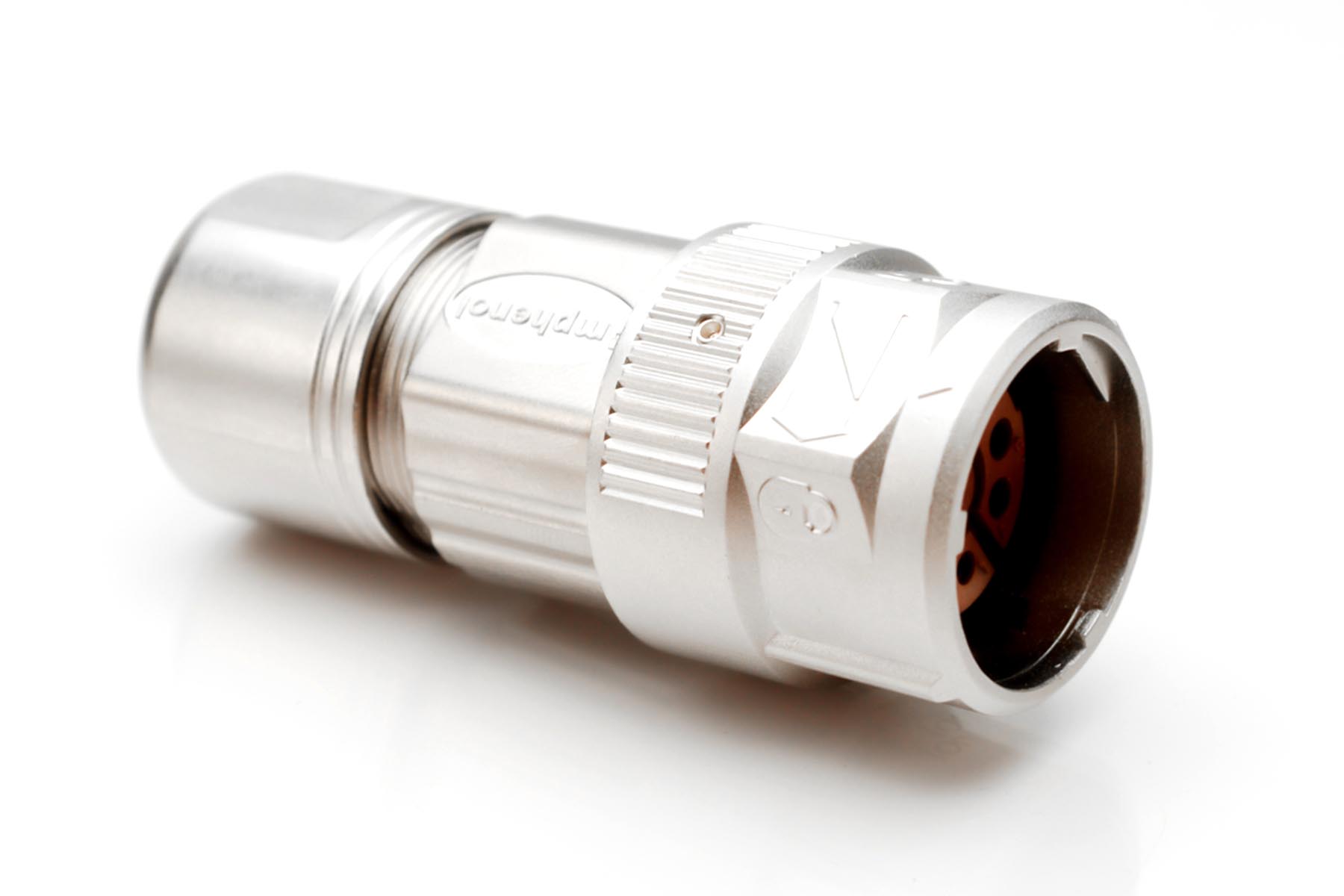

Amphenol Sine Systems MB5CKN0900S2 9 Position Plug Connector
The Amphenol Sine Systems MB5CKN0900-S2 is a high-performance circular connector from the M23 series, engineered for reliable connectivity in harsh environments. This connector boasts a 9-position design, suitable for a variety of signal and power applications. Constructed with a zinc die-cast housing, nickel-plated coupling nut, and PA66 insulation insert, it offers excellent durability and protection. It is rated for high current (30 Amps) and voltage (630V AC/DC) and is IP67 rated, making it ideal for industrial automation, outdoor equipment, and automotive applications. The connector is also RoHS compliant, ensuring environmental responsibility.
Amphenol Sine Systems MB5CKN0900S2 9 Position Plug Connector Specifications:
- Current Rating (Signal): 10 Amps
- Current Rating (Power): 30 Amps
- Voltage Rating (Signal): 250V AC/DC
- Voltage Rating (Power): 630V AC/DC
- Operating Temperature: -20°C to +130°C
- Dielectric Withstanding Voltage: Less than 2 milliamps @ 2500V AC (Signal), 6000V AC (Power)
- Degree of Protection: IP67 (mated condition)
- Degree of Pollution: 3 per UL840
- Overvoltage Category: III per UL840
- Mating Cycle Durability: Greater than 500 cycles
- Material (Insulation Insert): PA66, UL94 V0
- Material (Seal): Viton, Silicone, EPDM
- Material (Housing Body): Zinc Die Cast, Nickel Plated
- Material (Coupling Nut): Copper Alloy, Nickel Plated
- Cable OD Range: 7.5~17.0 mm (various models)
Buy the MB5CKN0900-S2 Amphenol Sine Systems 9 Position Plug Connector | myMectronic
Securely purchase the Amphenol Sine Systems MB5CKN0900-S2 connector and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems MB5CKN0900S2?
You can click on the BUY or RFQ button to purchase MB5CKN0900S2 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part MB5CKN0900S2?
You can download the MB5CKN0900S2 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of MB5CKN0900S2?
Amphenol Sine Systems
