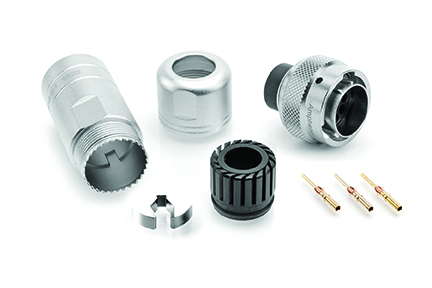

Amphenol Sine Systems RT06104PNHK Eco-Mate Connector Kit
The Amphenol Sine Systems RT06104PNH-K is a circular connector kit designed for demanding industrial environments. It incorporates a zinc die cast housing with nickel plating for corrosion resistance and an IP67 rating for protection against dust and water ingress. The kit includes a wave spring, coupling nut, O-ring, insulation insert, and contact, offering a complete solution for power transmission. Suitable for applications such as automotive, industrial automation, and heavy machinery, this connector provides a reliable and durable connection with a maximum current of 13A and a maximum voltage of 250V AC/DC.
Amphenol Sine Systems RT06104PNHK Eco-Mate Connector Kit Specifications:
- Cord Grip Range: 3mm to 6.5mm
- Contact Barrel Range: 16AWG to 18AWG
- Hand Crimper: MFX-3959
- Pneumatic Crimper: MFX-3960
- Extraction Tool: QXRT16
- Housing Body Material: Zinc Die Cast, Nickel Plated
- Insulation Insert Material: PA66, UL94/V-0
- Contact Material: Brass, Gold Flash Plated
- Seal and O-Ring Material: NBR (Nitrile Butadiene Rubber)
- Temperature Range: -40°C to 105°C
- Protection: IP67 (Mated Condition)
- Mating Cycles: >500
- Current (Max): 13A
- Voltage (Max): 250V AC/DC
- Insulation Resistance (Min): 5000M Ohms
- Test Voltage (Between Contacts): 3050V
- Vibration Resistance: Per MIL-STD-202 Method 204
- Thermal Shock: Per MIL-STD-202 Method 207
- Salt Spray Resistance: Per MIL-STD-202 Method 101
