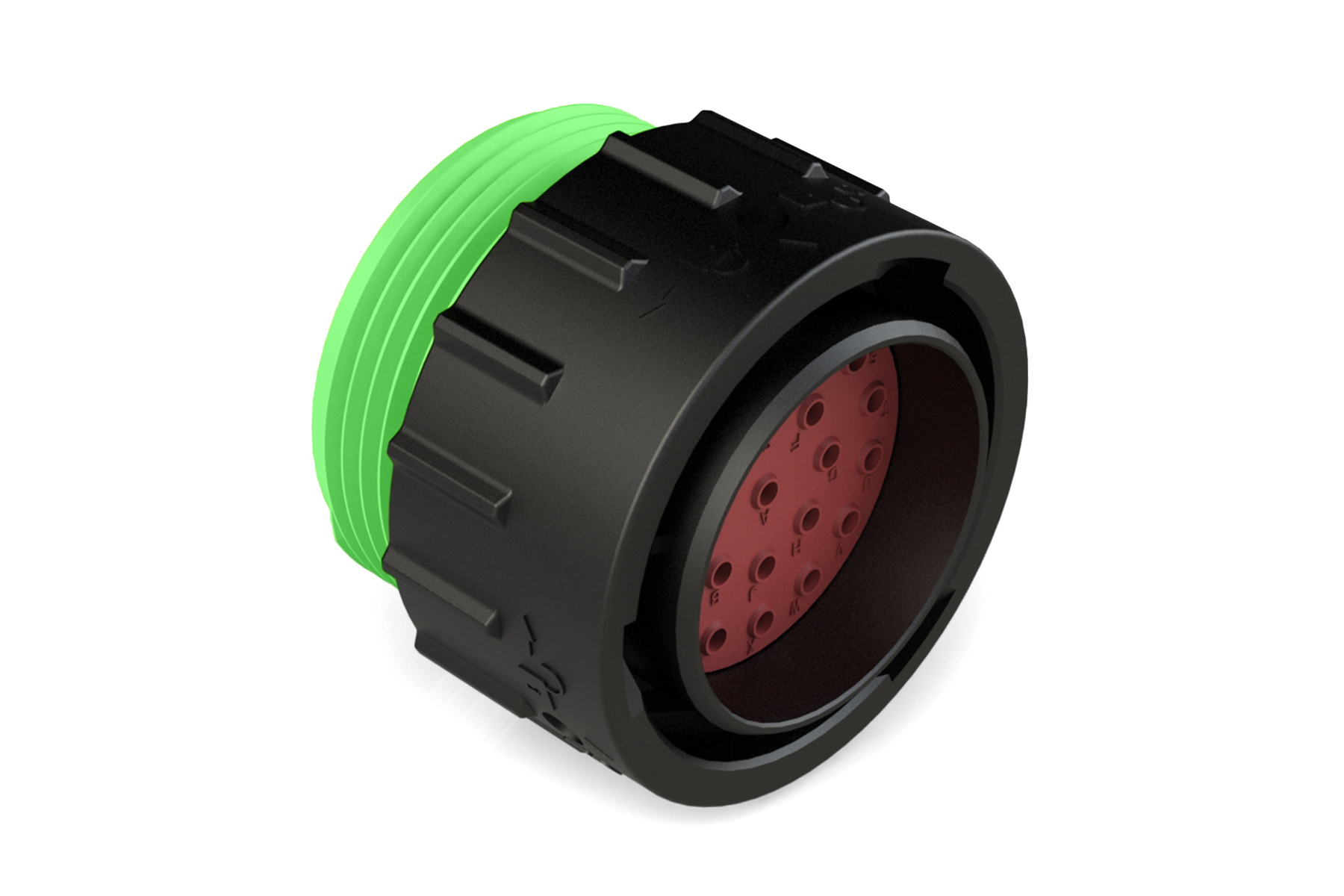

Amphenol Sine Systems AHDP062423PNWTA 24-23 Position Plug Connector
The Amphenol Sine Systems AHDP06-24-23PN-WTA is a high-performance circular connector designed for demanding industrial applications. Its threaded adapter provides a secure connection, while the silicone rubber seal ensures environmental protection. Compliant with RoHS standards, this connector is suitable for a wide range of applications requiring durability and reliability. It is designed to mate with AHDP04-24-23S series connectors.
Amphenol Sine Systems AHDP062423PNWTA 24-23 Position Plug Connector Specifications:
- Operating Temperature: -55℃ to +125℃
- Dielectric Withstanding Voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- Insulation Resistance: 1000 megohm min @ 25℃
- Moisture Resistance: IP67 & IP69K (mated condition)
- Mating Cycle Durability: 100 cycles
- Contact Size: 16
- Wire Range: 14-20 AWG
- Current Rating: 13 Amps
- Min Insul O.D.: 2.54 mm (.100 in)
- Typical Wire Range: 3.40 mm (.134 in)
- Material (Housing): Thermoplastic, Black
- Material (Seal): Silicone Rubber
- Contact Type: Pin
- Number of Positions: 24-23
- RoHS Compliant: Yes
Buy the AHDP06-24-23PN-WTA Amphenol Sine Systems 24-23 Position Plug Connector | myMectronic
Purchase the Amphenol Sine Systems AHDP06-24-23PN-WTA connector securely and reliably online.
