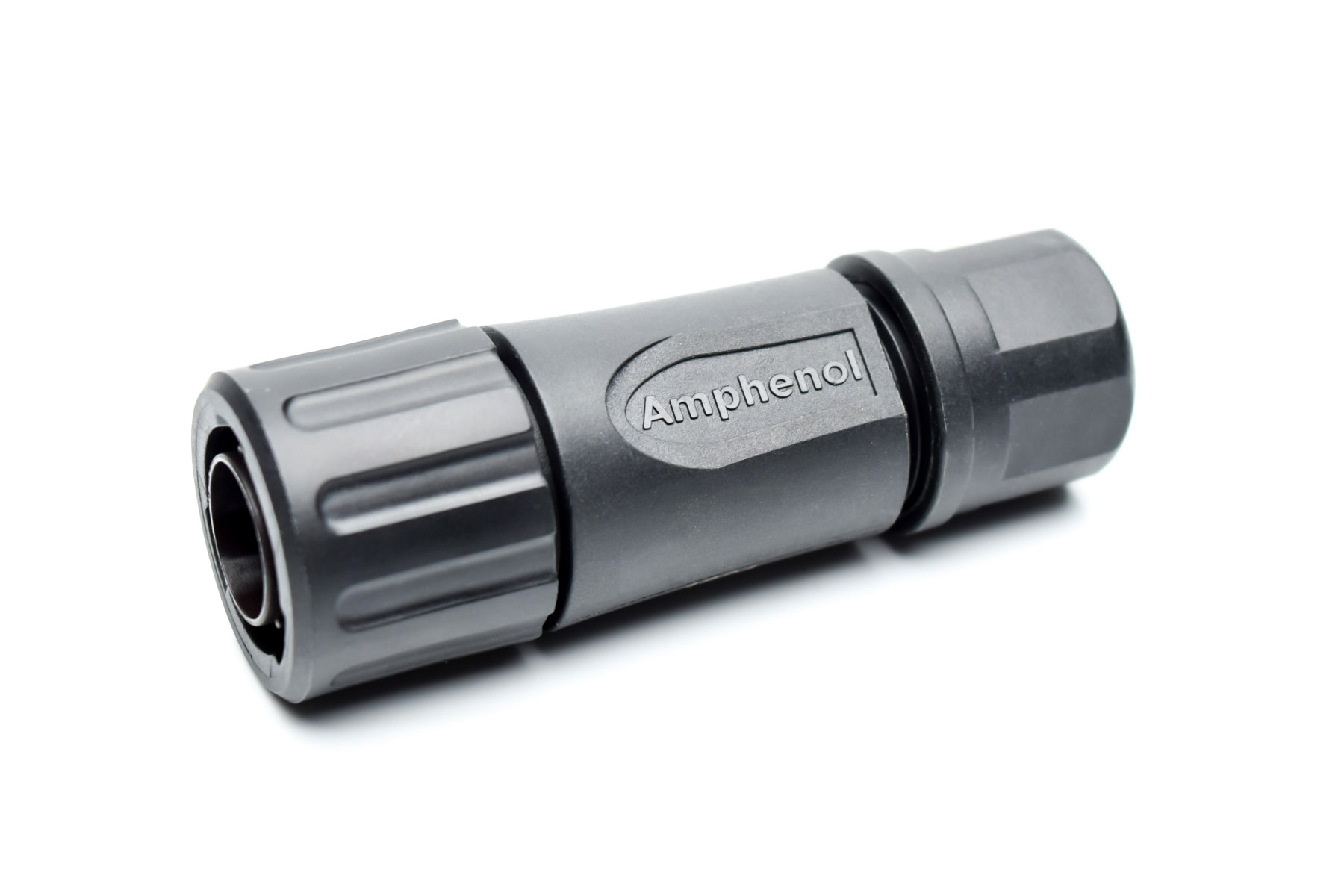

Amphenol Sine Systems RTS6BS10N6P03 6 Position Back Shell
The Amphenol Sine Systems RTS6BS10N6P03 is a robust circular connector backshell designed to provide a secure and reliable connection for various applications. It is compatible with ECO-MATE, PLUG, and Aquarius™ connector systems, offering versatility in system design. The backshell is manufactured to meet stringent quality standards, ensuring durability and performance in demanding environments. Its RoHS compliance aligns with environmental regulations, making it a sustainable choice for modern industrial applications. This component is ideal for applications requiring a compact and reliable connector solution.
Amphenol Sine Systems RTS6BS10N6P03 6 Position Back Shell Specifications:
- material: N/A
- current_rating_stamped: 5A (MAX)
- current_rating_machined: 7.5A (MAX)
- leakage_current: 2 milliamps @ 1500 Volts AC
- cable_od_range_1: 4.0-6.5MM
- cable_od_range_2: 5.0-8.8MM
- cable_od_range_3: 8.8MM
- dimension_a: 7.0MM
- operating_temperature_1: -40°C ~ +105°C
- operating_temperature_2: -40°C ~ +125°C
- revision_a1_date: Aug-18-2016
- revision_a1_description: Released Drawing
- revision_a2_date: Jun-20-2017
- revision_a2_description: Update Notes
- revision_a3_date: Mar-16-2018
- revision_a3_description: Update Drawing
- tolerances_1_dec: ±0.08
- tolerances_1_pl: ±0.30
- tolerances_2_pl: ±0.15
- tolerances_fractions: ±1/64
- tolerances_angles: ±1°
Buy the RTS6BS10N6P03 Amphenol Sine Systems 6 Position Back Shell | myMectronic
Purchase the Amphenol Sine Systems RTS6BS10N6P03 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems RTS6BS10N6P03?
You can click on the BUY or RFQ button to purchase RTS6BS10N6P03 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part RTS6BS10N6P03?
You can download the RTS6BS10N6P03 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of RTS6BS10N6P03?
Amphenol Sine Systems
