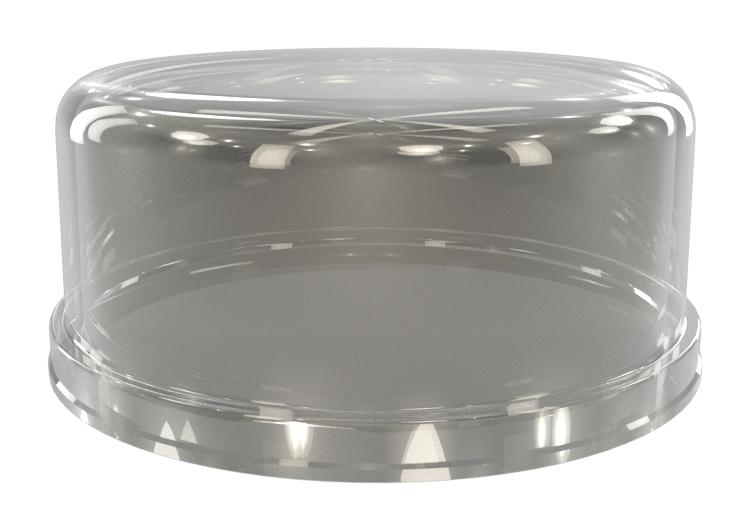

Amphenol FLSC80356000 Outdoor Lighting Module
The FLS Series outdoor lighting components are Zhaga Book 18 compliant, designed for smart city and roadway lighting applications. They include receptacles, bases, and domes with tool-less wire termination, IP65/IP66 sealing, and rugged polycarbonate construction. The receptacle supports 4 contacts for power, DALI, and digital I/O, and mounts easily with a single hole, gasket, and nut. Suitable for harsh environments, these modules enable smart lighting controls, sensor integration, and wireless connectivity, operating efficiently across temperatures from -40°C to +105°C.
Amphenol FLSC80356000 Outdoor Lighting Module Specifications:
- Receptacle / Base: PBT, UL94V-0, black
- Mounting Nut: High temperature thermoplastic
- Dome: Polycarbonate
- Contacts: Phosphor bronze, tin over nickel
- Wire Range: 16-20AWG, strip length 10mm
- Mechanical Shock: 30G’s, 11ms
- Vibration with Load: Per EIA-364-28, Condition 5A
- Durability: 25 mating cycles
- Contact Rating: 1.5A at 250V
- Voltage Rating: 250VAC/DC
- Contact Resistance: 30mΩ max
- Insulation Resistance: 500MΩ min at 500V DC
- Dielectric Withstanding Voltage: 10kVDC
- Operating Temperature: -40°C to +105°C
- Humidity and Salt Spray resistance, thermal shock, and temperature rise tested
- Certifications: UL Pending, RoHS compliant
Buy the Buy Amphenol Zhaga Book 18 Compliant FLS Series Part Number FLSC80356000 Online
Purchase the Amphenol FLS Series outdoor lighting modules online today for enhanced durability, easy installation, smart lighting controls, and seamless sensor integration. These Zhaga Book 18 compliant components are ideal for roadway, municipal, and smart city applications. They feature tool-less wire termination for quick setup, IP65/IP66 sealing, and operation across a wide temperature range from -40°C to +105°C, ensuring reliable performance even in harsh environments. Upgrade your outdoor lighting systems now for efficiency and long-term dependability.
Buy Amphenol FLS Series Part Number FLSC80356000 now and experience reliable outdoor lighting solutions with smart control capabilities and rugged sealing.
