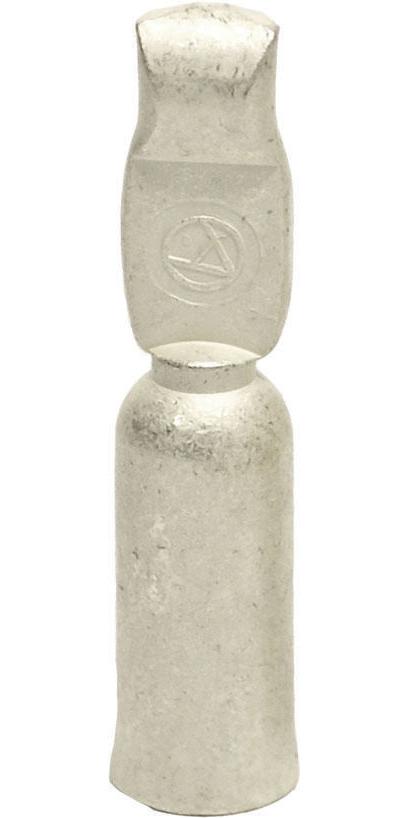

Anderson Power Products 1382BK Powerpole Connectors
Anderson Powerpole connectors provide reliable, cost-effective electrical connections with flexible, stackable designs and color coding for easy identification, ideal for electronic manufacturing, installation, and maintenance. They support high current loads up to 350 amps, have low contact resistance due to silver-plated copper contacts, and are UL rated for hot plugging up to 75 amps. Suitable for power distribution applications, these connectors feature durable construction, multiple configurations, and accessories like mounting clamps and retaining pins for secure stacking. They are designed to withstand extensive mating cycles and operate efficiently in a broad temperature range, making them suitable for demanding electrical and electronic systems.
Anderson Power Products 1382BK Powerpole Connectors Specifications:
- Current Rating: Up to 350 Amps
- Wire Size Range: 10 to 3/0 AWG (5.3 to 85 mm²)
- Voltage Rating: 600 V AC/DC
- Maximum Wire Insulation Diameter: 0.900 inches (22.86 mm)
- Operating Temperature: -20°C to 105°C (-4°F to 221°F)
- Dielectric Withstanding Voltage: 2,200 Volts AC
- Number of Mating Cycles: Up to 10,000 with silver contacts
- Contact Material: Silver plated copper
- Housing Material: Polycarbonate, UL94 V-0 rated
- Protection Rating: IEC 60529 IP10
- Temperature Rise at Full Current: Consult temperature charts for detailed data
- Dimensions: Suitable for wire sizes up to 3/0 AWG, with various accessories available
- UL and CSA Certifications: Rated for hot plugging, ultrasound testing compliant
Buy the Powerpole Series Power Connectors: 1382BK
Discover the high-quality Powerpole connectors designed for reliable electrical connections in various demanding applications. Featuring stackable, color-coded housings and silver-plated copper contacts, these connectors support up to 350 amps and are UL rated for hot plugging up to 75 amps. Their durable construction ensures long service life, with support for extensive mating cycles and broad temperature ranges. Perfect for power distribution, electronic manufacturing, and maintenance, order your Powerpole 1382BK online today for efficient and secure electrical connections.
Get Powerpole 1382BK today—built for high current capacity and long-lasting electrical reliability.
