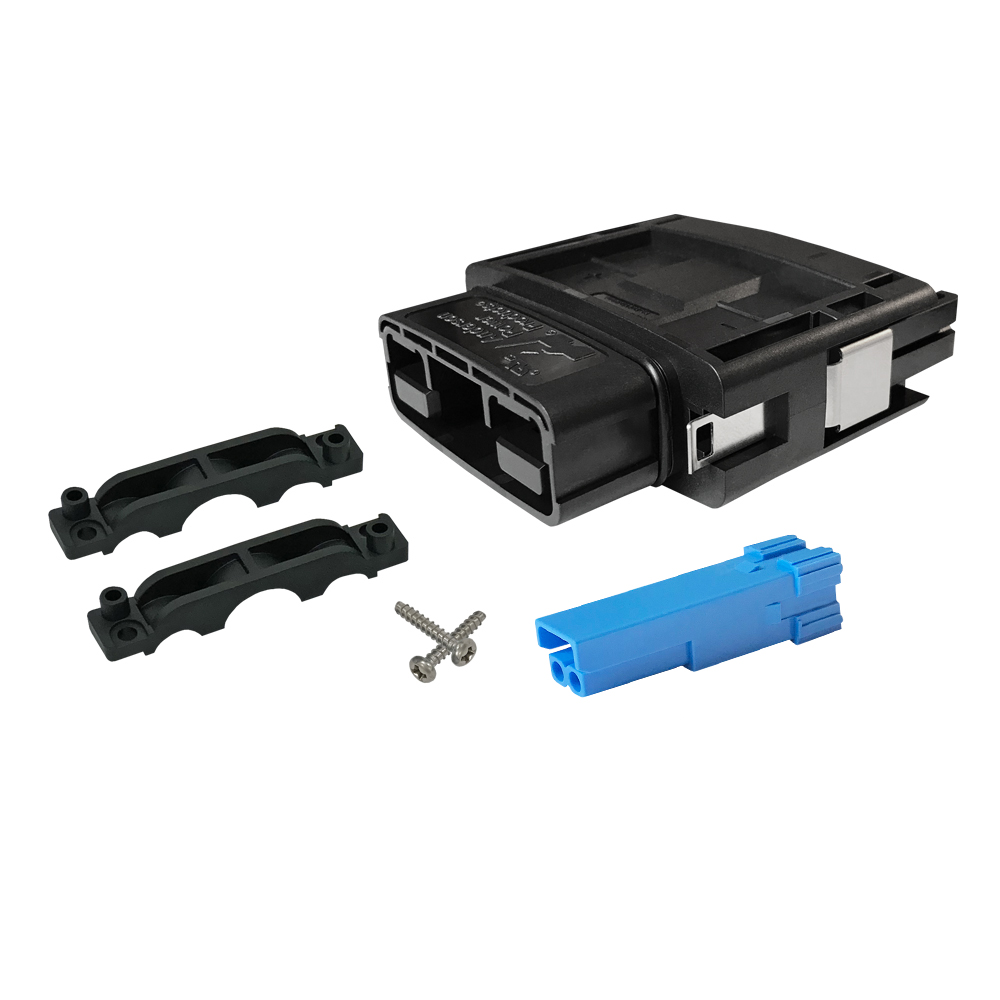

Anderson Power Products SBSX75APLUGKITBLU Sealed Power Connector
The Anderson Power Products SBSX75A sealed waterproof connector is designed for demanding industrial environments. Featuring robust power contacts (up to 135A) and auxiliary contacts (up to 10A), this connector provides a secure and reliable connection. The IP68 weatherproof rating ensures protection against water ingress, making it suitable for outdoor applications in material handling, agriculture, construction, and marine environments. Positive metal latches prevent accidental disconnects, while the built-in cable clamp provides strain relief. Its compact, rugged design and 5,000 mating cycle lifespan contribute to its long-term durability and performance.
Anderson Power Products SBSX75APLUGKITBLU Sealed Power Connector Specifications:
- Current Rating: 140A (UL) for 4 AWG, 100A (UL) for 6 AWG, 95A (UL) for 8 AWG, 75A (UL) for 10 AWG
- Voltage Rating: 600V
- Dielectric Withstanding Voltage: 2,200 Volts AC
- Mating Cycles: 5,000
- Operating Temperature: -20°C to 105°C (-4°F to 221°F)
- IP Rating: IP68
- Wire Size Range (Power Contacts): 10 to 4 AWG (2.5 to 25.0 mm²)
- Wire Size Range (Auxiliary Contacts): 14 to 24 AWG (0.50 to 1.5 mm²)
- Maximum Wire Insulation Diameter: 0.44 AWG (11.18 mm²)
- Material (Housing): PC/PBT
- Material (Latches): Stainless Steel
- Material (Contacts): Silver Plated Copper Alloy
Buy the SBSX75A-PLUG-KIT-BLU ANDERSON POWER PRODUCTS Sealed Power Connector | myMectronic
Purchase the SBSX75A-PLUG-KIT-BLU connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Anderson Power Products SBSX75APLUGKITBLU?
You can click on the BUY or RFQ button to purchase SBSX75APLUGKITBLU from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part SBSX75APLUGKITBLU?
You can download the SBSX75APLUGKITBLU datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of SBSX75APLUGKITBLU?
Anderson Power Products
