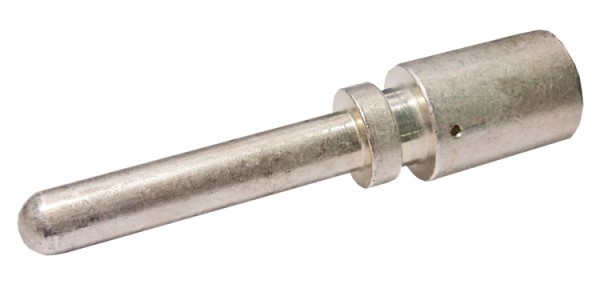

Anderson Power Products 3201050 DIN Style A32 Connector
The Anderson Power Products “A” Series connector is a DIN style connector specifically configured for North American fast battery charging systems. Unlike standard DIN connectors, this series offers a wider selection of contact and crimp tooling suitable for both American Wire Gauge and Metric cable. The connector’s design incorporates a cost-effective contact carrier for easy assembly and reduced component count. Constructed with robust materials, it ensures reliable performance in demanding battery environments. Key features include an impact-resistant nylon housing, support for up to four auxiliary contacts for battery monitoring and charger communications, and a hexagonal voltage key to prevent mismatched voltage connections. This connector is ideal for battery charging applications requiring durability and versatility.
Anderson Power Products 3201050 DIN Style A32 Connector Specifications:
- Current Rating: 800A
- Voltage Rating: 600V
- Mating Cycles: >5000
- Average Mating/Unmating Force: 53 lbf (150 N)
- Degree of Protection: IP23
- Wire Range: #1/0 to #4/0 (50/95)
- Contact Retention: 100 lbf
- Auxiliary Contact Range: #18 to #10 (1.5/6)
- Dielectric Withstanding Voltage: 2200 AC
- Average Contact Resistance: 30 micro-ohms
- Housing Material: PA6 (Nylon) glass filled
- Operating Temperature: -25° to 105°C (-13° to 221°F)
- Contact Material: Copper alloy, silver plate
- Hardware Material: Steel, zinc chromate plate
- Acid Resistance: 1.10 g/cm³
Buy the 320-1050 ANDERSON POWER PRODUCTS DIN Style A32 Connector | myMectronic
Securely purchase the Anderson Power Products 320-1050 connector online for reliable battery charging solutions.
Buy Now
Frequently Asked Questions
Where can I buy Anderson Power Products 3201050?
You can click on the BUY or RFQ button to purchase 3201050 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 3201050?
You can download the 3201050 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 3201050?
Anderson Power Products
