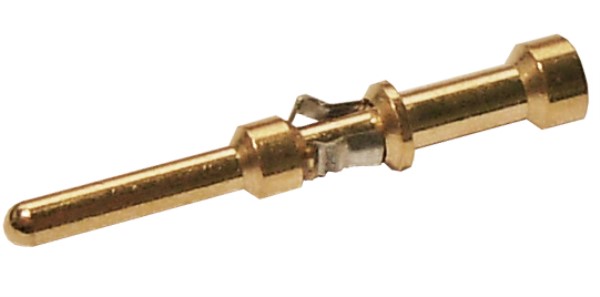

Anderson Power Products PM16P1416A30 SBE320/SBX350 Connector
Anderson Power Products SBE320/SBX350 connectors are designed for robust power distribution and signal transmission in industrial applications. These connectors can integrate up to 8 auxiliary power/signal contacts alongside two primary power circuits, enabling intelligent power switching and interlock loop circuitry. The connectors feature touch-safe housings and silver-plated wire contacts, ensuring durability and reliable performance. They are suitable for applications requiring high current capacity and versatile connectivity.
Anderson Power Products PM16P1416A30 SBE320/SBX350 Connector Specifications:
- Current Rating (Primary Power): 550 Amps (SBX®), 350 Amps (SBE®)
- Current Rating (Powerpole® Auxiliary): 20 Amps
- Current Rating (1x4 Auxiliary): 20 Amps
- Current Rating (PPMX): 5 Amps
- Voltage Rating: 600 VAC/DC
- Dielectric Withstanding Voltage: 2200 Volts AC
- Wire Size Range (Power Contacts): 1/0 to 350 MCM
- Wire Size Range (Auxiliary Contacts): 24 to 10 AWG
- Max Wire Insulation Diameter (Power Contact): 0.82 in / 20.8 mm
- Max Wire Insulation Diameter (Powerpole® Auxiliary): 0.175 in / 4.45 mm
- Max Wire Insulation Diameter (1x4 Auxiliary): 0.14 in / 3.6 mm
- Max Wire Insulation Diameter (PPMX Auxiliary): 0.09 in / 2.29 mm
- Operating Temperature (SBX® Housing): -4 to 221 °F / -20 to 105 °C
- Operating Temperature (SBE® Housing): -40 to 221 °F / -40 to 105 °C
- Matting Cycles (Power Contacts): 10,000
- Matting Cycles (Powerpole® Auxiliary): 10,000 / 1500
- Matting Cycles (1x4 Auxiliary): 10,000
- Matting Cycles (PPMX Auxiliary): 5,000
- Contact Material (Power Contacts): Silver Plated Copper
- Contact Material (Powerpole® Auxiliary): Gold or Tin - Copper Alloy
- Contact Material (1x4 Auxiliary): Pin: Gold Over Nickel - Copper Alloy, Socket: Gold Over Nickel - Beryllium Copper
- Contact Material (PPMX): Gold Plated Copper Alloy
- Housing Material (SBX® & Powerpole®): Polycarbonate
- Housing Material (SBE®, PPMX, 1x4): Polycarbonate / PBT blend
- Flammability Rating (UL): 94 V-0
- Flammability Rating (IEC): 960°C (GWFI), 850°C (GWIT)
