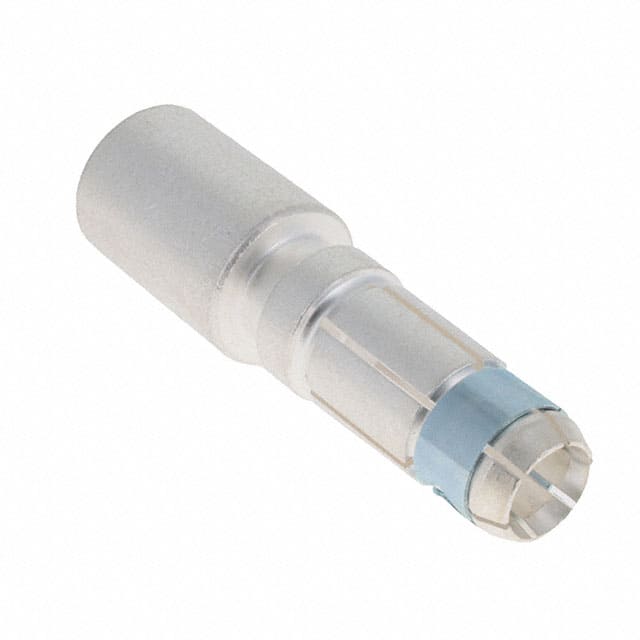

Anderson Power Products 3201104 A32 Female DIN Connector
The Anderson “A” Series connector is specifically engineered for North American fast battery charging systems, providing a robust and reliable connection. Unlike standard DIN connectors, the A32 series offers tooling options compatible with both American Wire Gauge and Metric cables, expanding its versatility. The design incorporates a cost-effective contact carrier for simplified assembly and reduced component count. Constructed with impact-resistant nylon housings and selected materials, the A32 connector ensures long-term performance in demanding battery environments. It is ideal for applications requiring secure and efficient power transfer in battery charging systems.
Anderson Power Products 3201104 A32 Female DIN Connector Specifications:
- Current Rating: Up to 800 Amperes
- Life UL: >5000 mating cycles
- Voltage Rating: 600V
- Mating/Unmating Force: 53 lbf (150 N)
- Degree of Protection: IP23
- Wire Range: #1/0 to #4/0 (50-95 mm²)
- Contact Retention: 100 lbf (445 N)
- Dielectric Withstanding Voltage: 2,200 VAC
- Average Contact Resistance: 30 micro-ohms
- Housing Material: PA6 (Nylon) glass filled
- Operating Temperature: -25° to 105°C (-13° to 221°F)
- Contact Material: Copper alloy, silver plate
- Hardware Material: Steel, zinc chromate plate
