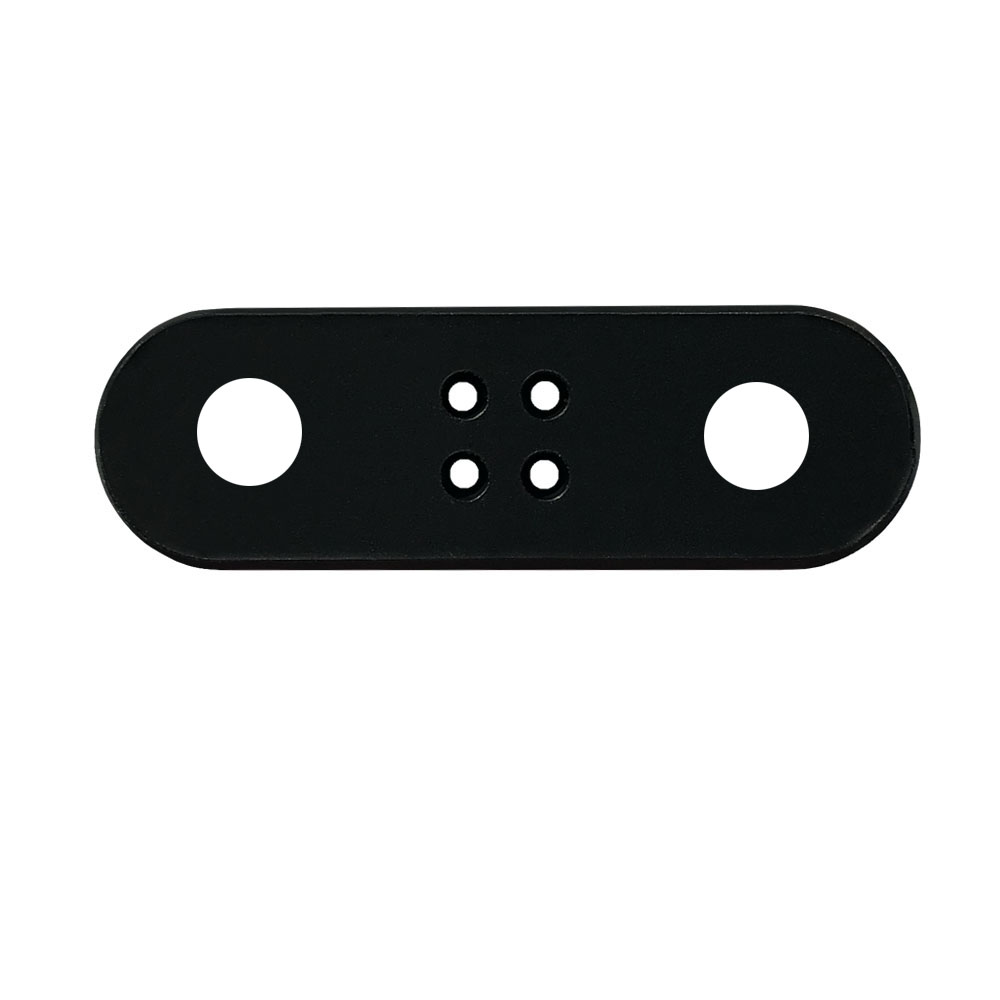

Anderson Power Products D310060 Sealed Power Connector
The Anderson Power Products SBS®X-75A sealed waterproof connector is designed for demanding industrial environments. Featuring robust power contacts (up to 135A) and auxiliary contacts (up to 10A), this connector provides reliable connectivity with a lifespan of up to 5,000 mating cycles. The positive metal latches prevent accidental disconnects, while the built-in cable clamp ensures strain relief. Its IP68 weatherproof rating protects against water ingress, making it suitable for outdoor applications in power equipment, material handling, agriculture, construction, and marine environments. The connector's compact, sleek, and rugged design ensures long-lasting performance.
Anderson Power Products D310060 Sealed Power Connector Specifications:
- Current Rating: 140A (UL) for 4 AWG, 135A (CSA) for 4 AWG
- Voltage Rating: 600V
- Dielectric Withstanding Voltage: 2,200 Volts AC
- Mating Cycles: 5,000
- Operating Temperature: -20°C to 105°C (-4°F to 221°F)
- IP Rating: IP68
- Wire Size Range (Power Contacts): 10 to 4 AWG (2.5 to 25.0 mm²)
- Wire Size Range (Auxiliary Contacts): 14 to 24 AWG (0.50 to 1.5 mm²)
- Material (Housing): PC/PBT
- Material (Latches): Stainless Steel
- Material (Power Contacts): Silver Plated Copper Alloy
Buy the D-310-060 ANDERSON POWER PRODUCTS Sealed Power Connector | myMectronic
Purchase the Anderson Power Products D-310-060 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Anderson Power Products D310060?
You can click on the BUY or RFQ button to purchase D310060 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part D310060?
You can download the D310060 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of D310060?
Anderson Power Products
