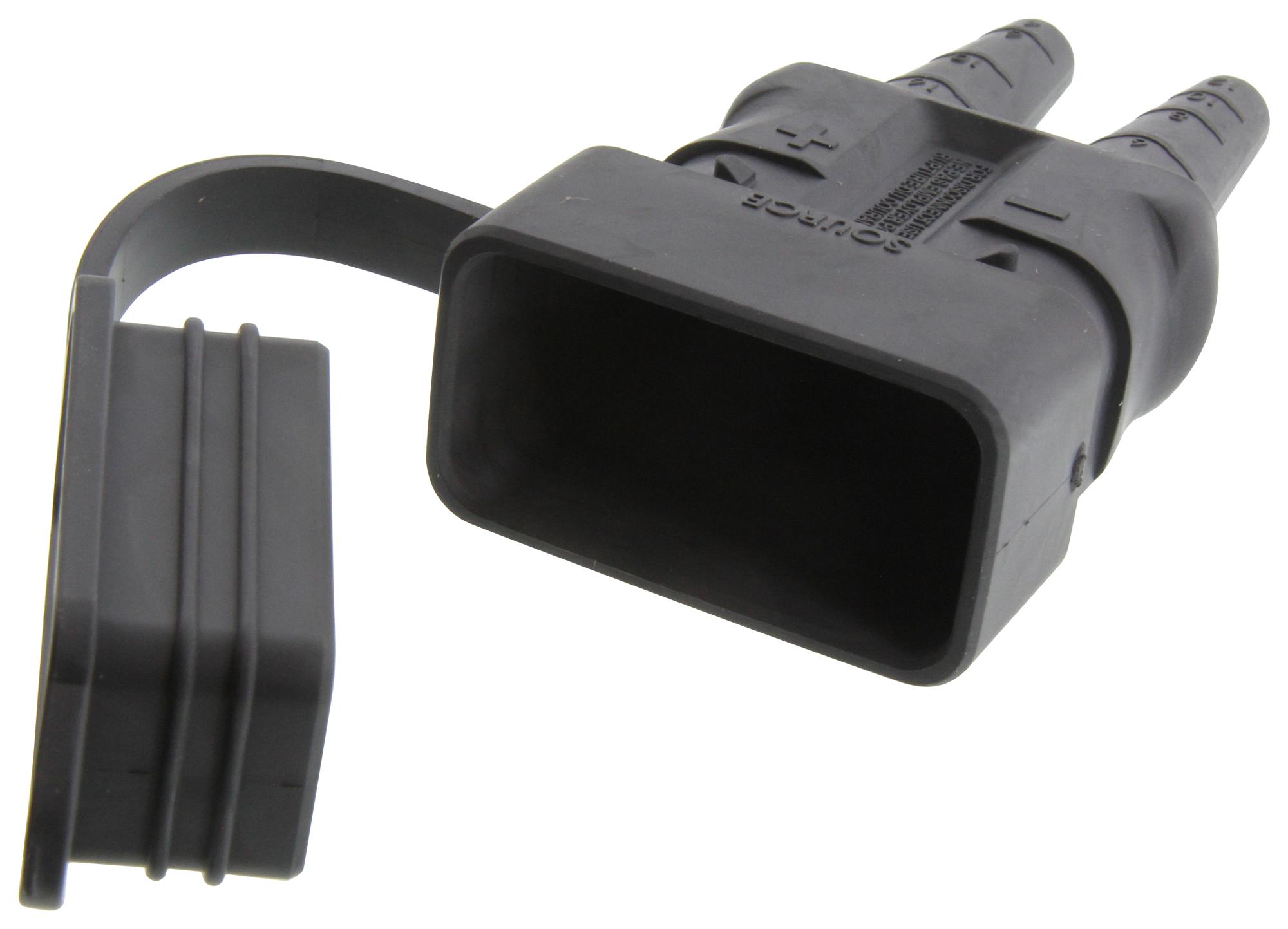

Anderson Power Products 36055P2 Power Connector
The SB50 connectors set a high standard for DC power distribution and battery connections with a robust one-piece plastic housing and stainless steel springs for low-resistance contacts. They support wire sizes from #16 (1.3 mm) to #6 (13.3 mm) and are UL rated for currents up to 120 amps, making them ideal for battery, power, and automated applications. The connectors feature a genderless, keying design, chemical-resistant housing, and options for wire, PCB, or busbar contacts, ensuring reliable performance in various industrial settings.
Anderson Power Products 36055P2 Power Connector Specifications:
- Current Rating: Up to 120 amps
- Wire Sizes: #16 (1.3 mm) to #6 (13.3 mm)
- Housing: One-piece plastic, chemical resistant options
- Housing Flammability Rating: UL 94V-0
- Material: Polycarbonate / PBT blend (chemical resistant)
- Contact Material: Silver or Tin Plated Copper
- Contact Resistance: Low resistance, durable for up to 10,000 mating cycles
- Voltage Rating: 600V AC/DC
- Electrical: UL 1977, CSA certified
- Temperature Range: -40°C to 105°C
- Mating Cycles: 10,000 with wire and PCB contacts
- Fits wire gauges from #16 to #6 AWG
- Appropriate for hot plugging up to 50A
- Meets IEC 60950-1 pollution degree 2
- Standard and chemical-resistant housings with color coding
- Mating force varies from low to high force depending on contact type
- Includes accessories like T-handles, dust covers, environmental boots, guide housings, cable clamps, and reducing bushings
Buy the Anderson SB50 – Reliable Connectors for Industrial Applications
Discover the robust and versatile SB50 power connectors designed for industrial applications. Engineered for up to 120A current with low resistance, these connectors feature a durable plastic housing and corrosion-resistant contacts. Ideal for battery power, DC distribution, and automation systems, they support wire sizes from #16 to #6 AWG and are UL rated for safety and performance. Mating with a genderless, keying design, SB50 connectors ensure safe, reliable, and high-performance connections in demanding environments. Order online today for convenient, fast delivery.
Buy Anderson SB50 connectors now and experience unmatched reliability, high current capacity, and versatile use in power and battery systems.
Frequently Asked Questions
Where can I buy Anderson Power Products 36055P2?
You can click on the BUY or RFQ button to purchase 36055P2 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 36055P2?
You can download the 36055P2 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 36055P2?
Anderson Power Products
