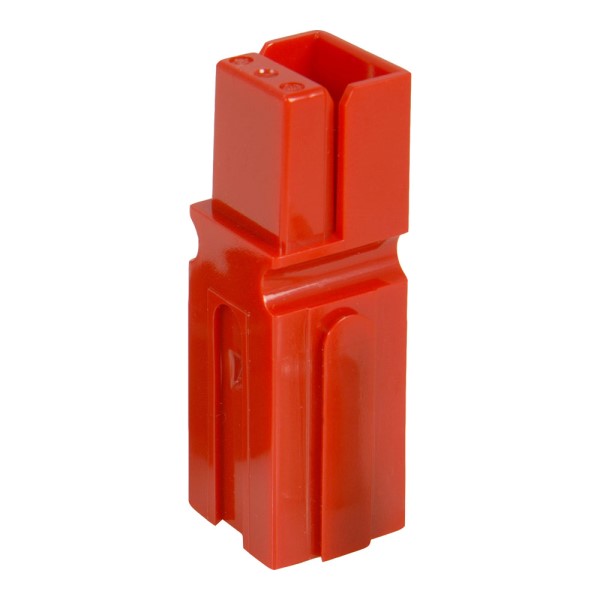

Anderson Power Products 5916G7 Powerpole Connector Housings
The Powerpole® PP75 connector housings from Anderson Power Products are designed for versatile electrical connections, including wire-to-wire, wire-to-board, and wire-to-busbar. Capable of handling wire sizes up to #6 AWG (13.3 mm), these housings support power capacities up to 120 amps per pole. They feature locking dovetails and chemical resistance for industrial environments, with options for stacking and secure mounting. Components include standard, chemical resistant, locking, premate ground, and guide housings, offering comprehensive solutions for electrical system assembly and maintenance.
Anderson Power Products 5916G7 Powerpole Connector Housings Specifications:
- Current Rating: 120 Amperes (Wire to Wire & Busbar), 55 Amperes (Wire to PCB)
- Voltage Rating: 600 V AC/DC
- Wire Size Range: #16 AWG (1.3 mm) to #6 AWG (13.3 mm)
- Maximum Insulation Diameter: 0.437 inches (11.1 mm)
- Operating Temperature: -40°C to +105°C
- Materials: Housing made from Polycarbonate resin, chemical resistant versions from PBT/PC blend
- Number of Mating Cycles: 10,000 (Wire contacts), 1,500 (PCB contacts)
- Dielectric Withstanding Voltage: 2,200 Volts AC
- Mechanical: UL Listed, CSA Certified, Flame rating UL 94V-0
- Dimensions: Vary by housing type; standard housing supports 2-pole configurations with stacking features
- Fastening: Plated Through Hole Mounting, Snap-in, or Surface Mount options
- Compliance: IEC 60950-1, Pollution Degree 2
- Environmental: Suitable for industrial solvents, with chemical resistant versions rated for -40°C
Buy the Buy Anderson Power Products Powerpole Connector Housings Part Number 5916G7 Online
Discover the reliable and versatile Powerpole connector housings from Anderson Power Products. Designed for wire, PCB, and busbar applications, supporting up to 120 amps per pole, with options for chemical resistance and locking features. Their easy-to-mate design and robust construction make them ideal for industrial and automation systems. Secure your electrical connections efficiently and safely by ordering online today. With comprehensive options and durable materials, these housings are perfect for all your power distribution needs, ensuring you meet safety standards and performance demands effortlessly.
Order your Anderson Power Products Powerpole Connector Housings Part Number 5916G7 today and ensure reliable, versatile electrical connections for your projects.
Frequently Asked Questions
Where can I buy Anderson Power Products 5916G7?
You can click on the BUY or RFQ button to purchase 5916G7 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 5916G7?
You can download the 5916G7 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 5916G7?
Anderson Power Products
