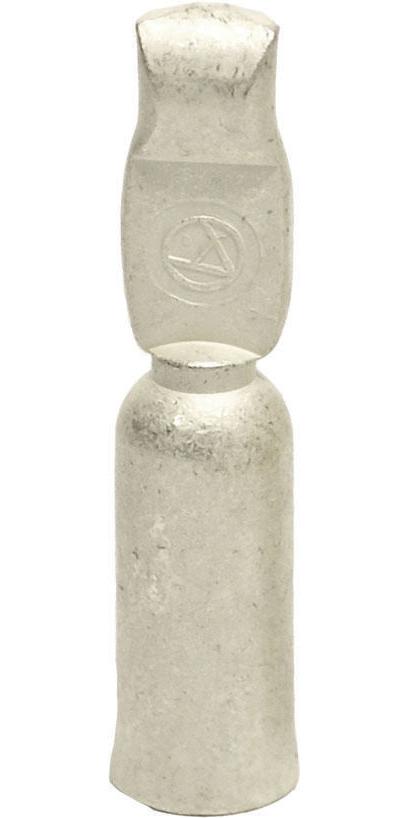

Anderson Power Products 5900BK Power Connector
The innovative Anderson SB 50 connectors offer cost-effective reliability, design flexibility, and safety for manufacturing, installation, and maintenance of electrical systems, supporting currents up to 120 amps. Designed with low resistance silver or tin plated copper contacts, they are suitable for wire sizes from #16 to #6 AWG. The connectors feature a one-piece plastic housing, UL ratings for hot plugging up to 50 amps, and versatile options such as chemical-resistant housings, environmental boots, and accessories like dust covers, handles, and guide housings. These connectors ensure safe, durable, and efficient power connections in various applications.
Anderson Power Products 5900BK Power Connector Specifications:
- Current Rating: Up to 120 amps
- Wire Size Range: #16 to #6 AWG (1.3 mm to 13.3 mm)
- Voltage Rating: 600V AC/DC
- Operating Temperature: -40°C to +105°C
- Maximum Mating Cycles: 10,000 with wire contacts, 1,500 with PCB contacts
- Contact Material: Silver or Tin Plated Copper
- Housing Material: Plastic, chemical resistant PBT/PC blend for certain housings
- Mechanical Force: Standard Powerclaw contacts 50 lbf, miniature contacts around 36-54 lbf
- Protection Rating: IP64 with environmental boots, IP10 when unmated
- Dielectric Withstanding Voltage: 2,200 volts AC
- Certifications: UL Listed, CSA Certified
- Pollution Degree: 3
- Dimensions: Varies based on contact type and configuration, typical length approx 0.14-0.22 inches (3.56-5.59 mm)
Buy the Anderson Series SB50 Power Connector: 5900BK
Purchase the Anderson SB50 Power Connector 5900BK online today for efficient, reliable power distribution solutions. Designed to support currents up to 120 amps, it offers versatile housing options, including chemical-resistant and environmental boots. Its low resistance silver or tin plated copper contacts ensure durability and performance over thousands of mating cycles. Perfect for battery, DC power, and industrial applications, this connector provides safe and secure connections, enabling easy mating, unmating, and maintenance. Reliable, versatile, and easy to use—Order now to streamline your power system setup.
Get Anderson SB50 Connector 5900BK today—built for reliable, high-current power connections with versatile accessories and durable design.
