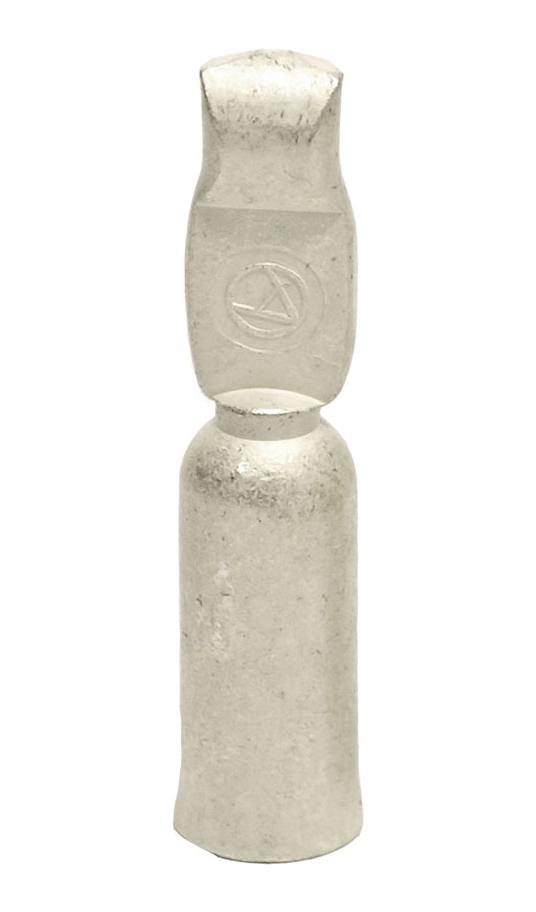

Anderson Power Products 5953 Power Connector
The Anderson SB 50 connectors provide a reliable, cost-effective, and versatile solution for manufacturing, installation, and maintenance in industrial, battery, and DC power distribution applications. Featuring low resistance silver or tin-plated copper contacts, they support UL rated currents up to 120 amps. Designed with a one-piece plastic housing and stainless steel springs, these connectors are suitable for wire sizes from #16 to #6 AWG, with options for chemical resistance and different color keying for easy mating. They are ideal for use in demanding environments requiring durability and safety.
Anderson Power Products 5953 Power Connector Specifications:
- Current Rating: Up to 120 amps
- Wire Size Range: #16 (1.3 mm) to #6 (13.3 mm)
- Voltage Rating: 600 V AC/DC
- Maximum Wire Insulation Diameter: 0.440 in (11.2 mm)
- Operating Temperature: -40°C to 105°C
- Mating Cycles: 10,000 with wire and PCB contacts
- Contact Material: Silver or Tin Plated Copper
- Housing Material: Plastic, PBT/PC blend for chemical resistance
- Color Options: Yellow, Orange, Red, Gray, Blue, Green, Black
- Temperature Rise: Up to 60°C at rated currents
- Dielectric Voltage: 2,200 V AC
- Protection Degree: IP64 with environmental boots
- Connector Features: Load and source configurations, modular accessories
- UL and CSA Rated: For safety and compliance
Buy the Anderson SB50 Reliable Power Connector for Industrial Applications
Enhance your electrical setup with the reliable Anderson SB50 connector, supporting up to 120 amps for versatile power distribution. Designed for durability, safety, and easy installation, this connector is suitable for battery connections, industrial energy systems, and DC power applications. Featuring low resistance contacts and a robust housing, it ensures efficient performance and long service life. Whether for manufacturing or maintenance, choose the Anderson SB50 for a dependable, cost-effective solution that meets demanding industry standards and ensures safe operation.
Order your Anderson Series SB50 connector today and give your power distribution projects the dependable and versatile connection they deserve.
Frequently Asked Questions
Where can I buy Anderson Power Products 5953?
You can click on the BUY or RFQ button to purchase 5953 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 5953?
You can download the 5953 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 5953?
Anderson Power Products
