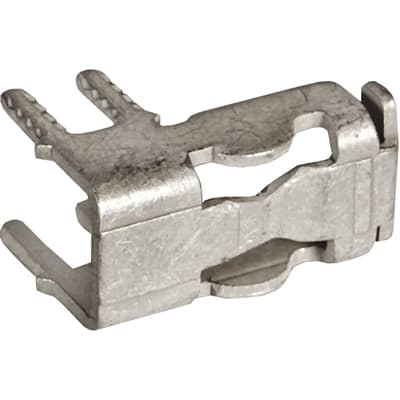

Anderson Power Products PC5934TBK Mini Powerclaw PCB Contact
The Anderson Power Products SB50 PC5934T-BK Mini Powerclaw PCB contact is a versatile solution for DC power distribution and battery connections. Based on a design pioneered in 1953, these connectors set the standard for reliability and performance. They feature a one-piece plastic housing with stainless steel springs to hold low-resistance contacts in place, accommodating wire sizes from #16 to #6. The chemical-resistant PBT/PC blend ensures durability in harsh environments, while the self-polarizing design simplifies integration and prevents incorrect mating. Ideal for applications requiring secure and efficient power transfer.
Anderson Power Products PC5934TBK Mini Powerclaw PCB Contact Specifications:
- Current Rating: 120 Amps (Wire to Wire UL 1977)
- Voltage Rating: 600V AC/DC
- Dielectric Withstanding Voltage: 2200V AC
- Avg. Mated Contact Resistance: 0.200 Milliohms (1 1/4” of #6 AWG wire)
- Material (Housing): Polycarbonate or PBT/PC blend
- Material (Contact): Copper Alloy
- Contact Plating: Silver or Tin over Nickel
- Operating Temperature: -4° to 221°F (-20° to 105°C)
- Wire Size Range: 16 to 6 AWG
- Max. Wire Insulation Diameter: 0.440 in (11.200 mm)
Buy the PC5934T-BK ANDERSON POWER PRODUCTS Mini Powerclaw PCB Contact | myMectronic
Purchase the Anderson Power Products PC5934T-BK Mini Powerclaw PCB Contact securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Anderson Power Products PC5934TBK?
You can click on the BUY or RFQ button to purchase PC5934TBK from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part PC5934TBK?
You can download the PC5934TBK datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of PC5934TBK?
Anderson Power Products
