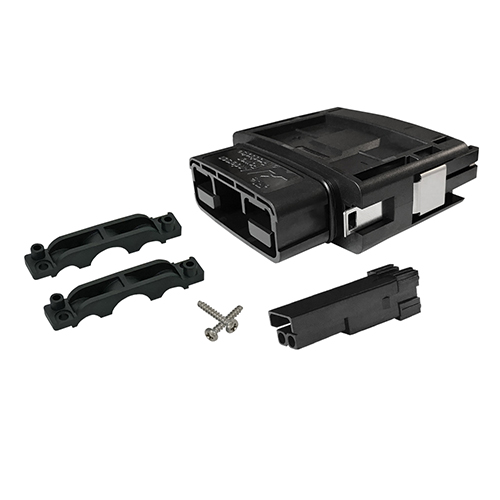

Anderson Power Products SBSX75APLUGKITBLK Sealed Power Connector Kit
The Anderson Power Products SBSX75A sealed waterproof connector kit is designed for demanding industrial applications. It provides up to 135A power handling capacity and up to 4 auxiliary contacts, making it suitable for power equipment, material handling, and marine environments. The IP68 weatherproof rating ensures protection against water ingress, while the positive metal latches and cable clamp enhance reliability and safety. Its compact design and rugged construction make it ideal for outdoor use and harsh conditions.
Anderson Power Products SBSX75APLUGKITBLK Sealed Power Connector Kit Specifications:
- Current Rating: 140A (UL) for 4 AWG, 100A (UL) for 6 AWG, 95A (UL) for 8 AWG, 75A (UL) for 10 AWG
- Voltage Rating: 600V
- Dielectric Withstanding Voltage: 2200V
- Mating Cycles: 5000
- Operating Temperature: -20°C to 105°C (-4°F to 221°F)
- IP Rating: IP68
- Wire Size Range (Power Contacts): 10 to 4 AWG (2.5 to 25.0 mm²)
- Wire Size Range (Auxiliary Contacts): 14 to 24 AWG (0.50 to 1.5 mm²)
- Maximum Wire Insulation Diameter: 0.44 AWG (11.18 mm²)
- Materials (Housing): PC/PBT
- Materials (Latches): Stainless Steel
- Materials (Contacts): Silver Plated Copper Alloy
Buy the SBSX75A-PLUG-KIT-BLK ANDERSON POWER PRODUCTS Sealed Power Connector Kit | myMectronic
Purchase the SBSX75A-PLUG-KIT-BLK Sealed Power Connector Kit securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Anderson Power Products SBSX75APLUGKITBLK?
You can click on the BUY or RFQ button to purchase SBSX75APLUGKITBLK from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part SBSX75APLUGKITBLK?
You can download the SBSX75APLUGKITBLK datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of SBSX75APLUGKITBLK?
Anderson Power Products
