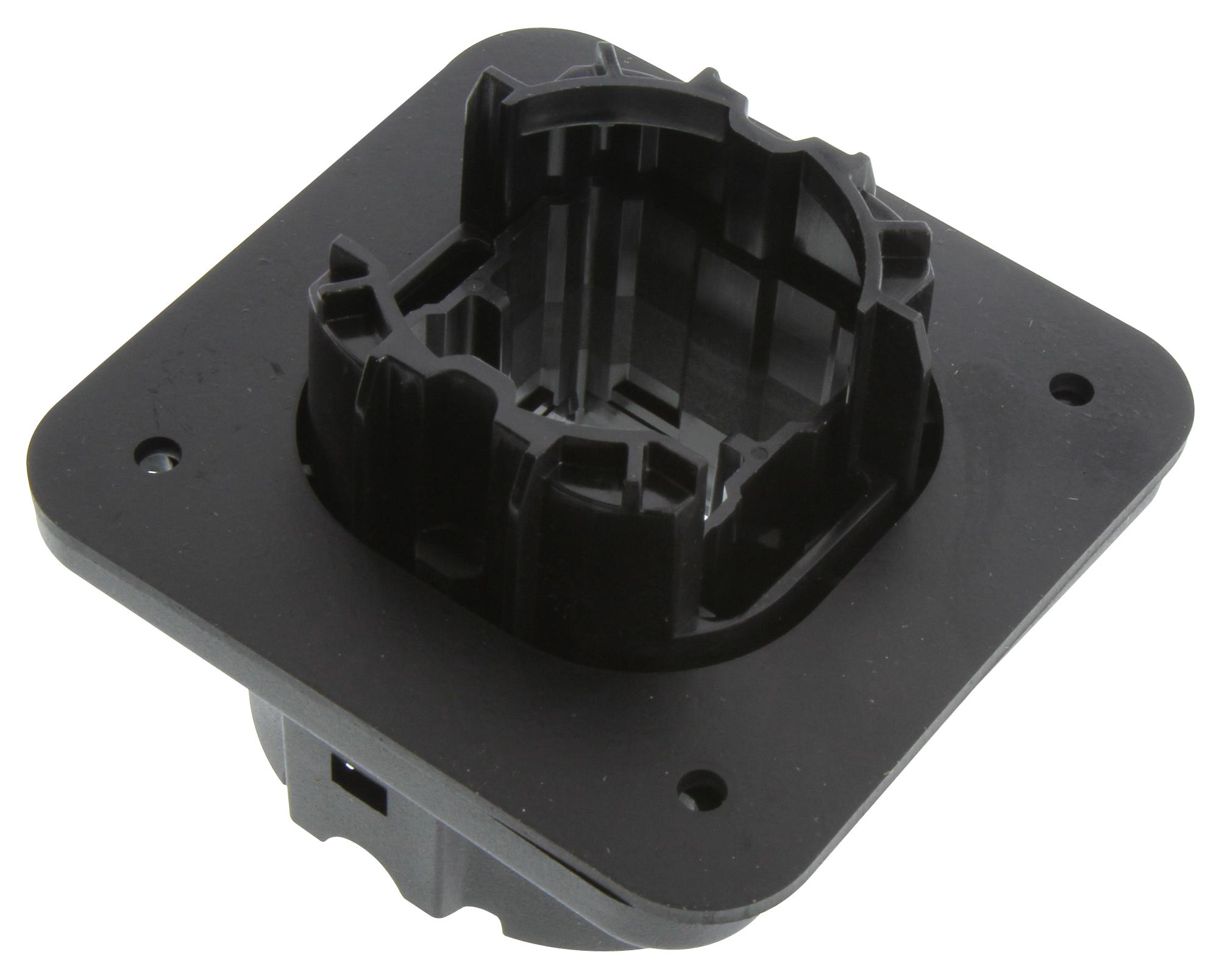

Anderson Power Products SK2076C04 Sealed Power Connector
The SPEC Pak Mid Power is a rugged, environmentally sealed (IP68) connector designed for demanding electrical applications. It leverages Powerpole flat wiping contact technology, supporting power up to 80 amps at 600 volts and signaling. Highly configurable, it accommodates up to four Powerpole 75 contacts, auxiliary signals, and multiple wiring options. Its robust construction with stainless steel latches, sealing glands, and IP68-rated gaskets ensures durability against harsh environments. Suitable for marine, wind power, lighting, transportation, and industrial automation, offering versatile interconnect solutions in a compact, reliable package.
Anderson Power Products SK2076C04 Sealed Power Connector Specifications:
- Current Rating: up to 80 amps
- Voltage Rating: 600 volts
- IP rating: IP68 submersion resistant
- Operating Temperature: -40°C to 105°C
- Material: PBT/PC shell, Copper Alloy contacts
- Contact Plating: Silver/gold over nickel
- Wire Range: 12 to 6 AWG (3.3 to 13.3 mm2)
- Sealing Gland Material: EPDM
- Mating Cycles: Up to 1,500
- Dimensions: Mated length varies, panel cutout approximately 2.36 inches (60 mm), plug length approx 4.4 inches (111 mm)
- Environmental Resistance: Chemical, UV, IP68 submersion, drop, crush, panel strength tested
- Component Options: Inline, Panel Mount, Receptacle shells, covers, and accessories available
Buy the Anderson Series SPEC Pak: SK2076C04
Enhance your electrical system with the rugged and environmentally sealed Anderson Series SPEC Pak SK2076C04 connector. Designed for demanding environments like marine, wind power, and industrial automation, it offers reliable power handling up to 80 amps at 600 volts. With configurable options including auxiliary signals, multiple wiring, and secure sealing, this connector ensures durability and performance. Easy to install, maintain, and suited for harsh conditions, order online now to ensure your projects benefit from top-quality, flexible interconnection solutions.
Order your Anderson Series SPEC Pak SK2076C04 today and give your projects the dependable, sealed interconnect solutions they deserve.
Frequently Asked Questions
Where can I buy Anderson Power Products SK2076C04?
You can click on the BUY or RFQ button to purchase SK2076C04 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part SK2076C04?
You can download the SK2076C04 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of SK2076C04?
Anderson Power Products
