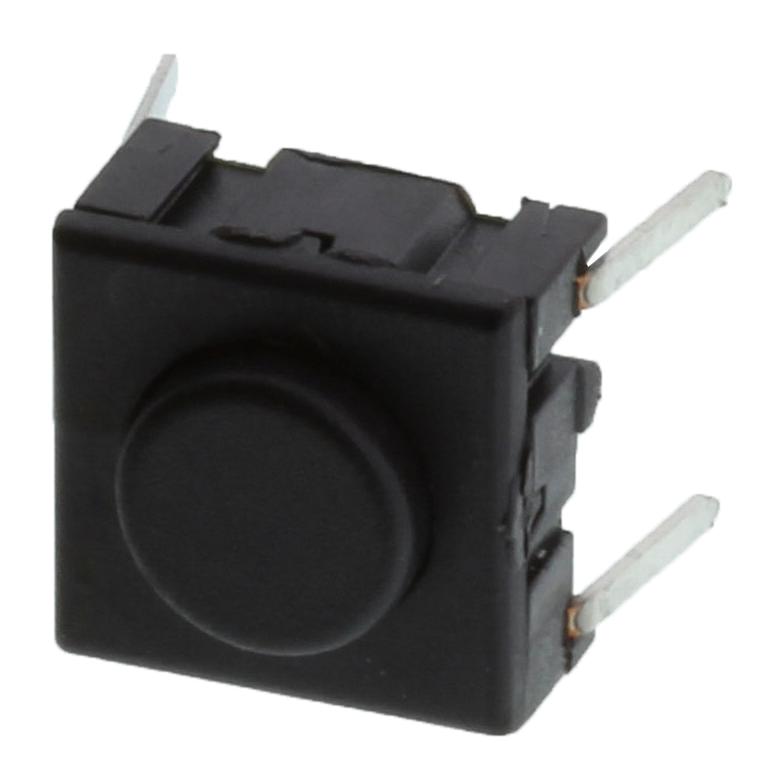

Apem 3CTH9 Basic Switch Module
The APEM 3CTH9 is a versatile basic switch module designed for a wide range of industrial applications. Available in through-hole (TH) or surface mount (SMD) options, this switch offers flexibility in design and integration. It boasts a 50mA/24VDC rating, single-pole momentary action, and a robust IP67 sealing for protection against dust and water ingress. With a lifespan exceeding 10 million operations and a high-temperature range of -40°C to +160°C, the 3CTH9 is built for reliability in demanding environments. It is commonly used in control panels, machinery, and other industrial equipment where a durable and dependable switching solution is required.
Apem 3CTH9 Basic Switch Module Specifications:
- Through-hole: TH or surface mount
- Current/Voltage: 50mA/24VDC
- Pole/Action: Single pole/momentary
- Lifetime: 10,000,000 operations
- Temperature Range: -40/+160C
- Sealing: IP 67
- Actuation Force: 3.5N
- Contact Resistance: <30m Ω - typ. 10m Ω
- Insulation Resistance: >10M Ω
- Recommended Load: 0.5-50mA 24VDC
- Contact Bounce: <2mS
- Standard Actuation Force: 3.5N typ
- Max Actuation Force: 100N for 10 sec
- Keytravel: 1 mm
- Soldering Temperature: max 240°C for<br>max 40 sec or max 260°C for max 30 sec.
- Material - Housing: PPS UL94V0
- Material - Actuator: PPS UL94V0
- Material - Sealing: Silicone rubber
- Material - Contact Spring: Stainless steel
- Material - Fixed Contacts: SnCu + 2µNI + 3µAg
- Material - Terminals: SnCu + 2µNI + 3µSn100
- Material - Polyamide Caps: Max 160°C, UL94V0
